EPC2053

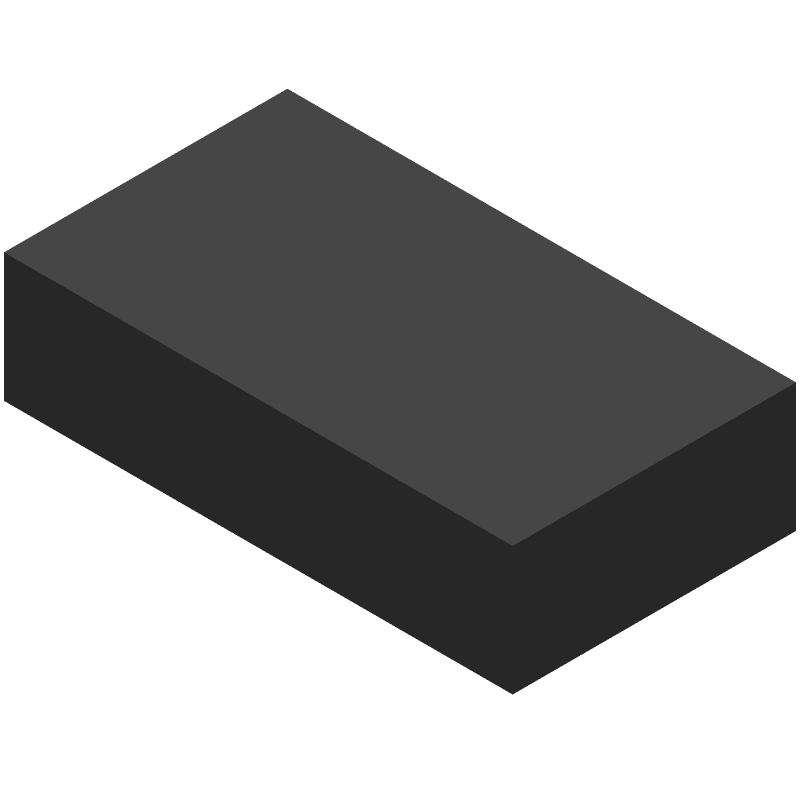

N-Channel Gallium Nitride (GaN) High Electron Mobility Transistor (HEMT) for high-power applications. Features a low on-resistance of 0.0038 ohms and a drain-source voltage rating of 100V. Supports a continuous drain current of 48A. Operates across a temperature range of -40°C to 150°C. This single-element device is presented in a DIE-28 package.
Similar Components
EPC2020
N-Channel Gallium Nitride (GaN) Metal-Oxide Semiconductor Field-Effect Transistor (MOSFET) designed for high-power applications. Features a low on-resistance of 0.0022 ohms and a drain-source voltage rating of 60V. Supports a continuous drain current of 60A. This single-element device is presented as a DIE-30 package with 30 terminals.
EPC2010C
N-channel silicon MOSFET featuring 200V drain-source voltage and 22A continuous drain current. Offers a low on-resistance of 0.025 ohms, enabling efficient power switching. Designed with a 1-element configuration and 7 terminals, operating across a temperature range of -40°C to 150°C. This metal-oxide semiconductor FET is HALOGEN FREE and ROHS COMPLIANT.
EPC2021
N-Channel Gallium Nitride (GaN) Metal-Oxide Semiconductor Field-Effect Transistor (MOSFET) for high-power applications. Features a low on-resistance of 0.0025 ohms and a drain-source voltage rating of 80V. Supports a continuous drain current of 60A. This single-element device is presented as a 30-terminal die.
EPC2014C
N-Channel Gallium Nitride (GaN) Metal-Oxide Semiconductor Field-Effect Transistor (MOSFET) designed for high-performance power applications. Features a continuous drain current (I(D)) of 10A and a drain-source voltage (V(DS)) of 40V, with a low on-resistance (R(DS(on))) of 0.016 ohms. This single-element device utilizes a 5-terminal configuration and is HALOGEN FREE and ROHS COMPLIANT.
About EPC2053
The Efficient Power Conversion EPC2053 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Gallium Nitride (GaN) High Electron Mobility Transistor (HEMT) for high-power applications. Features a low on-resistance of 0.0038 ohms and a drain-source voltage rating of 100V. Supports a continuous drain current of 48A. Operates across a temperature range of -40°C to 150°C. This single-element device is presented in a DIE-28 package.. Key parameters include Max Operating Temperature: 150, Military Spec: False, Min Operating Temperature: -40, Number of Elements: 1, and Number of Terminals: 28. EPC2053 is manufactured by Efficient Power Conversion as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Efficient Power Conversion
- Category
- Semiconductors
Ask AI Assistant
Ask questions about EPC2053 specifications
Click to ask a quick question:
Parameters
| Max Operating Temperature | 150 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Elements | 1 |
| Number of Terminals | 28 |
| REACH | unknown |
| RoHS | Yes |
| Terminal Position | UNSPECIFIED |
