FDP8440

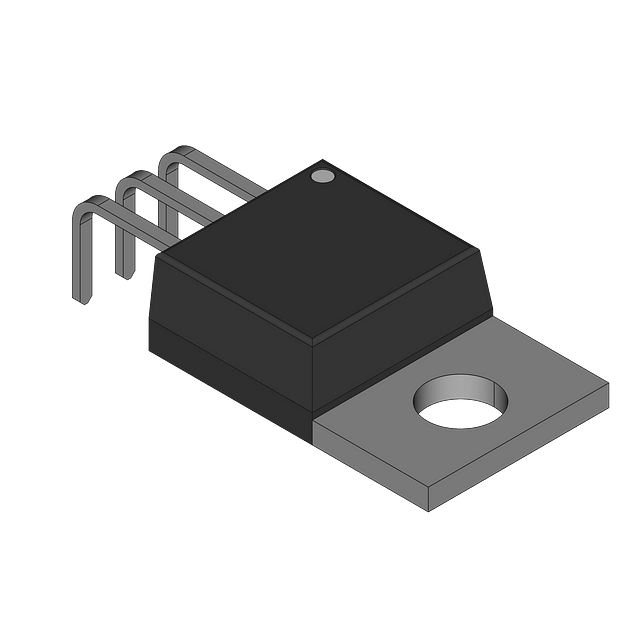

N-Channel Logic Level PowerTrench® MOSFET featuring 40V drain-source breakdown voltage and a maximum continuous drain current of 277A. This single-element transistor offers a low 2.2mΩ drain-source on-resistance. Designed for through-hole mounting in a TO-220AB package, it operates from -55°C to 175°C with a maximum power dissipation of 306W. Key switching characteristics include a 43ns turn-on delay and 290ns fall time.
Similar Components
MMSZ5234B
DIODE ZENER 6.2V 500MW SOD123
TIP42
PNP Bipolar Junction Transistor (BJT) in a TO-220 package, featuring a maximum collector current of 6A and a collector-emitter breakdown voltage of 40V. This through-hole mounted transistor offers a minimum DC current gain (hFE) of 15 and a transition frequency of 3MHz. With a maximum power dissipation of 2W and an operating temperature range of -65°C to 150°C, it is RoHS compliant and lead-free.
SS18
Surface mount general purpose rectifier with 1A average rectified current and 80V repetitive reverse voltage. Features a DO-214AC package, 40A peak non-repetitive surge current, and a maximum operating temperature of 125°C. This lead-free component offers a maximum reverse leakage current of 200uA.
MOC3071SM
Triac Driver Optocoupler, 6-Pin DIP Random-Phase (800 Volt Peak) Triac Driver Optocoupler SMT 6-Pin, 1000-TUBE
MMBF0201NLT1G
Single N-Channel Small Signal Logic Level Power MOSFET 20V, 300mA, 1Ω, SOT-23 (TO-236) 3 LEAD, 3000-REEL
SMBJ15A
Unidirectional transient voltage suppressor diode, 600W peak pulse power, with a 15V DC rated voltage and 24.4V clamping voltage. Features a 16.7V to 18.5V breakdown voltage range and a maximum reverse leakage current of 5uA. Designed for surface mount applications in a DO-214AA package, operating from -55°C to 150°C. RoHS compliant and lead-free.
About FDP8440
The Onsemi FDP8440 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Logic Level PowerTrench® MOSFET featuring 40V drain-source breakdown voltage and a maximum continuous drain current of 277A. This single-element transistor offers a low 2.2mΩ drain-source on-resistance. Designed for through-hole mounting in a TO-220AB package, it operates from -55°C to 175°C with a maximum power dissipation of 306W. Key switching characteristics include a 43ns turn-on delay and 290ns fall time.. Key parameters include Continuous Drain Current (ID): 277A, Drain-source On Resistance-Max: 2.2MR, Drain to Source Breakdown Voltage: 40V, Drain to Source Resistance: 2.2mR, and Drain to Source Voltage (Vdss): 40V. FDP8440 is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about FDP8440 specifications
Click to ask a quick question:
Parameters
| Continuous Drain Current (ID) | 277A |
| Drain-source On Resistance-Max | 2.2MR |
| Drain to Source Breakdown Voltage | 40V |
| Drain to Source Resistance | 2.2mR |
| Drain to Source Voltage (Vdss) | 40V |
| Element Configuration | Single |
| Fall Time | 290ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 16.51mm |
| Input Capacitance | 24.74nF |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 306W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package/Case | TO-220AB |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 306W |
| Radiation Hardening | No |
| Rds On Max | 2.2mR |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Turn-Off Delay Time | 435ns |
| Turn-On Delay Time | 43ns |
| Weight | 1.8g |
| Width | 4.83mm |
