INA129PA

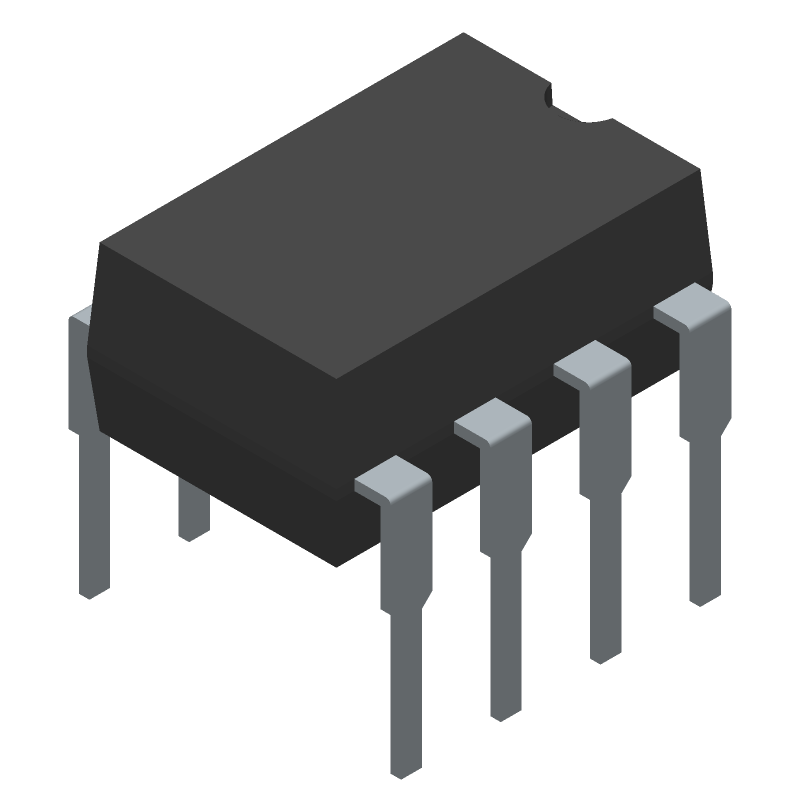

Single-channel instrumentation amplifier featuring a 1.3MHz bandwidth and 80dB voltage gain. Offers 110dB common mode rejection ratio and 125µV input offset voltage. Operates with dual supply voltages up to ±18V and a single supply up to 36V. Input bias current is 10nA with 100GΩ input resistance. Packaged in an 8-pin PDIP, this RoHS compliant component has a maximum operating temperature of 125°C.
Similar Components
CD4071
CMOS OR Gate IC, featuring 4 independent 2-input OR gate elements. This integrated circuit utilizes a push-pull output type and operates within a wide temperature range of -55°C to 125°C. Housed in a 14-pin PDIP (Plastic Dual In-line Package) with through-hole mounting, it offers a 2.54mm pin pitch and conforms to the MS-001AA JEDEC standard. The plastic package measures 19.69mm in length, 6.6mm in width, and has a height ranging from 0.51mm to 5.08mm.
SN65HVD3082EP
RS-485 Transceiver, Half-Duplex, 200Kbps, 5V
LM380N-8/NOPB
1-CH Audio Amp 2.5W Class-AB 8-Pin PDIP 100kHz
CD4011BE
CMOS logic IC featuring four independent 2-input NAND gates. Operates with a supply voltage range of 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. The component boasts a propagation delay of 90ns and is housed in a 14-pin PDIP package with gold contact plating, suitable for through-hole mounting. With a maximum operating temperature of 125°C and RoHS compliance, this integrated circuit is designed for reliable performance.
LF356
JFET input operational amplifier featuring a 5MHz bandwidth and 12V/µs slew rate. This single-channel amplifier offers a 3mV input offset voltage and 30pA input bias current, with a 1.5µs settling time. Designed for through-hole mounting in an 8-PDIP package, it operates from a dual supply voltage range of ±10V to ±18V, with a maximum supply voltage of ±36V. Key performance metrics include 80dB common mode rejection ratio and 80dB power supply rejection ratio.
INA333AIDGKR
Single-channel instrumentation amplifier featuring a 150kHz bandwidth and 100dB common mode rejection ratio. This integrated circuit offers a low input bias current of 200pA and an input offset voltage of 25µV, with a high input resistance of 100GΩ. Operating from a minimum dual supply of 900mV up to a maximum of ±2.75V, or a single supply from 1.8V to 5.5V, it draws a quiescent current of 50µA. The amplifier delivers 40mA output current per channel and is housed in a compact 8-pin VSSOP package, measuring 3mm x 3mm x 0.97mm.
About INA129PA
The Texas Instruments INA129PA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-channel instrumentation amplifier featuring a 1.3MHz bandwidth and 80dB voltage gain. Offers 110dB common mode rejection ratio and 125µV input offset voltage. Operates with dual supply voltages up to ±18V and a single supply up to 36V. Input bias current is 10nA with 100GΩ input resistance. Packaged in an 8-pin PDIP, this RoHS compliant component has a maximum operating temperature of 125°C.. Key parameters include -3db Bandwidth: 1.3MHz, Bandwidth: 1.3MHz, Common Mode Rejection Ratio: 110dB, Dual Supply Voltage: 15V, and Gain Bandwidth Product: 1.3MHz. INA129PA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about INA129PA specifications
Click to ask a quick question:
Parameters
| -3db Bandwidth | 1.3MHz |
| Bandwidth | 1.3MHz |
| Common Mode Rejection Ratio | 110dB |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 125uV |
| Input Resistance | 100GR |
| Input Voltage Noise Density | 8nV/sqrt Hz |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 2.25V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 3 |
| Operating Supply Current | 700uA |
| Output Current per Channel | 15mA |
| Package/Case | P |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Quiescent Current | 700uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 741$12.0273———EachView offer |
| Slew Rate | 4V/µs |
| Supply Current | 750uA |
| Voltage Gain | 80dB |
| Weight | 0.018646oz |
