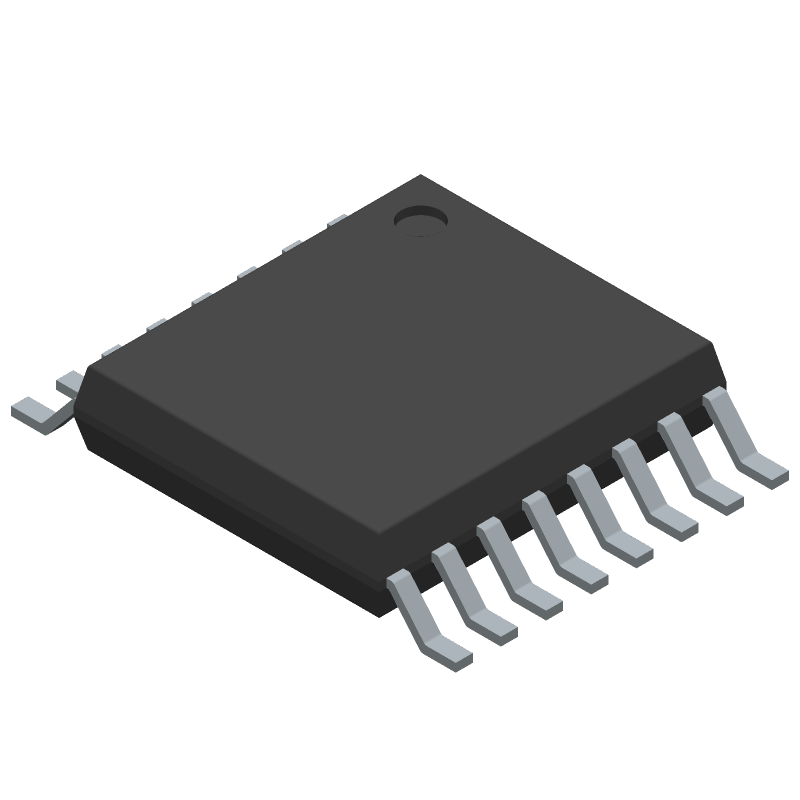

ADS1220IPWR
24-bit delta-sigma Analog-to-Digital Converter (ADC) featuring 4 analog input channels. Operates with a nominal supply voltage of 3.3V, ranging from 2.3V to 3.3V. Supports analog input voltages from -2.5V to 2.5V, with a maximum sampling rate of 2 kSPS. Includes integrated Programmable Gain Amplifier (PGA), Voltage Reference (VREF), and two current digital-to-analog converters (IDACs). Packaged in a 16-TSSOP (R-PDSO-G16) with a width of 4.4mm and length of 5mm. Automotive temperature grade, operating from -40°C to 125°C, with a maximum supply current of 0.49mA.
Similar Components
ADS1256IDBTG4
24-Bit 30kSPS 8-Ch Delta-Sigma ADC, SPI, SSOP
CD4518BPWE4
CMOS Dual BCD Up-Counter, 4-Bit, 8MHz, 18V, TSSOP
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
ISO7741FDWR
Quad-channel, reinforced digital isolator featuring robust EMC performance. This interface circuit operates across a wide temperature range of -55°C to 125°C, with a nominal supply voltage of 2.5V, supporting a range of 2.25V to 5.5V. The device is housed in a 16-terminal SOIC package (JEDEC R-PDSO-G16) with dual terminal positions, measuring 7.5mm in width and 10.3mm in length.
LM380N-8/NOPB
1-CH Audio Amp 2.5W Class-AB 8-Pin PDIP 100kHz
CD4013BE
Dual D-type flip-flop IC featuring positive edge clock triggering and a maximum operating frequency of 24MHz. This CMOS logic component offers two independent flip-flop elements, each with a single input and output. Operating from 3V to 18V, it provides ±4.2mA output current and is housed in a 14-pin PDIP package for through-hole mounting. The device operates across a wide temperature range of -55°C to 125°C and is RoHS compliant.
About ADS1220IPWR
The Texas Instruments ADS1220IPWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 24-bit delta-sigma Analog-to-Digital Converter (ADC) featuring 4 analog input channels. Operates with a nominal supply voltage of 3.3V, ranging from 2.3V to 3.3V. Supports analog input voltages from -2.5V to 2.5V, with a maximum sampling rate of 2 kSPS. Includes integrated Programmable Gain Amplifier (PGA), Voltage Reference (VREF), and two current digital-to-analog converters (IDACs). Packaged in a 16-TSSOP (R-PDSO-G16) with a width of 4.4mm and length of 5mm. Automotive temperature grade, operating from -40°C to 125°C, with a maximum supply current of 0.49mA.. Key parameters include Analog Input Voltage-Max: 2.5, Analog Input Voltage-Min: -2.5, Converter Type: ADC, DELTA-SIGMA, Eccn Code: EAR99, and HTS Code: 8542.39.00.01. ADS1220IPWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about ADS1220IPWR specifications
Click to ask a quick question:
Parameters
| Analog Input Voltage-Max | 2.5 |
| Analog Input Voltage-Min | -2.5 |
| Converter Type | ADC, DELTA-SIGMA |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| JEDEC Package Code | R-PDSO-G16 |
| Lead Free | Yes |
| Length | 5 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Bits | 24 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Pin Count | 16 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Current-Max | 0.49 |
| Supply Voltage-Min | 2.3 |
| Supply Voltage-Nom | 3.3 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Width | 4.4 |
