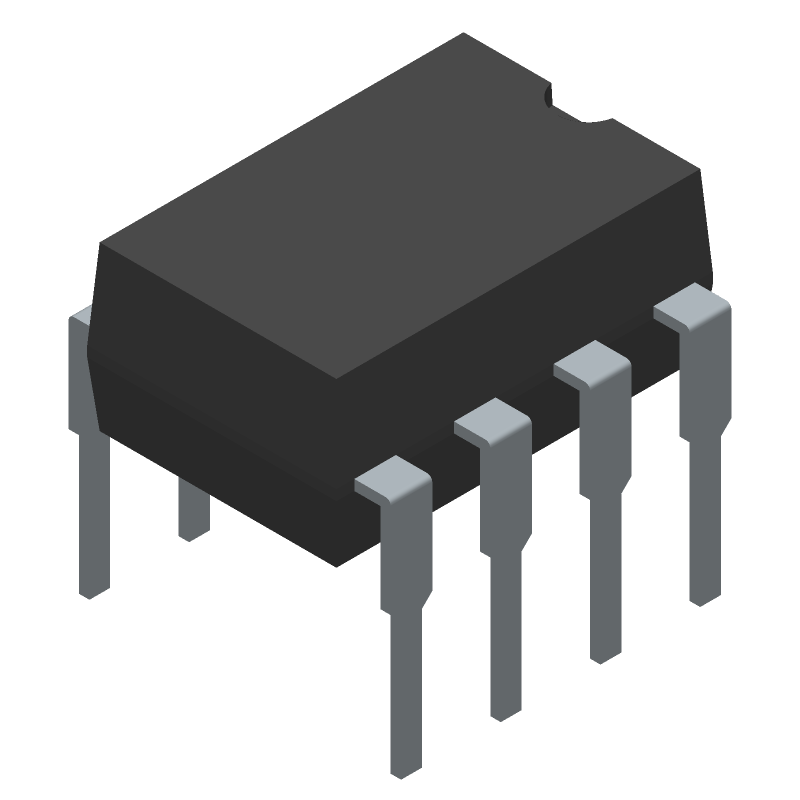

LM311P
High-speed differential comparator IC featuring a single channel and TTL output compatibility. Operates with dual supply voltages from ±1.75V to ±15V, or a single supply from 3.5V to 30V, with a maximum supply current of 7.5mA. Offers a fast response time of 165ns and a propagation delay of 0.115µs. Housed in a 8-PDIP through-hole package, this RoHS compliant component is suitable for general-purpose applications within a 0°C to 70°C operating temperature range.
Similar Components
LM324N
Four-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 100dB voltage gain. This bipolar IC offers a 40mA output current per channel and operates with single or dual supplies from 3V to 32V. Key specifications include an 80dB common mode rejection ratio and a 1.5mA operating supply current. Packaged in a 14-PDIP, this component is suitable for operation between 0°C and 70°C.
LMC6482AIM
Dual operational amplifier featuring rail-to-rail input and output capabilities. Achieves ultra-low input bias current of 0.02pA and a low input offset voltage of 110µV. Offers a 1.5MHz bandwidth and 1.3V/µs slew rate. Operates from 3V to 15.5V supply voltages with a typical 1.3mA supply current. Housed in an 8-SOIC surface mount package.
LM675T/NOPB
Power Op Amp, 5.5MHz BW, 3A Out, TO-220, 8-30V Dual Supply
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
CD4071
CMOS OR Gate IC, featuring 4 independent 2-input OR gate elements. This integrated circuit utilizes a push-pull output type and operates within a wide temperature range of -55°C to 125°C. Housed in a 14-pin PDIP (Plastic Dual In-line Package) with through-hole mounting, it offers a 2.54mm pin pitch and conforms to the MS-001AA JEDEC standard. The plastic package measures 19.69mm in length, 6.6mm in width, and has a height ranging from 0.51mm to 5.08mm.
LMC555
Single timer IC, surface mount, MSOP package. Features a 3MHz frequency, 1.5V to 15V supply voltage range, and 150µA operating supply current. Offers 100mA output current with a 100ns propagation delay and turn-on delay time. Operates from -40°C to 125°C with 555mW power dissipation. RoHS compliant and lead-free.
About LM311P
The Texas Instruments LM311P Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-speed differential comparator IC featuring a single channel and TTL output compatibility. Operates with dual supply voltages from ±1.75V to ±15V, or a single supply from 3.5V to 30V, with a maximum supply current of 7.5mA. Offers a fast response time of 165ns and a propagation delay of 0.115µs. Housed in a 8-PDIP through-hole package, this RoHS compliant component is suitable for general-purpose applications within a 0°C to 70°C operating temperature range.. Key parameters include Dual Supply Voltage: 9V, Height: 4.57mm, Input Bias Current: 250nA, Input Offset Voltage (Vos): 7.5mV, and Lead Free: Lead Free. LM311P is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM311P specifications
Click to ask a quick question:
Parameters
| Dual Supply Voltage | 9V |
| Height | 4.57mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7.5mV |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 15V |
| Max Operating Temperature | 70°C |
| Max Output Voltage | 7.5mV |
| Max Supply Current | 7.5mA |
| Max Supply Voltage | 30V |
| Min Dual Supply Voltage | 1.75V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 28V |
| Output Compatibility | TTL |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Output Type | TTL |
| Package/Case | PDIP |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.115us |
| Quiescent Current | 7.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 165ns |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 4291$0.5964——$0.5693EachView offer |
| Supply Current | 7.5mA |
| Technology | BIPOLAR |
| Turn-On Delay Time | 115ns |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
| Weight | 0.015535oz |
| Width | 6.35mm |
