TPS54332DDAR

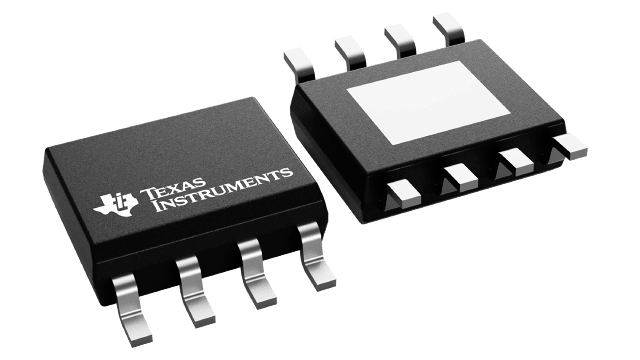

1MHz, 3.5A step-down DC/DC converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a low quiescent current of 82µA in Eco-mode. This surface mountable, 8-pin HSOP package component operates from -40°C to 150°C.
Similar Components
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
LM2576S-ADJ
The LM2576S-ADJ is a DC/DC controller with a maximum operating temperature of 125°C and a temperature grade of AUTOMOTIVE. It has a single terminal position and a pin count of 4. The device is packaged in a TO-263 with dimensions of 8.635mm in width and 10.16mm in length. It can handle input voltages between 8V and 40V.
LM2577
Adjustable DC-DC converter with a 3A maximum output current. Features a wide input voltage range from 3.5V to 40V and an adjustable output voltage from 1.23V up to 60V. This boost converter offers up to 80% efficiency and operates within a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount, it supports a single positive output.
LM7905CT
Negative linear voltage regulator, fixed -5V output, 1.5A output current. Features 4% output voltage accuracy and a 1.1V dropout voltage. Operates with input voltages from -25V to -10V, with a maximum operating temperature of 125°C. Packaged in a TO-220 through-hole mount.
LM2577T-ADJ/NOPB
Adjustable Boost Converter 3A 40V In, 60V Out TO-220
TPS63020
High efficiency single inductor buck-boost converter, featuring a 4A switch and 96% peak efficiency. This power management IC offers adjustable output voltage from 1.2V to 5.5V, supporting up to 3A output current. Designed for surface mount installation in a compact VSON package (4.15mm x 3.15mm x 0.95mm), it operates from 1.8V to 5.5V input voltage. With a quiescent current of 50µA and a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for power-sensitive applications.
About TPS54332DDAR
The Texas Instruments TPS54332DDAR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 1MHz, 3.5A step-down DC/DC converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a low quiescent current of 82µA in Eco-mode. This surface mountable, 8-pin HSOP package component operates from -40°C to 150°C.. Key parameters include Height: 1.55mm, Lead Free: Contains Lead, Length: 5mm, Max Input Voltage: 28V, and Max Operating Temperature: 150°C. TPS54332DDAR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS54332DDAR specifications
Click to ask a quick question:
Parameters
| Height | 1.55mm |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Voltage | 28V |
| Max Operating Temperature | 150°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 26.04V |
| Min Input Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 800mV |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 28V |
| Output Configuration | Positive |
| Output Current | 3.5A |
| Output Type | Adjustable |
| Output Voltage | 25V |
| Package/Case | HSOP |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 82uA |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 2,7805—$2.199——ReelView offer |
| Series | Eco-Mode™ |
| Synchronous Rectifier | No |
| Weight | 0.00249oz |
| Width | 4mm |
