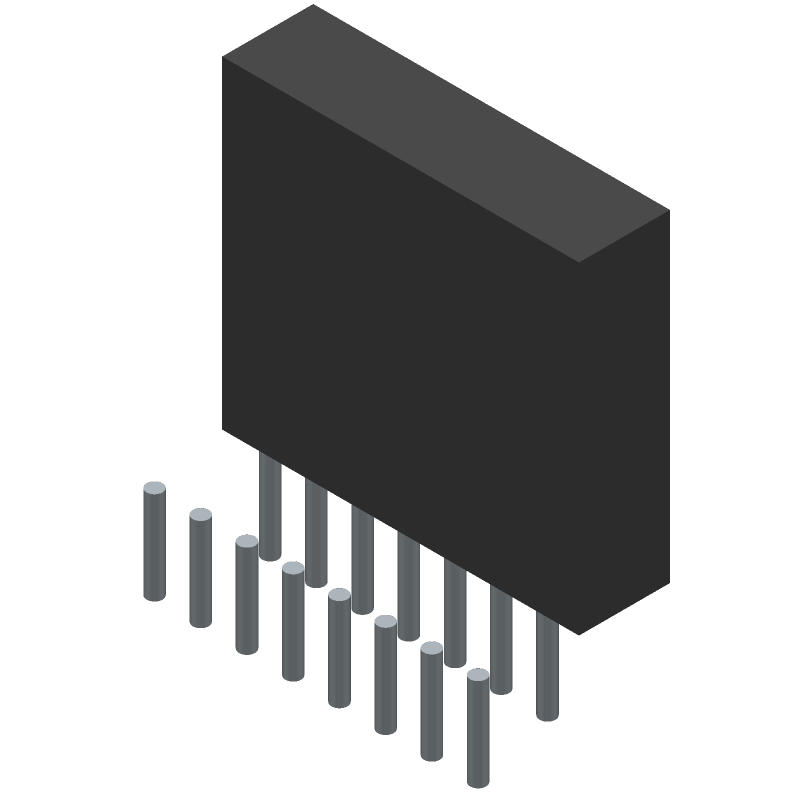

TDA7293
120 V / 100 W DMOS audio amplifier with mute and standby
Similar Components
TS922IDT
Dual-channel, general-purpose operational amplifier featuring a 4MHz bandwidth and 1.3V/µs slew rate. Delivers excellent audio performance with low distortion (0.005%) and a voltage gain of 106.02dB. Operates from a 2.7V to 12V supply range with a typical supply current of 2mA. Housed in a lead-free SOIC package for surface mounting, this BICMOS technology amplifier offers a 60dB common mode rejection ratio and 80mA output current per channel.
L6203
Dual-channel, full-bridge motor driver IC for brushed DC motors. Features a maximum supply voltage of 48V and a maximum output current of 5A per channel, with a 4A continuous output current. Operates with a 12V to 36V supply voltage and includes over-temperature fault protection. Utilizes BCDMOS technology with a 550mR maximum on-state resistance. Packaged in a 11-pin MULTIWATT V for through-hole mounting.
BAT43
Axial General Purpose Schottky Diode with a narrow forward voltage drop, rated for 30V reverse voltage and 200mA forward current. Features a low capacitance of 7pF and a fast 5ns reverse recovery time. Packaged in a DO-35 through-hole case with tin, matte contact plating. Operates across a wide temperature range from -65°C to 125°C, with a peak non-repetitive surge current capability of 4A. RoHS compliant and lead-free.
DB3
DIAC 36V 0.05mA 2-Pin DO-35 T/R
TIP121
NPN Darlington bipolar junction transistor featuring 80V collector-emitter breakdown voltage and a 5A maximum collector current. This through-hole component offers a high DC current gain (hFE) of 1000 and a maximum power dissipation of 65W. Packaged in a TO-220AB case, it operates within a temperature range of -65°C to 150°C and is RoHS compliant.
L293B
Four-channel push-pull driver IC for brushed DC motors. Features a parallel interface and operates from a 4.5V to 36V supply voltage, with a typical operating voltage of 24V. Delivers up to 2A maximum output current per channel. Packaged in a DIP through-hole mount, measuring 20mm in length, 7.1mm in width, and 5.1mm in height. RoHS compliant and lead-free.
About TDA7293

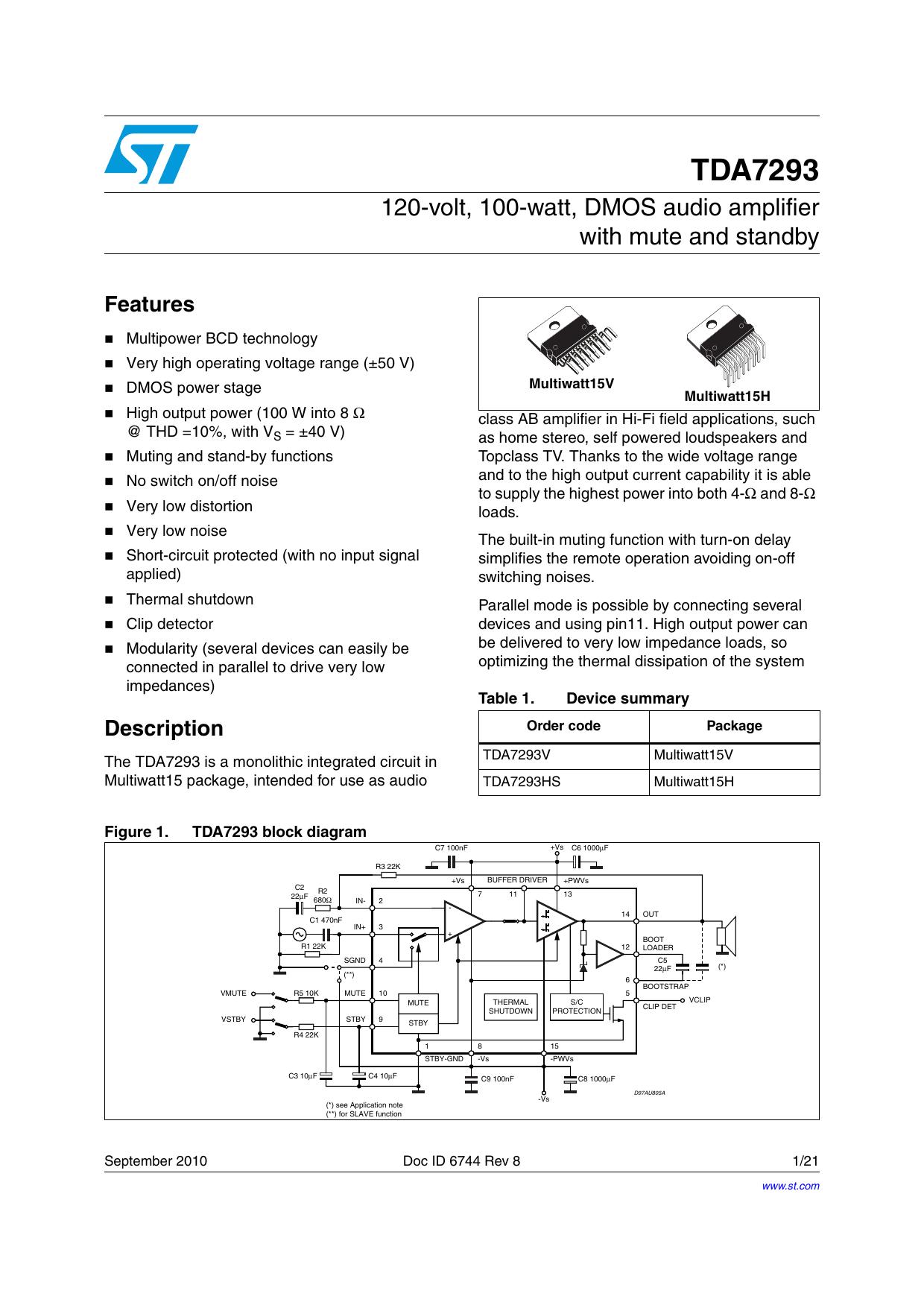

The Stmicroelectronics TDA7293 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 120 V / 100 W DMOS audio amplifier with mute and standby. Key parameters include RoHS: Compliant. TDA7293 is manufactured by Stmicroelectronics as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Stmicroelectronics
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TDA7293 specifications
Click to ask a quick question:
Parameters
| RoHS | Compliant |
