LMC6482IM/NOPB

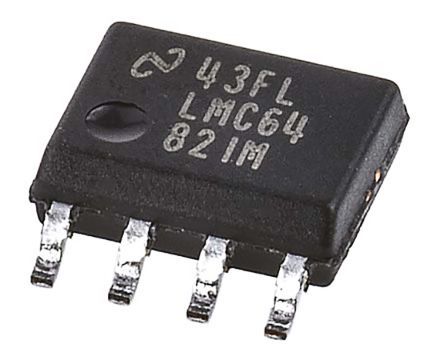

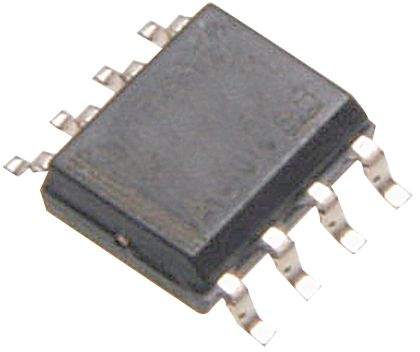

Dual precision operational amplifier featuring Rail-to-Rail input/output and a 1.5MHz gain bandwidth product. This CMOS amplifier offers a low input bias current of 0.02pA and an input offset voltage of 110µV. Operating from a 3V to 15.5V supply, it provides a 30mA output current per channel. Packaged in an 8-pin SOIC for surface mounting, this RoHS compliant component is ideal for general-purpose amplification.
Similar Components
TL074
IC OP-AMP, Operational Amplifier
CD4017
CMOS Hex D-Type Flip-Flop, featuring 6 bits per element, operates with positive edge clock triggering. This surface mount device offers a maximum operating frequency of 16MHz and a propagation delay of 100ns. It supports a wide supply voltage range from 3V to 18V, with a low quiescent current of 4uA. The component boasts gold contact plating and is RoHS compliant, functioning across an extended temperature range of -55°C to 125°C.
OPA2134PA
Dual operational amplifier for audio applications, featuring low distortion and low noise. This FET-input amplifier offers a gain bandwidth product of 8MHz and a high voltage gain of 120dB. It operates with dual supply voltages ranging from ±2.5V to ±18V, or a single supply from 5V to 36V. Key specifications include a 35mA output current per channel, 100pA input bias current, and a slew rate of 20V/µs. Packaged in an 8-PDIP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
SN65HVD230DR
High-speed CAN transceiver supporting 1Mbps data rates. Features a single driver and receiver with 3.3V operating supply voltage, compatible with 3V to 3.6V. Encased in an 8-pin SOIC package with SMD/SMT termination, this component offers a slew rate of 15V/µs and a standby supply current of 17mA. Operates across a temperature range of -40°C to 85°C, with RoHS compliance.
INA333AIDGKR
Single-channel instrumentation amplifier featuring a 150kHz bandwidth and 100dB common mode rejection ratio. This integrated circuit offers a low input bias current of 200pA and an input offset voltage of 25µV, with a high input resistance of 100GΩ. Operating from a minimum dual supply of 900mV up to a maximum of ±2.75V, or a single supply from 1.8V to 5.5V, it draws a quiescent current of 50µA. The amplifier delivers 40mA output current per channel and is housed in a compact 8-pin VSSOP package, measuring 3mm x 3mm x 0.97mm.
CD4093
CMOS logic IC featuring four independent 2-input NAND gates with Schmitt-Trigger inputs. Operating across a 3V to 18V supply range, this component offers a maximum output current of 6.8mA and a high-level output current of -4.2mA, with a low-level output current of 4.2mA. The PDIP package with gold contact plating supports through-hole mounting and operates from -55°C to 125°C. Propagation delay is 130ns, with a turn-on delay time of 380ns.
About LMC6482IM/NOPB
The Texas Instruments LMC6482IM/NOPB Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual precision operational amplifier featuring Rail-to-Rail input/output and a 1.5MHz gain bandwidth product. This CMOS amplifier offers a low input bias current of 0.02pA and an input offset voltage of 110µV. Operating from a 3V to 15.5V supply, it provides a 30mA output current per channel. Packaged in an 8-pin SOIC for surface mounting, this RoHS compliant component is ideal for general-purpose amplification.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 1.5MHz, Common Mode Rejection Ratio: 65dB, Gain Bandwidth Product: 1.5MHz, and Height: 1.45mm. LMC6482IM/NOPB is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LMC6482IM/NOPB specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.5MHz |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1.5MHz |
| Height | 1.45mm |
| Input Bias Current | 0.02pA |
| Input Offset Voltage (Vos) | 110uV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1.4mA |
| Max Supply Voltage | 15.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 1.3mA |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package/Case | SOIC |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 1.3V/µs |
| Supply Current | 1.3mA |
| Technology | CMOS |
| Thickness | 1.58mm |
| Unity Gain Bandwidth Product | 1.5MHz |
| Voltage | 16V |
| Voltage Gain | 116.47dB |
| Width | 3.9mm |
