TMS320F28069MPZT

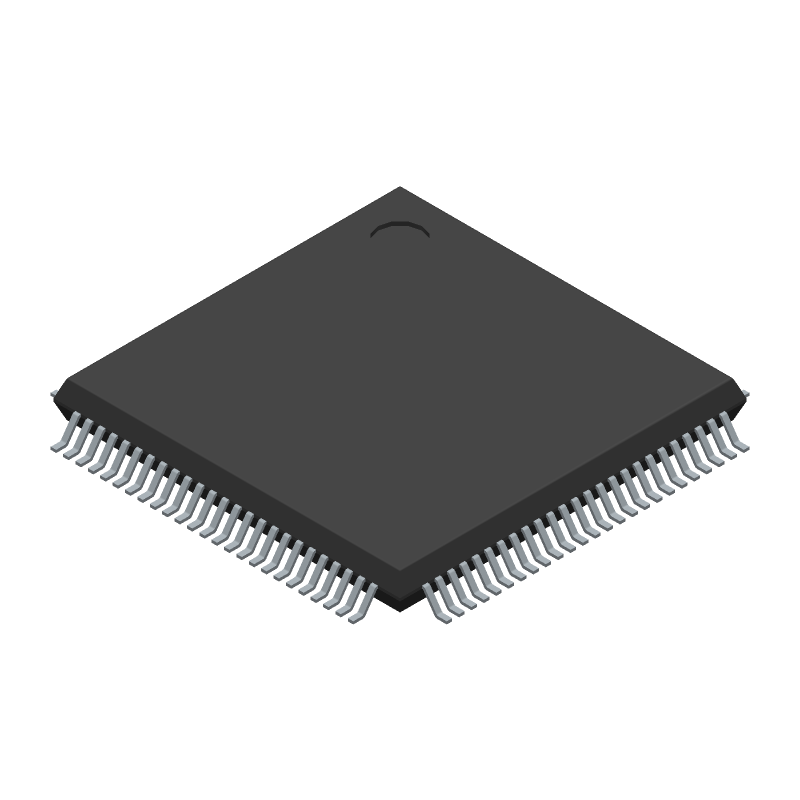

32-bit microcontroller featuring a 90 MHz C28x Piccolo™ core with FPU, VCU, and CLA for high-performance processing. Offers 256 KB Flash memory and 100 KB RAM, supporting InstaSPIN-MOTION capabilities. Includes multiple interfaces such as I2C, SPI, CAN, UART, USART, and SCI, alongside 54 programmable I/Os. Operates from 2.97V to 3.63V, with an internal oscillator and a wide temperature range of -40°C to 105°C. Packaged in a 100-LQFP for surface mounting, this RoHS compliant MCU is ideal for demanding control applications.
Similar Components
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
About TMS320F28069MPZT
The Texas Instruments TMS320F28069MPZT Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 32-bit microcontroller featuring a 90 MHz C28x Piccolo™ core with FPU, VCU, and CLA for high-performance processing. Offers 256 KB Flash memory and 100 KB RAM, supporting InstaSPIN-MOTION capabilities. Includes multiple interfaces such as I2C, SPI, CAN, UART, USART, and SCI, alongside 54 programmable I/Os. Operates from 2.97V to 3.63V, with an internal oscillator and a wide temperature range of -40°C to 105°C. Packaged in a 100-LQFP for surface mounting, this RoHS compliant MCU is ideal for demanding control applications.. Key parameters include Data Bus Width: 32b, Frequency: 90MHz, Interface: I2C, SPI, CAN, UART, USART, SCI, Lead Free: Lead Free, and Max Frequency: 90MHz. TMS320F28069MPZT is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about TMS320F28069MPZT specifications
Click to ask a quick question:
Parameters
| Data Bus Width | 32b |
| Frequency | 90MHz |
| Interface | I2C, SPI, CAN, UART, USART, SCI |
| Lead Free | Lead Free |
| Max Frequency | 90MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.63V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of I/Os | 54 |
| Number of Programmable I/O | 54 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package/Case | LQFP |
| Package Quantity | 90 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 100KB |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | C2000™ C28x Piccolo™ |
| Watchdog Timer | Yes |
