BSS138W
N-Channel Logic Level Enhancement Mode Field Effect Transistor, 50V Drain to Source Voltage (Vdss), 210mA Continuous Drain Current (ID), and 3.5 Ohm Drain-source On Resistance-Max. This surface mount transistor features a SOT-323 package with tin, matte contact plating. Operating temperature range is -55°C to 150°C with a maximum power dissipation of 340mW. Includes 2.3ns turn-on delay time and 6.5ns fall time.
Similar Components
BD137
The BD137 is a TO-225-3 packaged NPN bipolar junction transistor with a collector-emitter breakdown voltage of 60V and a collector-emitter saturation voltage of 500mV. It can handle a maximum collector current of 1.5A and a maximum power dissipation of 1.25W. The transistor operates within a temperature range of -55°C to 150°C and is not RoHS compliant due to the presence of lead.
MMSZ5239B
DIODE ZENER 9.1V 500MW SOD123
TIP42
PNP Bipolar Junction Transistor (BJT) in a TO-220 package, featuring a maximum collector current of 6A and a collector-emitter breakdown voltage of 40V. This through-hole mounted transistor offers a minimum DC current gain (hFE) of 15 and a transition frequency of 3MHz. With a maximum power dissipation of 2W and an operating temperature range of -65°C to 150°C, it is RoHS compliant and lead-free.
MMSZ5234B
DIODE ZENER 6.2V 500MW SOD123
MJE13003
1.5 A, 400 V NPN Bipolar Power Transistor, TO-225, 500-BLKBX
FQP30N06L
N-channel Power MOSFET, Logic Level, 60V Drain-Source Breakdown Voltage, 32A Continuous Drain Current, and 35mΩ Max Drain-Source On-Resistance. Features a TO-220AB package for through-hole mounting, 79W max power dissipation, and operates from -55°C to 175°C. Includes 1.04nF input capacitance and fast switching times with 15ns turn-on delay. RoHS compliant and lead-free.
About BSS138W

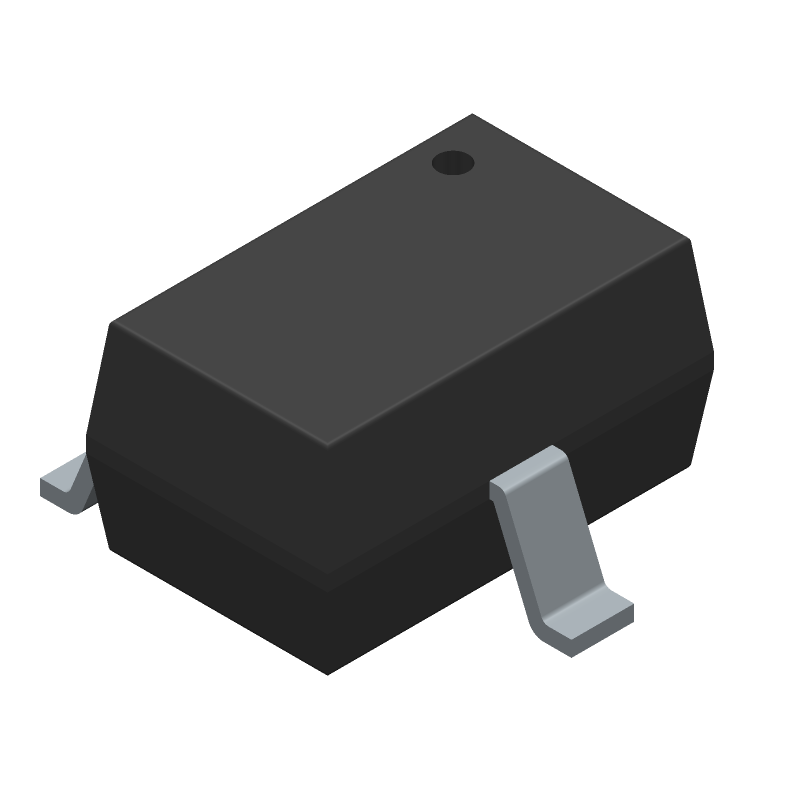

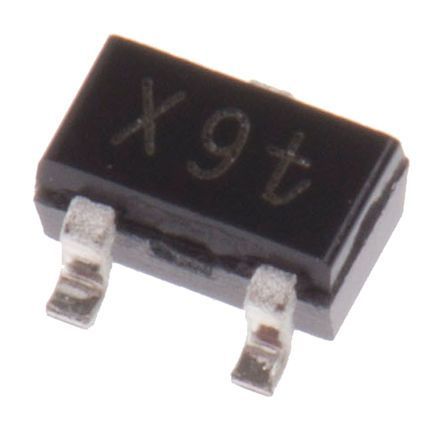

The Onsemi BSS138W Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Logic Level Enhancement Mode Field Effect Transistor, 50V Drain to Source Voltage (Vdss), 210mA Continuous Drain Current (ID), and 3.5 Ohm Drain-source On Resistance-Max. This surface mount transistor features a SOT-323 package with tin, matte contact plating. Operating temperature range is -55°C to 150°C with a maximum power dissipation of 340mW. Includes 2.3ns turn-on delay time and 6.5ns fall time.. Key parameters include Contact Plating: Tin, Matte, Continuous Drain Current (ID): 210mA, Drain-source On Resistance-Max: 3.5R, Drain to Source Breakdown Voltage: 50V, and Drain to Source Resistance: 6R. BSS138W is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BSS138W specifications
Click to ask a quick question:
Parameters
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 210mA |
| Drain-source On Resistance-Max | 3.5R |
| Drain to Source Breakdown Voltage | 50V |
| Drain to Source Resistance | 6R |
| Drain to Source Voltage (Vdss) | 50V |
| Fall Time | 6.5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.9mm |
| Input Capacitance | 38pF |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 340mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package/Case | SOT-323 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 340mW |
| Quest | 1,713223—$0.045———View offer |
| Radiation Hardening | No |
| Rds On Max | 3.5R |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 37500————ReelView offer |
| Threshold Voltage | 1.3V |
| Turn-Off Delay Time | 6.7ns |
| Turn-On Delay Time | 2.3ns |
| Voltage | 50V |
| Width | 1.25mm |
