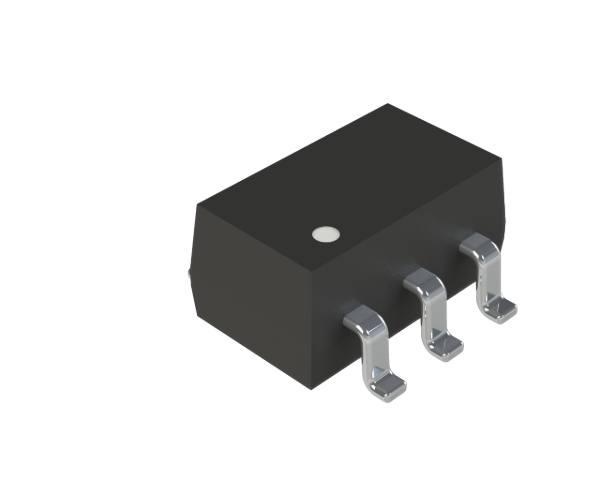

BC847BS
NPN Bipolar Junction Transistor (BJT) for general-purpose amplification. Features a 45V collector-emitter voltage (VCEO) and a 100mA maximum collector current. Offers a minimum DC current gain (hFE) of 200 and a transition frequency of 250MHz. Packaged in a compact SC surface-mount case, this component operates across a wide temperature range from -55°C to 150°C. Supplied in a 3000-piece tape and reel.
Similar Components
SMBJ24A
Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 24V reverse standoff voltage and a 600W peak pulse power rating. Offers a clamping voltage of 38.9V and a maximum breakdown voltage of 29.5V. Operates across a temperature range of -55°C to 150°C with a maximum reverse leakage current of 5µA. Packaged in a DO-214AA case, this RoHS compliant component is supplied on tape and reel.
BC547
NPN bipolar junction transistor in a TO-92-3 package, designed for through-hole mounting. Features a maximum collector current of 100mA and a collector-emitter breakdown voltage of 45V. Offers a DC rated voltage of 45V, a transition frequency of 300MHz, and a minimum DC current gain (hFE) of 110. Maximum power dissipation is 500mW, with operating temperatures ranging from -65°C to 150°C.
RS1M
General purpose rectifier diode with 1A average rectified current and 1kV maximum repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 500ns reverse recovery time. Housed in a DO-214AC surface mount package with dimensions of 4.75mm length, 2.95mm width, and 2.2mm height. Operates across a temperature range of -55°C to 150°C with 1.19W power dissipation. RoHS compliant and lead-free.
MMBF0201NLT1G
Single N-Channel Small Signal Logic Level Power MOSFET 20V, 300mA, 1Ω, SOT-23 (TO-236) 3 LEAD, 3000-REEL
MMBT2222A 1P
NPN bipolar junction transistor (BJT) for surface mount applications. Features a 40V collector-emitter voltage, 1A maximum DC collector current, and 350mW maximum power dissipation. This single-element transistor is housed in a 3-pin SOT-23 (TO-236AB) plastic package with gull-wing leads. Operating temperature range is -55°C to 150°C, with a minimum transition frequency of 300MHz.
BC549
NPN Bipolar Junction Transistor (BJT) in a TO-92 package, designed for through-hole mounting. Features a maximum collector current of 100mA and a collector-emitter breakdown voltage of 30V. Offers a minimum DC current gain (hFE) of 110 and a transition frequency of 300MHz. Operates within a temperature range of -65°C to 150°C with a maximum power dissipation of 500mW. This RoHS compliant component is supplied in bulk packaging.
About BC847BS
The Onsemi BC847BS Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: NPN Bipolar Junction Transistor (BJT) for general-purpose amplification. Features a 45V collector-emitter voltage (VCEO) and a 100mA maximum collector current. Offers a minimum DC current gain (hFE) of 200 and a transition frequency of 250MHz. Packaged in a compact SC surface-mount case, this component operates across a wide temperature range from -55°C to 150°C. Supplied in a 3000-piece tape and reel.. Key parameters include Collector Base Voltage (VCBO): 50V, Collector Emitter Breakdown Voltage: 45V, Collector Emitter Saturation Voltage: 650mV, Collector-emitter Voltage-Max: 650mV, and Collector Emitter Voltage (VCEO): 45V. BC847BS is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BC847BS specifications
Click to ask a quick question:
Parameters
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 650mV |
| Collector-emitter Voltage-Max | 650mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Current Rating | 100mA |
| DC Rated Voltage | 45V |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| Height | 1mm |
| hFE Min | 200 |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 210mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package/Case | SC |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 325mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| Weight | 0.028g |
| Width | 1.25mm |
