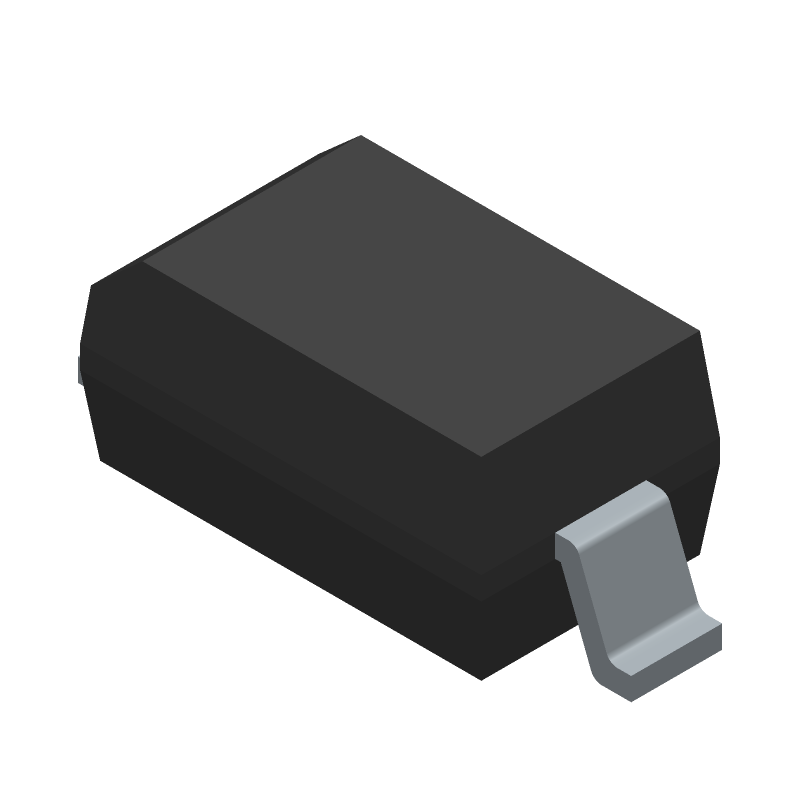

MBR130T1G
Schottky rectifier diode, 1A average rectified current, 30V repetitive reverse voltage. Features a single element configuration within a compact SOD-123-2 package. Offers a maximum forward surge current of 5.5A and a maximum operating temperature of 125°C. This RoHS and Halogen Free component is supplied on tape and reel.
Similar Components
RS1M
General purpose rectifier diode with 1A average rectified current and 1kV maximum repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 500ns reverse recovery time. Housed in a DO-214AC surface mount package with dimensions of 4.75mm length, 2.95mm width, and 2.2mm height. Operates across a temperature range of -55°C to 150°C with 1.19W power dissipation. RoHS compliant and lead-free.
SMCJ51CA
Bidirectional transient voltage suppressor with 1.5kW peak pulse power and 51V DC rated voltage. Features a 82.4V clamping voltage and 56.7V to 62.7V breakdown voltage range. Designed for surface mount applications in a DO-214AB package, operating from -55°C to 150°C. Offers 18.2A peak pulse current capability and 5uA max reverse leakage current.
LM2904DR2G
Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.6V/µs slew rate. This general-purpose op-amp operates from a wide supply voltage range of 1.5V to 32V, with a typical dual supply voltage of 9V and a maximum of 16V. It offers a voltage gain of 100dB and a common mode rejection ratio of 50dB, suitable for applications requiring 2 amplifiers. Packaged in a narrow SOIC-8 body, this component is RoHS and Halogen free, with a maximum operating temperature of 105°C.
1N5401
General purpose rectifier diode with a 3A average rectified current and 100V repetitive reverse voltage. Features a 3A forward current, 200A peak non-repetitive surge current, and 6.25W power dissipation. Housed in a DO-201AD through-hole package, this RoHS compliant component operates from -55°C to 150°C.
MJE13009
TRANS NPN 400V 12A TO220AB
BC558
PNP Bipolar Junction Transistor (BJT) for through-hole mounting in a TO-92 package. Features a maximum collector current of 100mA and a collector-emitter voltage of 30V. Offers a minimum DC current gain (hFE) of 110 and a transition frequency of 150MHz. Operates across a wide temperature range from -65°C to 150°C with a maximum power dissipation of 500mW. Lead-free and RoHS compliant.
About MBR130T1G
The Onsemi MBR130T1G Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Schottky rectifier diode, 1A average rectified current, 30V repetitive reverse voltage. Features a single element configuration within a compact SOD-123-2 package. Offers a maximum forward surge current of 5.5A and a maximum operating temperature of 125°C. This RoHS and Halogen Free component is supplied on tape and reel.. Key parameters include Average Rectified Current: 1A, Current Rating: 1A, DC Rated Voltage: 30V, Element Configuration: Single, and Forward Current: 1A. MBR130T1G is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about MBR130T1G specifications
Click to ask a quick question:
Parameters
| Average Rectified Current | 1A |
| Current Rating | 1A |
| DC Rated Voltage | 30V |
| Element Configuration | Single |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Height | 1.12mm |
| Lead Free | Lead Free |
| Length | 2.69mm |
| Max Forward Surge Current (Ifsm) | 5.5A |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 60uA |
| Max Reverse Leakage Current | 60uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 5.5A |
| Min Operating Temperature | -65°C |
| Output Current | 1A |
| Package/Case | SOD-123-2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 5.5A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Width | 1.6mm |
