LM386

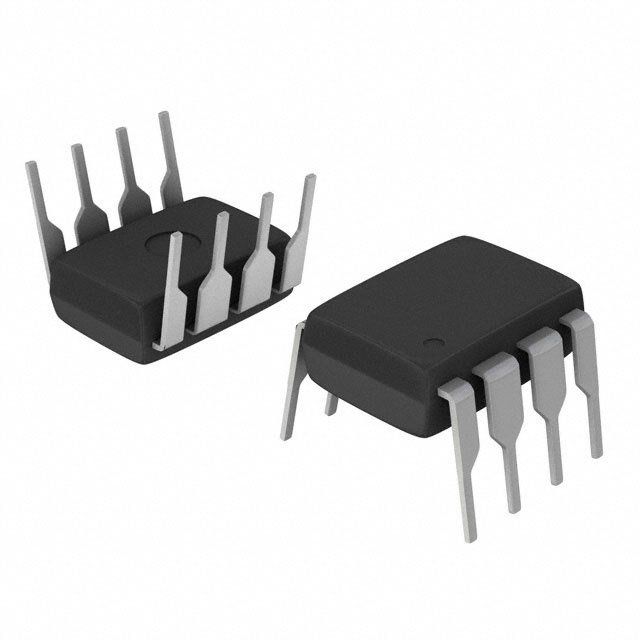

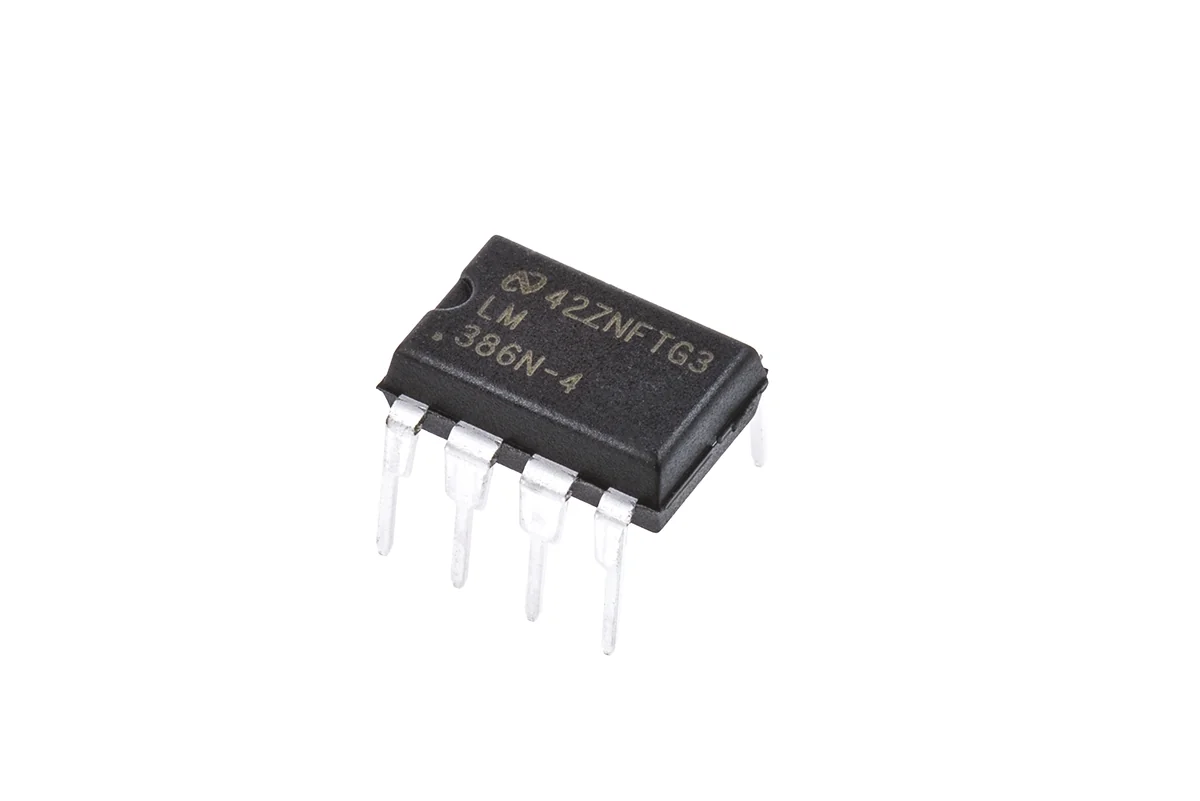

The LM386 is an 8-pin dual-in-line package audio amplifier IC from Samsung, featuring a single channel and operating within a supply voltage range of 4 to 12 volts. It has a JEDEC package code of R-PDIP-T8, with dimensions of 7.62mm in width and 9.2mm in length. The device has 8 terminals and supports a maximum supply voltage of 12 volts. It is designed for use in audio applications and is available in a DIP package type.
Similar Components
AON7520
Power Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET
MMBD4148CC
Ultra-fast switching diode featuring a 4ns reverse recovery time and 100V repetitive reverse voltage. This general-purpose rectifier offers a 200mA average rectified current and a 2A maximum surge current. Housed in a SOT-23 surface mount package, it operates from -55°C to 150°C with a 350mW power dissipation. The common cathode element configuration and RoHS compliance make it suitable for various electronic applications.
SMCJ45CA
Bidirectional transient voltage suppressor diode, 1.5kW peak pulse power, 45V reverse standoff voltage, and 72.7V clamping voltage. Features a 1-element silicon construction with a 150°C maximum operating temperature. This surface mount component, packaged in DO-214AB, offers 20.6A peak pulse current and 1uA leakage current. It is RoHS compliant and designed for power line protection applications.
BT139-600E
600V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, SC-46, 3 PIN
103-143-10
EXTERNAL MICROMETER, 150MM TO 175MM; Measuring Range Max:175mm; Graduations:0.01mm; Accuracy:0.004mm; No. of Anvils:-; Product Range:- ;RoHS Compliant: NA
CD4081BE
4-ch CMOS AND Gate IC, 3-18V, 14-PDIP, Military
About LM386
The Samsung LM386 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The LM386 is an 8-pin dual-in-line package audio amplifier IC from Samsung, featuring a single channel and operating within a supply voltage range of 4 to 12 volts. It has a JEDEC package code of R-PDIP-T8, with dimensions of 7.62mm in width and 9.2mm in length. The device has 8 terminals and supports a maximum supply voltage of 12 volts. It is designed for use in audio applications and is available in a DIP package type.. Key parameters include Eccn Code: EAR99, HTS Code: 8542.33.00.01, JEDEC Package Code: R-PDIP-T8, Length: 9.2, and Military Spec: False. LM386 is manufactured by Samsung as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Samsung
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM386 specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| HTS Code | 8542.33.00.01 |
| JEDEC Package Code | R-PDIP-T8 |
| Length | 9.2 |
| Military Spec | False |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Pin Count | 8 |
| REACH | unknown |
| Supply Voltage-Max (Vsup) | 12 |
| Supply Voltage-Min (Vsup) | 4 |
| Terminal Position | DUAL |
| Width | 7.62 |
