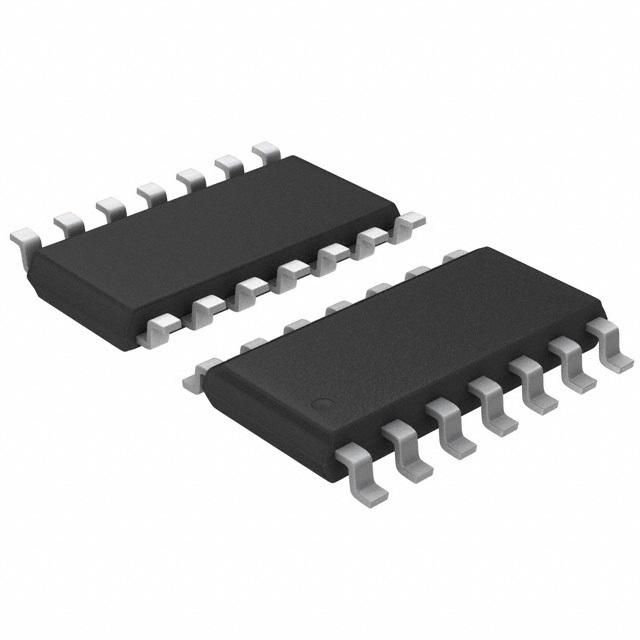

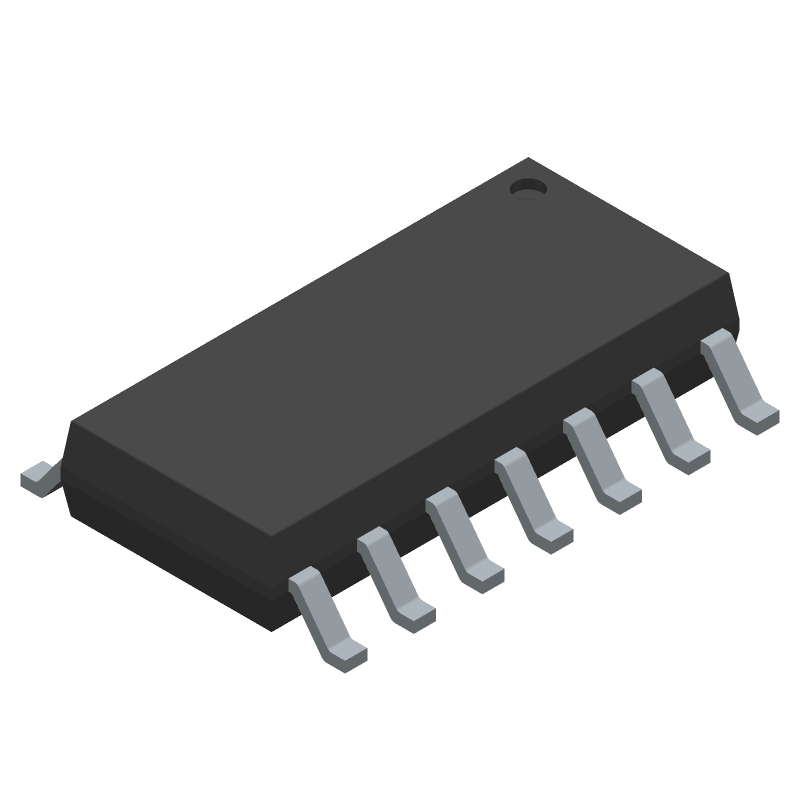

TL074CD
Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This general-purpose IC offers a 13V/µs slew rate and 200pA input bias current. It operates with dual supply voltages from 3.5V to 18V, with a maximum dual supply of 18V. The component is housed in a 14-SOIC package and is RoHS compliant.
Similar Components
MAX232N
Dual transmitter/receiver bus transceiver for RS-232 communication. Features two transmitters and two receivers, supporting full-duplex operation. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a data rate of 120Kbps. Includes ESD protection and is RoHS compliant. Packaged in a 16-pin PDIP with through-hole mounting.
LM675
Power operational amplifier featuring a 5.5MHz bandwidth and 8V/µs slew rate. This single-channel, through-hole mounted IC offers a high output current of 3A per channel and a voltage gain of 90dB. Operating from dual supplies between 8V and 30V, or single supplies from 16V to 60V, it boasts a 70dB common mode rejection ratio and power supply rejection ratio. The bipolar technology component is housed in a TO-220 package, with a maximum power dissipation of 30W and an operating temperature range of 0°C to 70°C.
LM380N-8/NOPB
1-CH Audio Amp 2.5W Class-AB 8-Pin PDIP 100kHz
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
INA219AIDR
Bidirectional current and power monitor IC featuring zero-drift technology for high accuracy. Achieves 1% accuracy with a low input offset voltage of 10µV and 100dB common mode rejection ratio. Operates from a 3V to 5.5V supply, consuming 1mA operating supply current. Packaged in a lead-free SOIC with dimensions of 4.9mm x 3.91mm x 1.75mm, suitable for operation between -40°C and 125°C.
LMD18200T/NOPB
3A 55V 2-Ch Brushed Motor Driver IC TO-220
About TL074CD
The Texas Instruments TL074CD Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This general-purpose IC offers a 13V/µs slew rate and 200pA input bias current. It operates with dual supply voltages from 3.5V to 18V, with a maximum dual supply of 18V. The component is housed in a 14-SOIC package and is RoHS compliant.. Key parameters include Bandwidth: 3MHz, Common Mode Rejection Ratio: 70dB, Dual Supply Voltage: 9V, Gain Bandwidth Product: 3MHz, and Height: 1.58mm. TL074CD is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TL074CD specifications
Click to ask a quick question:
Parameters
| Bandwidth | 3MHz |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 3MHz |
| Height | 1.58mm |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 10mV |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 18V |
| Package/Case | D |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 10mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
| Width | 3.91mm |
