FDN337N

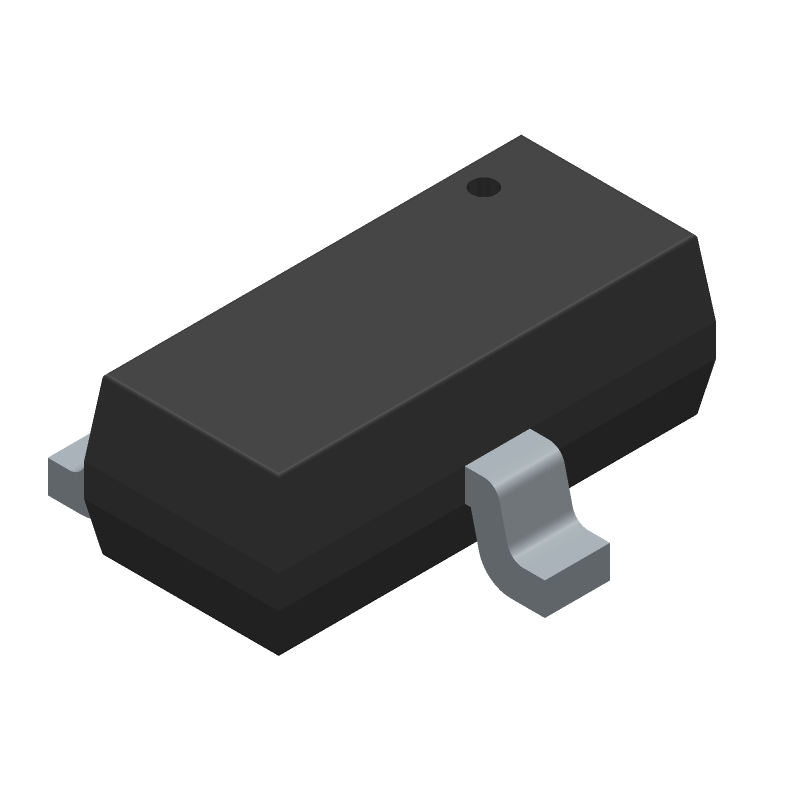

N-Channel MOSFET, 30V Drain-Source Voltage, 2.2A Continuous Drain Current. Features 65mΩ Max Drain-Source On Resistance and 700mV Threshold Voltage. Operates with 8V Gate-Source Voltage, offering 4ns Turn-On Delay and 17ns Turn-Off Delay. Packaged in a 3-pin SOT-23 (TO-236-3) for surface mounting, with a maximum power dissipation of 500mW. RoHS compliant and lead-free.
Similar Components
MMSZ5257B
Diode Zener Single 33V 5% 500mW 2-Pin SOD-123 T/R
MMSZ5242B
Surface mount Zener diode with a 12V DC rated voltage and 5% voltage tolerance. Features 500mW power dissipation, 30 Ohm impedance, and a maximum reverse leakage current of 1uA at 12V. Operates across a temperature range of -55°C to 150°C. Packaged in tape and reel, this RoHS compliant component is ideal for voltage regulation applications.
IRF830
N-channel enhancement mode power MOSFET featuring 500V maximum drain-source voltage and 4.5A continuous drain current. This single-element silicon transistor is housed in a 3-pin TO-220 package with through-hole mounting. Key specifications include a maximum drain-source resistance of 1500 mOhm at 10V and a typical gate charge of 22 nC at 10V. Operating temperature range is -55°C to 150°C, with a maximum power dissipation of 75W.
MMBTA05
NPN Bipolar Junction Transistor (BJT) for general-purpose amplification. Features a 60V collector-emitter breakdown voltage and a 500mA maximum collector current. Operates with a minimum DC current gain (hFE) of 100 and a transition frequency of 100MHz. Packaged in a SOT-23 surface-mount case, supplied on a 3000-piece tape and reel. RoHS compliant with a maximum power dissipation of 350mW.
MJE13009
TRANS NPN 400V 12A TO220AB
SS26F
Surface mount rectifier diode featuring a 60V repetitive peak reverse voltage and 60V minimum breakdown voltage. This dual-terminal, single-element silicon device operates across a wide temperature range from -55°C to 125°C. Designed for general-purpose rectification, it is supplied on a 3000-piece reel.
About FDN337N
The Onsemi FDN337N Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel MOSFET, 30V Drain-Source Voltage, 2.2A Continuous Drain Current. Features 65mΩ Max Drain-Source On Resistance and 700mV Threshold Voltage. Operates with 8V Gate-Source Voltage, offering 4ns Turn-On Delay and 17ns Turn-Off Delay. Packaged in a 3-pin SOT-23 (TO-236-3) for surface mounting, with a maximum power dissipation of 500mW. RoHS compliant and lead-free.. Key parameters include Continuous Drain Current (ID): 2.2A, Current Rating: 2.2A, DC Rated Voltage: 30V, Drain-source On Resistance-Max: 65mR, and Drain to Source Breakdown Voltage: 30V. FDN337N is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about FDN337N specifications
Click to ask a quick question:
Parameters
| Continuous Drain Current (ID) | 2.2A |
| Current Rating | 2.2A |
| DC Rated Voltage | 30V |
| Drain-source On Resistance-Max | 65mR |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 65mR |
| Drain to Source Voltage (Vdss) | 30V |
| Dual Supply Voltage | 30V |
| Element Configuration | Single |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.94mm |
| Input Capacitance | 300pF |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Nominal Vgs | 700mV |
| Number of Elements | 1 |
| Package/Case | TO-236-3 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 500mW |
| Rds On Max | 65mR |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Threshold Voltage | 700mV |
| Turn-Off Delay Time | 17ns |
| Turn-On Delay Time | 4ns |
| Weight | 0.03g |
| Width | 3.05mm |
