TL084CD

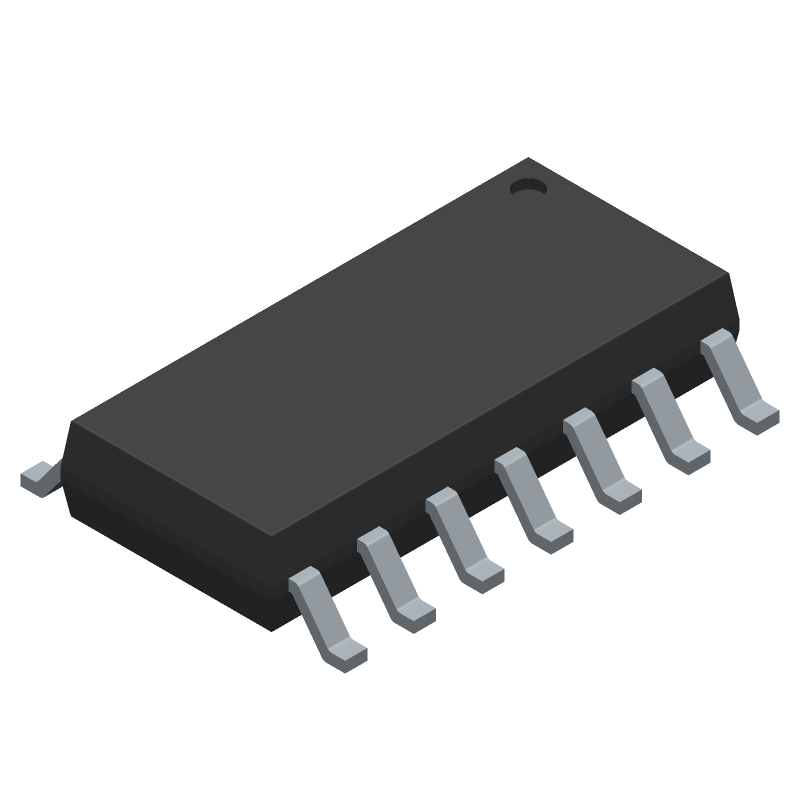

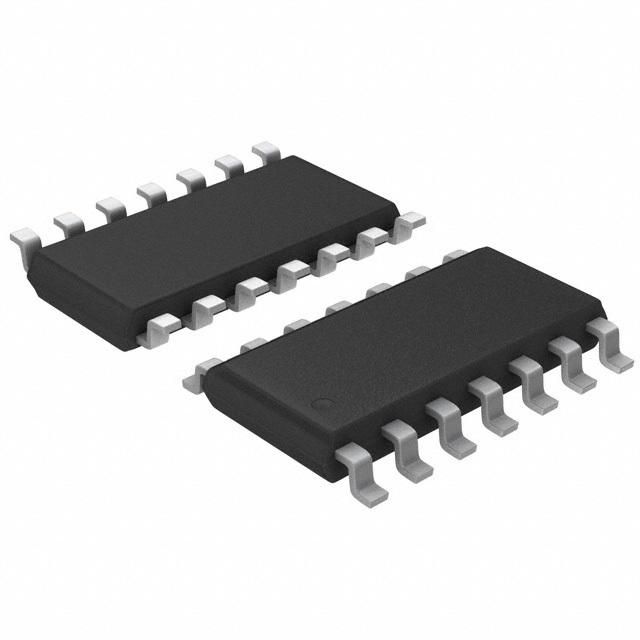

Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology device offers a 70dB common mode rejection ratio and a 3mV input offset voltage. Operates with dual supply voltages from 3.5V to 18V, with a nominal operating supply current of 1.4mA. Packaged in a 14-SOIC (D) surface mount case, it supports a wide operating temperature range of -40°C to 125°C.
Similar Components
OPA2134PA
Dual operational amplifier for audio applications, featuring low distortion and low noise. This FET-input amplifier offers a gain bandwidth product of 8MHz and a high voltage gain of 120dB. It operates with dual supply voltages ranging from ±2.5V to ±18V, or a single supply from 5V to 36V. Key specifications include a 35mA output current per channel, 100pA input bias current, and a slew rate of 20V/µs. Packaged in an 8-PDIP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
LM358P
Dual operational amplifier IC featuring a 700kHz bandwidth and 100dB voltage gain. This general-purpose amplifier offers a 0.3V/µs slew rate and operates with a wide supply voltage range from 1.5V to 32V. Housed in a PDIP package for through-hole mounting, it includes two independent amplifier channels, each capable of 30mA output current. The device boasts a 65dB common mode rejection ratio and is RoHS compliant.
CD4069
CMOS Hex Inverter 14-CDIP -55 to 125
TLC5916
The TLC5916 is a constant-current LED sink driver designed to work alone or be cascaded. It contains an 8-bit shift register and data latches that convert serial input data into parallel output format. The device features eight regulated-current ports that provide uniform and constant current for driving LEDs with a wide range of forward voltage variations. It includes an external resistor to set the output current from 5 mA to 120 mA and provides excellent output current accuracy.
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
CD4066BE
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
About TL084CD
The Texas Instruments TL084CD Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology device offers a 70dB common mode rejection ratio and a 3mV input offset voltage. Operates with dual supply voltages from 3.5V to 18V, with a nominal operating supply current of 1.4mA. Packaged in a 14-SOIC (D) surface mount case, it supports a wide operating temperature range of -40°C to 125°C.. Key parameters include Bandwidth: 3MHz, Common Mode Rejection Ratio: 70dB, Dual Supply Voltage: 9V, Gain Bandwidth Product: 3MHz, and Height: 1.58mm. TL084CD is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TL084CD specifications
Click to ask a quick question:
Parameters
| Bandwidth | 3MHz |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 3MHz |
| Height | 1.58mm |
| Input Bias Current | 400pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 15mV |
| Max Operating Temperature | 125°C |
| Min Dual Supply Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Package/Case | D |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 680mW |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | —1$0.7829———EachView offer |
| Slew Rate | 13V/µs |
| Supply Current | 1.4mA |
| Technology | BIFET |
| TME | 2291$1.05$0.9——pcsView offer |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
| Width | 3.91mm |
