DRV8825PWP
Surface mount stepper motor controller featuring a 28-pin HTSSOP package. Operates with supply voltages from 8.2V to 45V, delivering up to 2.5A output current. Includes two outputs and a logic interface, with a maximum collector current of 1.8A. This RoHS compliant component offers a wide operating temperature range from -40°C to 85°C.
Similar Components
TL074CN
Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and a 200pA input bias current. Designed for dual supply operation from ±3.5V to ±18V, it boasts a 106dB voltage gain. The component is housed in a 14-PDIP package and operates across a wide temperature range of -40°C to 85°C.
CD4026BE
CMOS Decade Counter/Divider, 16MHz, 3-18V, PDIP
NE5532DR
Dual-channel, general-purpose operational amplifier with a 10-MHz bandwidth and 9V/µs slew rate. Features 26-V output swing, 100-dB voltage gain, and 70-dB common mode rejection ratio. Operates from ±5V to ±15V dual supply voltages, with a typical supply current of 8mA. Packaged in an 8-SOIC (D) package, this lead-free, RoHS-compliant component is suitable for audio applications.
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
INA2126UAE4
Dual instrumentation amplifier with a 9kHz bandwidth and 200kHz -3dB bandwidth. Features a 74dB Common Mode Rejection Ratio, 500µV input offset voltage, and 50nA input bias current. Operates with dual supply voltages from ±1.35V to ±18V or a single supply from 2.7V to 36V. Offers 80dB voltage gain, 0.4V/µs slew rate, and 35nV/√Hz input voltage noise density. Packaged in a D surface-mount case, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
About DRV8825PWP

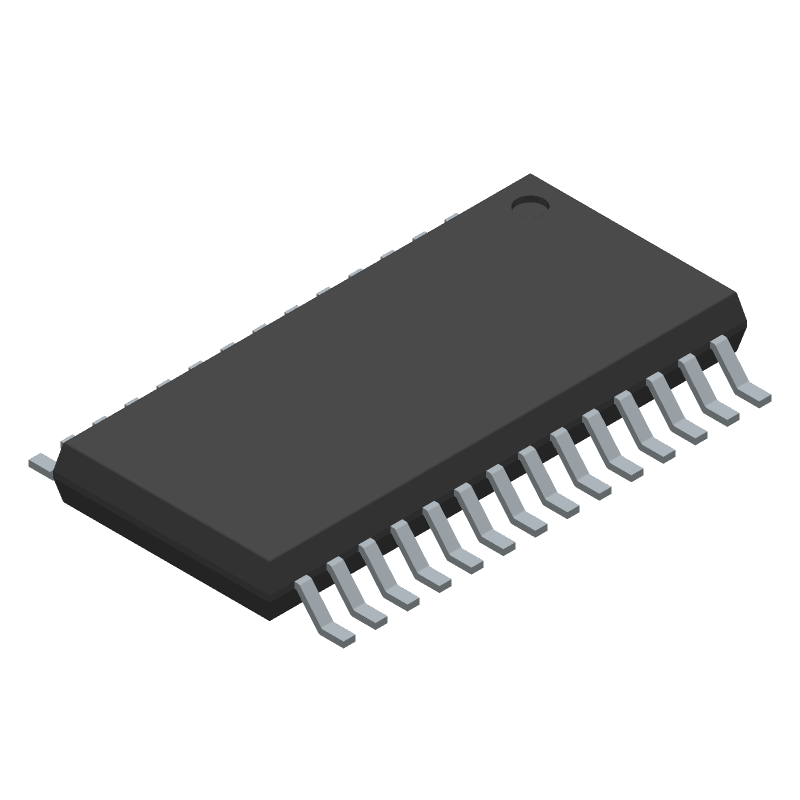

The Texas Instruments DRV8825PWP Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Surface mount stepper motor controller featuring a 28-pin HTSSOP package. Operates with supply voltages from 8.2V to 45V, delivering up to 2.5A output current. Includes two outputs and a logic interface, with a maximum collector current of 1.8A. This RoHS compliant component offers a wide operating temperature range from -40°C to 85°C.. Key parameters include Height: 1.05mm, Interface: Logic, Lead Free: Lead Free, Length: 9.8mm, and Max Collector Current: 1.8A. DRV8825PWP is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
