TPA3118D2DAPR

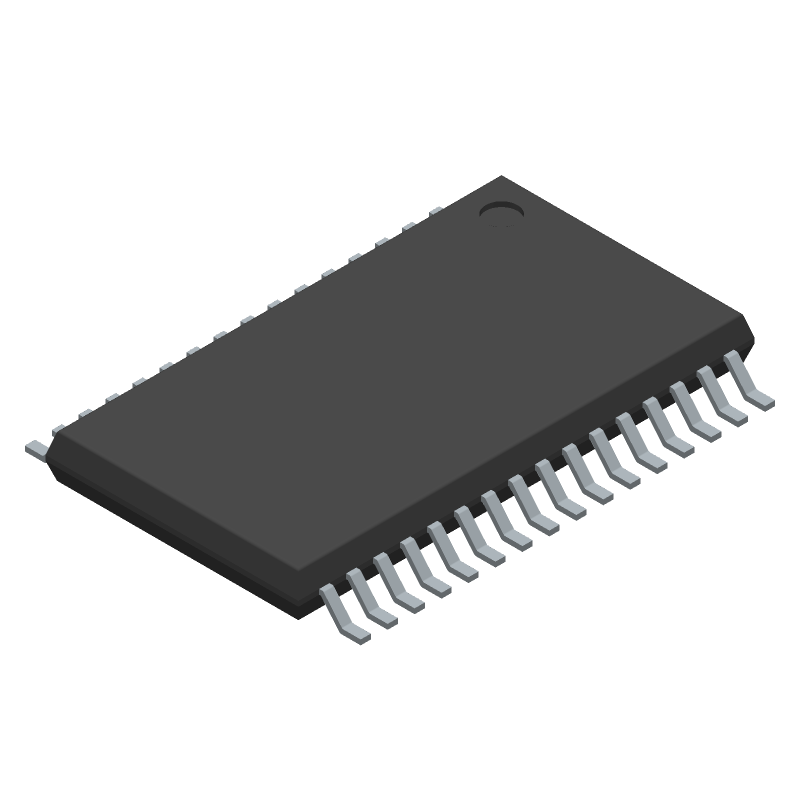

High-fidelity 1-channel mono or 2-channel stereo Class-D audio amplifier IC. Delivers up to 30W output power with a wide supply voltage range from 4.5V to 26V. Features 36dB voltage gain and operates efficiently across a temperature range of -40°C to 85°C. Packaged in a 32-pin HTSSOP for surface mounting, supplied on tape and reel. This RoHS compliant component is lead-free.
Similar Components
LM339D
Quad differential comparator IC featuring four independent channels. Operates with dual supply voltages from 1V to 15V, or a single supply from 2V to 30V. Offers a maximum supply current of 500µA and an output current per channel of 6mA. Packaged in a 14-SOIC surface-mount case with a response time of 0.3µs. This RoHS compliant component has a maximum operating temperature of 70°C.
DRV8871
Automotive-grade H-bridge motor driver IC featuring integrated current sensing. Delivers up to 3.6A continuous output current with a maximum supply voltage of 45V and a minimum of 6.5V. Operates across a wide temperature range from -40°C to 125°C. Housed in an 8-pin SO PowerPAD package (R-PDSO-G8) with dual terminal positions, measuring 3.9mm in width and 4.9mm in length.
LM555
Single channel timer IC with a 100kHz frequency capability, operating from a 4.5V to 16V supply. Features include 200mA output current, 1.18W power dissipation, and a 0°C to 70°C operating temperature range. This lead-free, RoHS compliant component is housed in an 8-pin PDIP through-hole package.
CD4052BE
Dual 4:1 analog multiplexer, featuring two independent 4-channel multiplexers on a single chip. This through-hole component is housed in a 16-pin PDIP plastic package with a 2.54mm pin pitch. It offers 8 inputs and 2 outputs, with a maximum on-resistance of >=1000 Ohm. Operating temperature range spans from -55 °C to 125 °C.
MAX232INE4
Dual EIA-232 Transceiver, 120Kbps, 5V, 2 Drivers/2 Receivers, PDIP
INA2126UAE4
Dual instrumentation amplifier with a 9kHz bandwidth and 200kHz -3dB bandwidth. Features a 74dB Common Mode Rejection Ratio, 500µV input offset voltage, and 50nA input bias current. Operates with dual supply voltages from ±1.35V to ±18V or a single supply from 2.7V to 36V. Offers 80dB voltage gain, 0.4V/µs slew rate, and 35nV/√Hz input voltage noise density. Packaged in a D surface-mount case, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
About TPA3118D2DAPR
The Texas Instruments TPA3118D2DAPR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-fidelity 1-channel mono or 2-channel stereo Class-D audio amplifier IC. Delivers up to 30W output power with a wide supply voltage range from 4.5V to 26V. Features 36dB voltage gain and operates efficiently across a temperature range of -40°C to 85°C. Packaged in a 32-pin HTSSOP for surface mounting, supplied on tape and reel. This RoHS compliant component is lead-free.. Key parameters include Lead Free: Lead Free, Max Operating Temperature: 85°C, Max Output Power: 30W, Max Supply Voltage: 26V, and Min Operating Temperature: -40°C. TPA3118D2DAPR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TPA3118D2DAPR specifications
Click to ask a quick question:
Parameters
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Output Power | 30W |
| Max Supply Voltage | 26V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Output Power | 30W |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quest | 32,00014——$1.8658——View offer |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | SpeakerGuard™ |
| Voltage Gain | 36dB |
