OPT3001DNPR

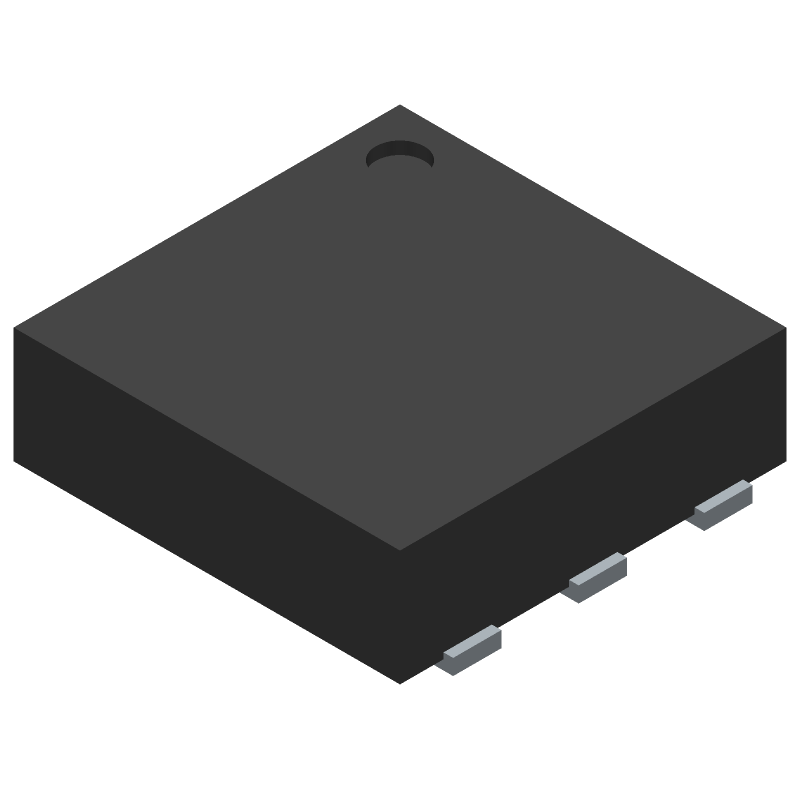

The OPT3001DNPR ambient light sensor operates over a temperature range of -40°C to 85°C. It features a 6-pin SON package and has a single channel. The device is powered by a supply voltage between 1.6V and 3.6V. It is designed for industrial applications and has a temperature grade of industrial.
Similar Components
INA219BIDCNT
3V-5.5V 26V Max Supervisory IC, 0.5% Acc, SOT-23-8
INA219
High-precision current and voltage monitoring IC with 0.5% accuracy. Features a 3V to 5.5V operating supply voltage range and a maximum input voltage of 26V. This single-amplifier device offers a 100dB Common Mode Rejection Ratio and a low input offset voltage of 40uV. Packaged in an 8-pin SOT-23-8, it operates from -40°C to 125°C and is RoHS compliant.
INA226
Current shunt and power monitor measures shunt voltage and bus supply voltage through an I2C- or SMBus-compatible interface. The device senses bus voltages from 0 V to 36 V and operates from a 2.7 V to 5.5 V supply. It provides 16-bit resolution with programmable calibration, conversion time, averaging, and alert-limit functions. The monitor supports high-side or low-side sensing, 16 programmable addresses, and operation from -40 °C to 125 °C in a 10-pin VSSOP package.
About OPT3001DNPR
The Texas Instruments OPT3001DNPR Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The OPT3001DNPR ambient light sensor operates over a temperature range of -40°C to 85°C. It features a 6-pin SON package and has a single channel. The device is powered by a supply voltage between 1.6V and 3.6V. It is designed for industrial applications and has a temperature grade of industrial.. Key parameters include Eccn Code: EAR99, JEDEC Package Code: S-PDSO-N6, Lead Free: Yes, Length: 2, and Max Operating Temperature: 85. OPT3001DNPR is manufactured by Texas Instruments as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about OPT3001DNPR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | S-PDSO-N6 |
| Lead Free | Yes |
| Length | 2 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| REACH | Compliant |
| RoHS | Yes |
| RS UK | 8,2153000———$1.0241ReelView offer |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 1.6 |
| Supply Voltage-Nom (Vsup) | 3.3 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Width | 2 |
