OP07CP

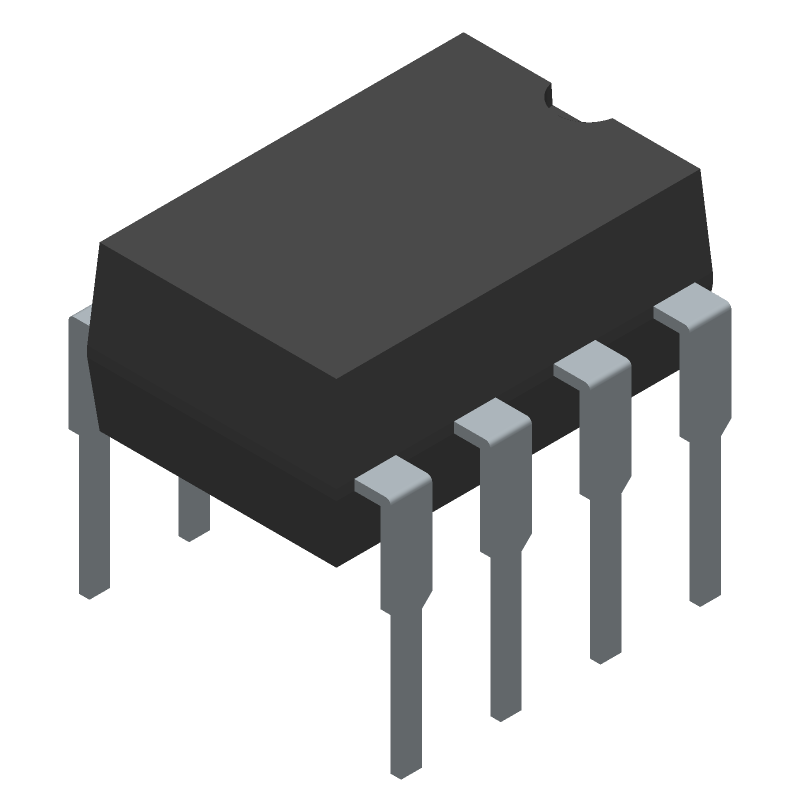

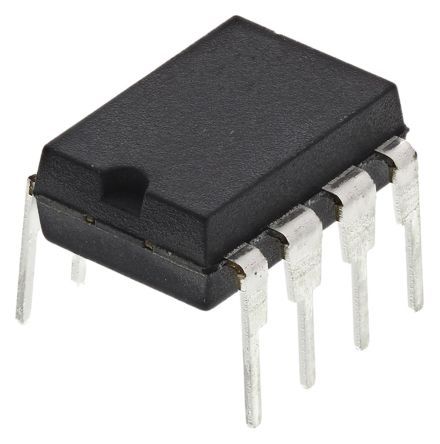

Single operational amplifier with a low input offset voltage of 150µV and a typical offset voltage of 0.25mV. Features a 600kHz gain bandwidth product and a 0.3V/µs slew rate. This general-purpose amplifier operates with dual supply voltages from ±3V to ±9V, with a maximum dual supply of ±18V. Housed in an 8-PDIP package, it offers a 100dB common mode rejection ratio and a voltage gain of 112.04dB. Suitable for operation between 0°C and 70°C, this bipolar technology component is RoHS compliant.
Similar Components
CD4511
The CD4511BF3A is a CMOS decoder/latch IC with 4 inputs and 7 outputs. It operates over a supply voltage range of 3V to 18V and can withstand temperatures between -55°C and 125°C. The device is packaged in a DIP-16 configuration and features a non-inverting polarity. The IC has a propagation delay of 1320ns and a turn-on delay time of 1320ns, with a quiescent current of 100uA. The CD4511BF3A is not radiation hardened and is not RoHS compliant.
NE555DR
Single channel timer IC, operating from 4.5V to 16V, with a frequency range up to 100kHz. Features include 200mA output current capability (both high and low level) and a maximum operating temperature of 70°C. This surface mount component is housed in an 8-pin SOIC package, measuring 4.9mm in length, 3.91mm in width, and 1.58mm in height. It is RoHS compliant and supplied on tape and reel.
LM331
Boost DC/DC converter featuring adjustable output voltage up to 20V and 2A output current. Achieves 93% efficiency with a 2.5V to 7V input voltage range. Integrated op-amp and gate pulse modulation enhance performance. Surface mountable in a 4mm x 4mm WQFN package, operating from -40°C to 125°C.
TL074
IC OP-AMP, Operational Amplifier
CD4001
CMOS NOR Gate IC, featuring 4 independent 2-input NOR gates. Operates with a supply voltage range of 3V to 18V. Offers a propagation delay of 50ns and a quiescent current of 5uA. Packaged in a 14-TSSOP with gold contact plating, suitable for surface mount applications. Rated for an operating temperature range of -55°C to 125°C.
LM386N-1
Single-channel audio amplifier IC featuring 325mW output power into an 8Ω load. Offers a 46dB voltage gain and a 300kHz unity gain bandwidth. Operates from a single supply voltage range of 4V to 12V. Maximum power dissipation is 1.25W, with a quiescent current of 8mA. Packaged in an 8-pin PDIP (DIP-8) format.
About OP07CP
The Texas Instruments OP07CP Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single operational amplifier with a low input offset voltage of 150µV and a typical offset voltage of 0.25mV. Features a 600kHz gain bandwidth product and a 0.3V/µs slew rate. This general-purpose amplifier operates with dual supply voltages from ±3V to ±9V, with a maximum dual supply of ±18V. Housed in an 8-PDIP package, it offers a 100dB common mode rejection ratio and a voltage gain of 112.04dB. Suitable for operation between 0°C and 70°C, this bipolar technology component is RoHS compliant.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 600kHz, Common Mode Rejection Ratio: 100dB, Dual Supply Voltage: 9V, and Gain Bandwidth Product: 600kHz. OP07CP is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OP07CP specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 600kHz |
| Common Mode Rejection Ratio | 100dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 600kHz |
| Height | 4.57mm |
| Input Bias Current | 7nA |
| Input Offset Voltage (Vos) | 150uV |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 150uV |
| Max Operating Temperature | 70°C |
| Min Dual Supply Voltage | 3V |
| Min Operating Temperature | 0°C |
| Nominal Gain Bandwidth Product | 600kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 18V |
| Package/Case | P |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Schukat | 11,600100———$0.4613—View offer |
| Slew Rate | 0.3V/µs |
| Supply Current | 5mA |
| Technology | BIPOLAR |
| Thickness | 3.9mm |
| Unity Gain Bandwidth Product | 600kHz |
| Voltage Gain | 112.04dB |
| Width | 6.35mm |
