OPA333AIDBVR

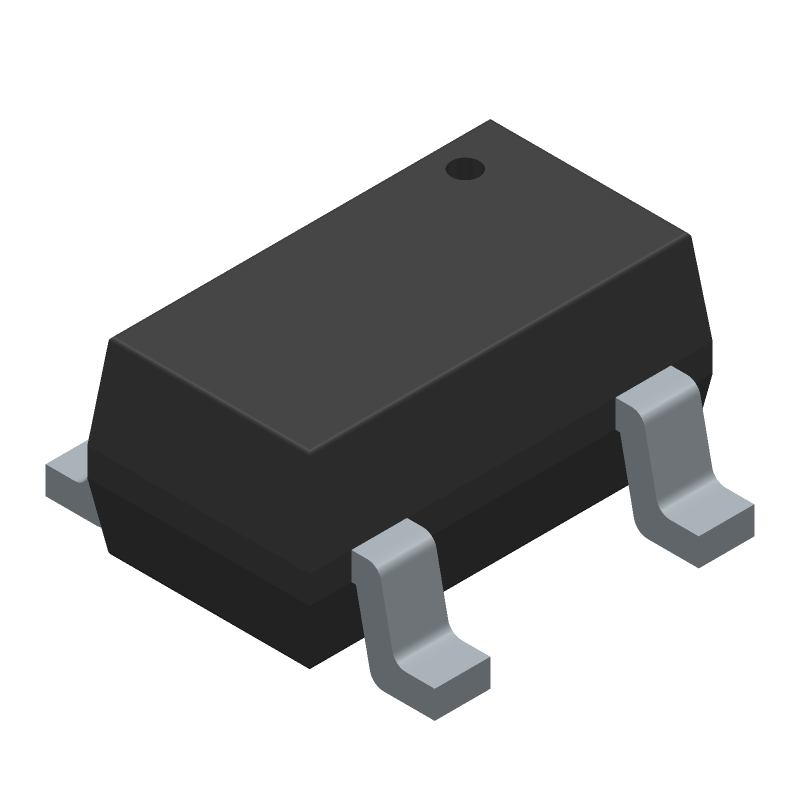

Precision zero-drift CMOS operational amplifier featuring a 350kHz gain bandwidth product and 10µV input offset voltage. This single-channel op amp operates with a low 17µA supply current and a minimum supply voltage of 1.8V, supporting up to 5.5V maximum supply. Achieving 106dB common mode rejection ratio and 120dB power supply rejection ratio, it offers 130dB voltage gain and a 0.16V/µs slew rate. Packaged in a compact SOT-23, this lead-free, RoHS-compliant component is suitable for operation between -40°C and 125°C.
Similar Components
LM3310SQ/NOPB
Boost DC/DC Controller, 2.5-7V In, 20V Out, 2A, 93% Eff, WQFN
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
LM358AN
Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.1V/µs slew rate. This general-purpose op-amp offers 2 channels with a maximum input offset voltage of 2mV and a common mode rejection ratio of 65dB. Designed for through-hole mounting in a PDIP package, it operates with single or dual supplies from 3V to 32V, with a typical operating supply voltage of 16V and a maximum output current of 40mA per channel.
CD4017BE
The CD4017BE is a 10-bit counter IC from Texas Instruments, packaged in a DIP with a through-hole mount. It features a positive edge trigger type and operates over a temperature range of -55°C to 125°C. This lead-free device is RoHS compliant and suitable for use in synchronous applications.
UA7805QKC
3 Pin 1.5A Fixed 5V Positive Voltage Regulator 3-TO-220 -40 to 125
CD4543BE
CMOS BCD-to-7-Seg Decoder/Driver, LCD, 4-Input, 7-Output
About OPA333AIDBVR
The Texas Instruments OPA333AIDBVR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Precision zero-drift CMOS operational amplifier featuring a 350kHz gain bandwidth product and 10µV input offset voltage. This single-channel op amp operates with a low 17µA supply current and a minimum supply voltage of 1.8V, supporting up to 5.5V maximum supply. Achieving 106dB common mode rejection ratio and 120dB power supply rejection ratio, it offers 130dB voltage gain and a 0.16V/µs slew rate. Packaged in a compact SOT-23, this lead-free, RoHS-compliant component is suitable for operation between -40°C and 125°C.. Key parameters include Bandwidth: 350kHz, Common Mode Rejection Ratio: 106dB, Gain Bandwidth Product: 350kHz, Height: 1.45mm, and Input Bias Current: 200pA. OPA333AIDBVR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA333AIDBVR specifications
Click to ask a quick question:
Parameters
| Bandwidth | 350kHz |
| Common Mode Rejection Ratio | 106dB |
| Gain Bandwidth Product | 350kHz |
| Height | 1.45mm |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 10uV |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Dual Supply Voltage | 2.75V |
| Max I/O Voltage | 10uV |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 900mV |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 17uA |
| Operating Supply Voltage | 2.75V |
| Output Current | 5mA |
| Output Current per Channel | 5mA |
| Package/Case | SOT-23 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 120dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 0.16V/µs |
| Supply Current | 25uA |
| Technology | CMOS |
| Thickness | 1.2mm |
| Unity Gain Bandwidth Product | 350kHz |
| Voltage Gain | 130dB |
| Width | 1.6mm |
