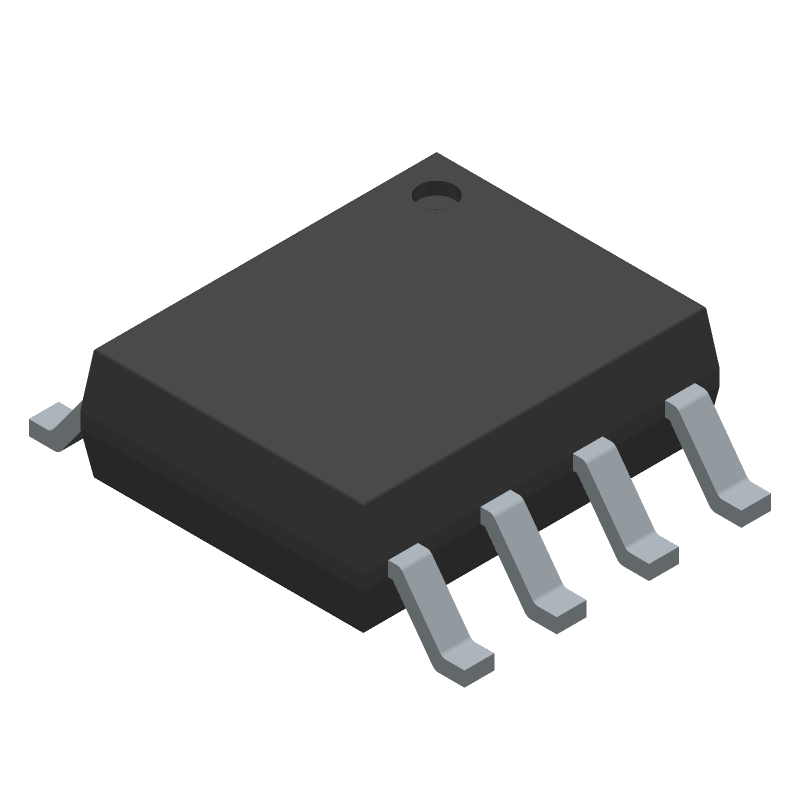

NE5534DR
Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and a 38mA output current per channel. It operates from a 5V to 15V dual supply voltage and has a 70dB common mode rejection ratio. The component is housed in an 8-SOIC package, suitable for operation between 0°C and 70°C, and is RoHS compliant.
Similar Components
LM2904D
Dual-channel, general-purpose operational amplifier featuring a 700kHz gain bandwidth product and 0.3V/µs slew rate. This bipolar IC offers a wide operating supply voltage range from 3V to 26V, with a maximum dual supply voltage of 13V. Designed for surface mounting, it comes in an 8-SOIC package with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H). Operating across a temperature range of -40°C to 125°C, it provides 100dB voltage gain and 30mA output current per channel.
CD4027BE
JK Flip-Flop IC, 2-Element, 24MHz, 18V, PDIP, CMOS
LM3914
10-channel dot/bar display driver IC for LCD applications. Features 10 outputs, each capable of driving up to 30mA. Operates from a 3V to 25V supply voltage with a typical supply current of 6.1mA. Packaged in a 20-PLCC surface-mount format, this lead-free and RoHS-compliant component offers a maximum power dissipation of 1.365W and operates within a temperature range of 0°C to 70°C.
LMD18200
Dual H-bridge motor driver IC for brushed DC motors, featuring a maximum supply voltage of 55V and a maximum output current of 3A per channel. This through-hole component, housed in a TO-220 package, offers a parallel interface for control and operates from a minimum supply voltage of 12V. It provides two independent output channels, with an operating supply current of 13mA. The device is RoHS compliant and lead-free.
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4001UBPW
4-Ch CMOS NOR Gate IC, 3-18V, 2-Input, 50ns, 14-TSSOP
About NE5534DR
The Texas Instruments NE5534DR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and a 38mA output current per channel. It operates from a 5V to 15V dual supply voltage and has a 70dB common mode rejection ratio. The component is housed in an 8-SOIC package, suitable for operation between 0°C and 70°C, and is RoHS compliant.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 10MHz, Common Mode Rejection Ratio: 70dB, Gain Bandwidth Product: 10MHz, and Input Bias Current: 1.5uA. NE5534DR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about NE5534DR specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 10MHz |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1.5uA |
| Input Offset Voltage (Vos) | 500uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Max I/O Voltage | 4mV |
| Max Operating Temperature | 70°C |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | 0°C |
| Nominal Gain Bandwidth Product | 10MHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 4mA |
| Operating Supply Voltage | 15V |
| Output Current | 38mA |
| Output Current per Channel | 38mA |
| Package/Case | D |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 4mA |
| Technology | BIPOLAR |
| TME | —1$0.8$0.53——pcsView offer |
| Voltage Gain | 100dB |
