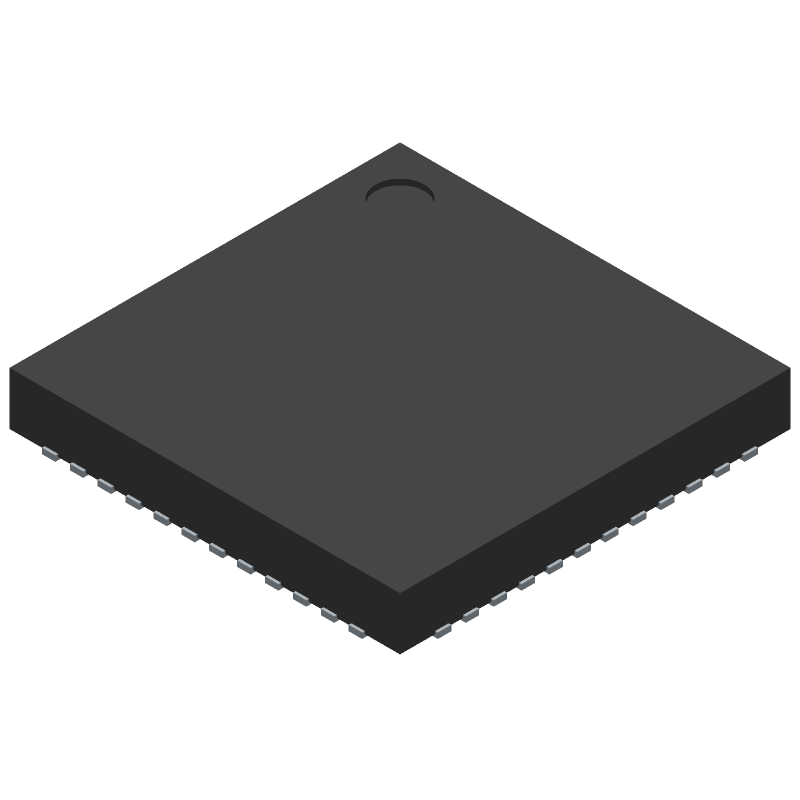

CC2652R1FRGZR
32-bit Arm Cortex-M4F multiprotocol wireless microcontroller featuring 352kB Flash and 81920 bytes RAM. Operates across an industrial temperature range of -40°C to 105°C with a supply voltage from 1.8V to 3.8V. This 48-terminal QUAD package device offers 31 I/O lines, PWM channels, ADC, and DMA channels.
Similar Components
CC2541EMK
KIT EVAL MODULE FOR CC2541
CC1101RTK
RF Transceiver IC, 300-928MHz, 600Kbps, SPI, VQFN, 10dBm
CC2500RTKR
2.4GHz RF Transceiver IC, VQFN EP package with gold contact plating. Features SPI interface, 500Kbps data rate, and -104dBm sensitivity. Operates with 1.8V to 3.6V supply, drawing 19.6mA receive and 21.5mA transmit current. Offers 1dBm output power and a temperature range of -40°C to 85°C. Surface mountable, RoHS compliant, and supplied on tape and reel.
CC2591RGVR
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
CC2591
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
CC2500-RTY1
2.4GHz RF Transceiver IC, SPI, VQFN EP, 500Kbps, 1.8-3.6V
About CC2652R1FRGZR
The Texas Instruments CC2652R1FRGZR Rf Wireless datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 32-bit Arm Cortex-M4F multiprotocol wireless microcontroller featuring 352kB Flash and 81920 bytes RAM. Operates across an industrial temperature range of -40°C to 105°C with a supply voltage from 1.8V to 3.8V. This 48-terminal QUAD package device offers 31 I/O lines, PWM channels, ADC, and DMA channels.. Key parameters include Bit Size: 32, DAC Channels: NO, DMA Channels: YES, Has ADC: YES, and JEDEC Package Code: S-PQCC-N48. CC2652R1FRGZR is manufactured by Texas Instruments as part of their Rf Wireless product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Rf Wireless
Ask AI Assistant
Ask questions about CC2652R1FRGZR specifications
Click to ask a quick question:
Parameters
| Bit Size | 32 |
| DAC Channels | NO |
| DMA Channels | YES |
| Has ADC | YES |
| JEDEC Package Code | S-PQCC-N48 |
| Lead Free | Yes |
| Length | 7 |
| Max Operating Temperature | 105 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of I/O Lines | 31 |
| Number of Terminals | 48 |
| PWM Channels | YES |
| RAM (bytes) | 81920 |
| REACH | Compliant |
| RoHS | Yes |
| ROM Programmability | FLASH |
| ROM (words) | 360448 |
| Speed | 48 |
| Supply Voltage-Max | 3.8 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Nom | 3 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Width | 7 |
