OP07CDR

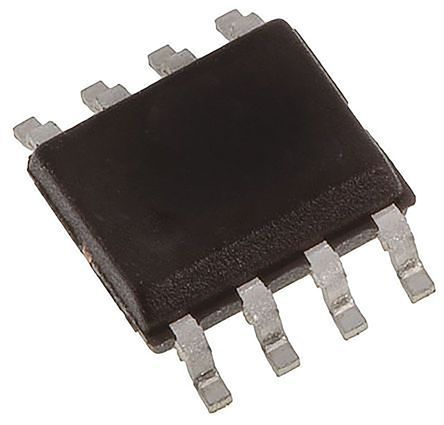

Single operational amplifier featuring a low input offset voltage of 150µV and a low offset voltage of 0.25mV. This general-purpose amplifier offers a 600kHz bandwidth and a gain bandwidth product of 600kHz. It operates with a dual supply voltage range of 3V to 18V, providing a typical supply current of 5mA and an output current per channel of 10mA. The amplifier boasts a high common mode rejection ratio of 100dB and a slew rate of 0.3V/µs. Packaged in an 8-SOIC (D) case, this RoHS compliant component is suitable for operation between 0°C and 70°C.
Similar Components
CD4066
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
TPA3116
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
NE5532
DUAL OP-AMP, 4000uV OFFSET-MAX, 10MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8
LM339D
Quad differential comparator IC featuring four independent channels. Operates with dual supply voltages from 1V to 15V, or a single supply from 2V to 30V. Offers a maximum supply current of 500µA and an output current per channel of 6mA. Packaged in a 14-SOIC surface-mount case with a response time of 0.3µs. This RoHS compliant component has a maximum operating temperature of 70°C.
DRV8825PWPR
45V 2.5A Stepper Motor Driver IC, HTSSOP, 1/32 Microstepping
CD4069
CMOS Hex Inverter 14-CDIP -55 to 125
About OP07CDR
The Texas Instruments OP07CDR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single operational amplifier featuring a low input offset voltage of 150µV and a low offset voltage of 0.25mV. This general-purpose amplifier offers a 600kHz bandwidth and a gain bandwidth product of 600kHz. It operates with a dual supply voltage range of 3V to 18V, providing a typical supply current of 5mA and an output current per channel of 10mA. The amplifier boasts a high common mode rejection ratio of 100dB and a slew rate of 0.3V/µs. Packaged in an 8-SOIC (D) case, this RoHS compliant component is suitable for operation between 0°C and 70°C.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 600kHz, Common Mode Rejection Ratio: 100dB, Gain Bandwidth Product: 600kHz, and Input Bias Current: 7nA. OP07CDR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OP07CDR specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 600kHz |
| Common Mode Rejection Ratio | 100dB |
| Gain Bandwidth Product | 600kHz |
| Input Bias Current | 7nA |
| Input Offset Voltage (Vos) | 150uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 150uV |
| Max Operating Temperature | 70°C |
| Min Dual Supply Voltage | 3V |
| Min Operating Temperature | 0°C |
| Nominal Gain Bandwidth Product | 600kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 18V |
| Output Current per Channel | 10mA |
| Package/Case | D |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quest | 86065——$0.387——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 1,50025—$0.324——PackView offer |
| Schukat | 11,700100———$0.2156—View offer |
| Slew Rate | 0.3V/µs |
| Supply Current | 5mA |
| Technology | BIPOLAR |
| Thickness | 1.58mm |
| Unity Gain Bandwidth Product | 600kHz |
| Voltage Gain | 112.04dB |
