LM3875

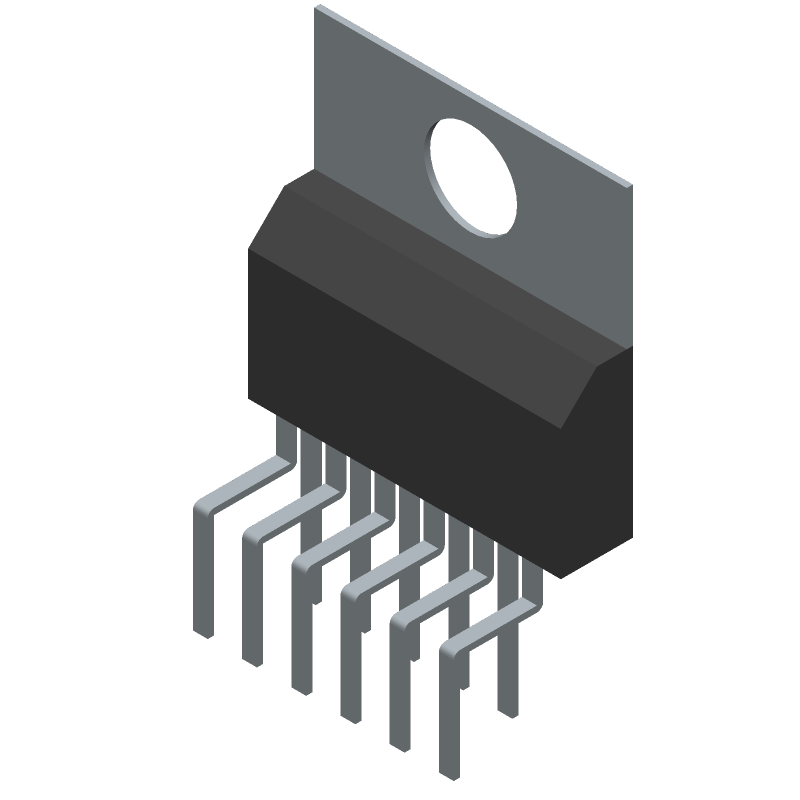

High-performance 56W audio power amplifier in a TO-220 package. Features 8MHz bandwidth, 120dB common mode rejection ratio, and 120dB power supply rejection ratio. Supports dual supply voltages up to 42V and single/dual supply types. Delivers 56W output power with 6A output current and an 8 Ohm load impedance. Operating temperature range from -20°C to 85°C.
Similar Components
LM2901DR
Quad differential comparator IC, featuring 4 independent comparator channels. Operates with a wide supply voltage range from 1V to 30V, with a maximum dual supply voltage of 15V. Offers a typical response time of 1.3µs and a voltage gain of 100dB. Designed for surface mounting in a SOIC package, this component boasts a maximum operating temperature of 125°C and a minimum of -40°C. Key electrical characteristics include an input bias current of 250nA and an input offset voltage of 7mV.
LM3914VX/NOPB
10-Ch Dot/Bar Display Driver IC, 3-25V, 30mA Output, PLCC
LM339D
Quad differential comparator IC featuring four independent channels. Operates with dual supply voltages from 1V to 15V, or a single supply from 2V to 30V. Offers a maximum supply current of 500µA and an output current per channel of 6mA. Packaged in a 14-SOIC surface-mount case with a response time of 0.3µs. This RoHS compliant component has a maximum operating temperature of 70°C.
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
OPA333AIDBVT
Precision zero-drift CMOS operational amplifier featuring a 350kHz bandwidth and 17µA operating supply current. This single-channel op amp offers a low input offset voltage of 10µV and high CMRR of 106dB, operating from a minimum supply voltage of 1.8V up to 5.5V. Designed for precision applications, it boasts a 120dB PSRR and a 0.16V/µs slew rate, packaged in a compact SOT-23 for efficient integration.
About LM3875
The Texas Instruments LM3875 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-performance 56W audio power amplifier in a TO-220 package. Features 8MHz bandwidth, 120dB common mode rejection ratio, and 120dB power supply rejection ratio. Supports dual supply voltages up to 42V and single/dual supply types. Delivers 56W output power with 6A output current and an 8 Ohm load impedance. Operating temperature range from -20°C to 85°C.. Key parameters include Bandwidth: 8MHz, Common Mode Rejection Ratio: 120dB, Dual Supply Voltage: 28V, Gain Bandwidth Product: 8MHz, and Height: 19.58mm. LM3875 is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM3875 specifications
Click to ask a quick question:
Parameters
| Bandwidth | 8MHz |
| Common Mode Rejection Ratio | 120dB |
| Dual Supply Voltage | 28V |
| Gain Bandwidth Product | 8MHz |
| Height | 19.58mm |
| Input Bias Current | 1uA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Contains Lead |
| Length | 20.02mm |
| Load Impedance | 8R |
| Max Dual Supply Voltage | 42V |
| Max Operating Temperature | 85°C |
| Max Output Power | 56W |
| Max Power Dissipation | 125W |
| Max Supply Voltage | 84V |
| Min Dual Supply Voltage | 10V |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 20V |
| Number of Channels | 1 |
| Operating Supply Voltage | 28V |
| Output Current | 6A |
| Output Power | 56W |
| Package/Case | TO-220 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 125W |
| Power Supply Rejection Ratio (PSRR) | 120dB |
| Quiescent Current | 30mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Overture™ |
| Slew Rate | 11V/µs |
| Supply Current | 30mA |
| Supply Type | Single, Dual |
| Termination | Through Hole |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 120dB |
| Width | 4.5mm |
