LM2903DR

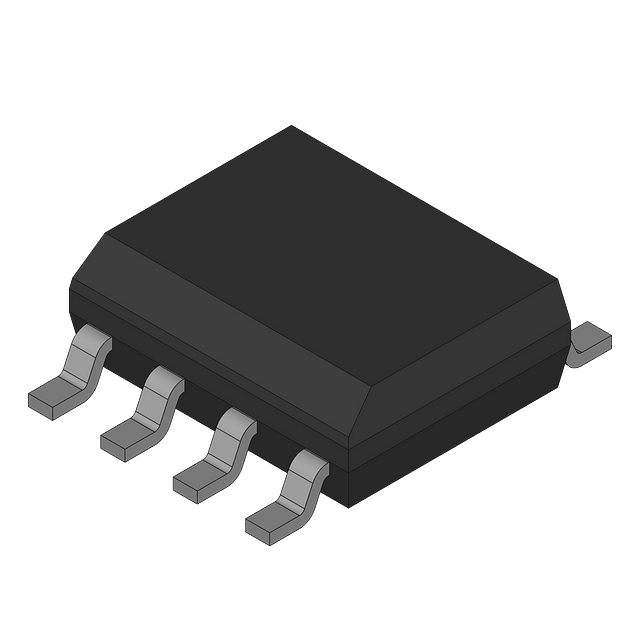

Dual differential comparator, automotive grade, featuring two independent channels. Operates with a wide supply voltage range from 1V to 36V, with a maximum dual supply voltage of 18V. Offers a fast response time of 1.3µs and a high voltage gain of 100dB. Input bias and input current are 250nA, with an input offset voltage of 7mV. Output compatibility includes CMOS and TTL, with an output current of 20mA per channel. Packaged in a lead-free, RoHS-compliant SOIC surface mount package, suitable for operation between -40°C and 125°C.
Similar Components
MAX232
Dual EIA-232 driver and receiver in a 16-PDIP through-hole package. Features 2 drivers and 2 receivers for full-duplex communication, supporting data rates up to 120Kbps. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a wide temperature range of -40°C to 85°C. Includes 8 I/Os with 500mV receiver hysteresis and a propagation delay of 0.5us. This RoHS compliant component is lead-free.
CD4029BE
4-Bit Binary/Decade Counter IC, CMOS, 11MHz, 18V, DIP
MAX232D
Dual Transmitter/Receiver RS-232 Interface IC, full duplex operation with two transmitters and two receivers. Features 120Kbps data rate, 5V operating supply voltage (4.5V to 5.5V range), and 10mA max supply current. Surface mountable in a 16-pin SOIC package (3.91mm width, 9.9mm length, 1.58mm height) with ESD protection. Operating temperature range from -40°C to 85°C, lead-free and RoHS compliant.
TL072
The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/µs), and common-mode input to the positive supply. High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to +125°C range enable the TL07xH devices for use in the most rugged and demanding applications.
LM324N
Four-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 100dB voltage gain. This bipolar IC offers a 40mA output current per channel and operates with single or dual supplies from 3V to 32V. Key specifications include an 80dB common mode rejection ratio and a 1.5mA operating supply current. Packaged in a 14-PDIP, this component is suitable for operation between 0°C and 70°C.
CD4001UBPW
4-Ch CMOS NOR Gate IC, 3-18V, 2-Input, 50ns, 14-TSSOP
About LM2903DR
The Texas Instruments LM2903DR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual differential comparator, automotive grade, featuring two independent channels. Operates with a wide supply voltage range from 1V to 36V, with a maximum dual supply voltage of 18V. Offers a fast response time of 1.3µs and a high voltage gain of 100dB. Input bias and input current are 250nA, with an input offset voltage of 7mV. Output compatibility includes CMOS and TTL, with an output current of 20mA per channel. Packaged in a lead-free, RoHS-compliant SOIC surface mount package, suitable for operation between -40°C and 125°C.. Key parameters include Input Bias Current: 250nA, Input Offset Voltage (Vos): 7mV, Lead Free: Lead Free, Max Dual Supply Voltage: 18V, and Max Input Current: 250nA. LM2903DR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM2903DR specifications
Click to ask a quick question:
Parameters
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Max Input Current | 250nA |
| Max Operating Temperature | 125°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 1V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Compatibility | CMOS |
| Output Current | 20mA |
| Output Current per Channel | 6mA |
| Output Type | TTL |
| Package/Case | SOIC |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Thickness | 1.58mm |
| Voltage Gain | 100dB |
| Weight | 0.002561oz |
