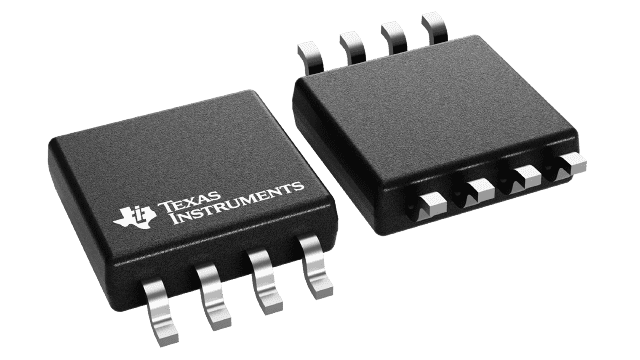

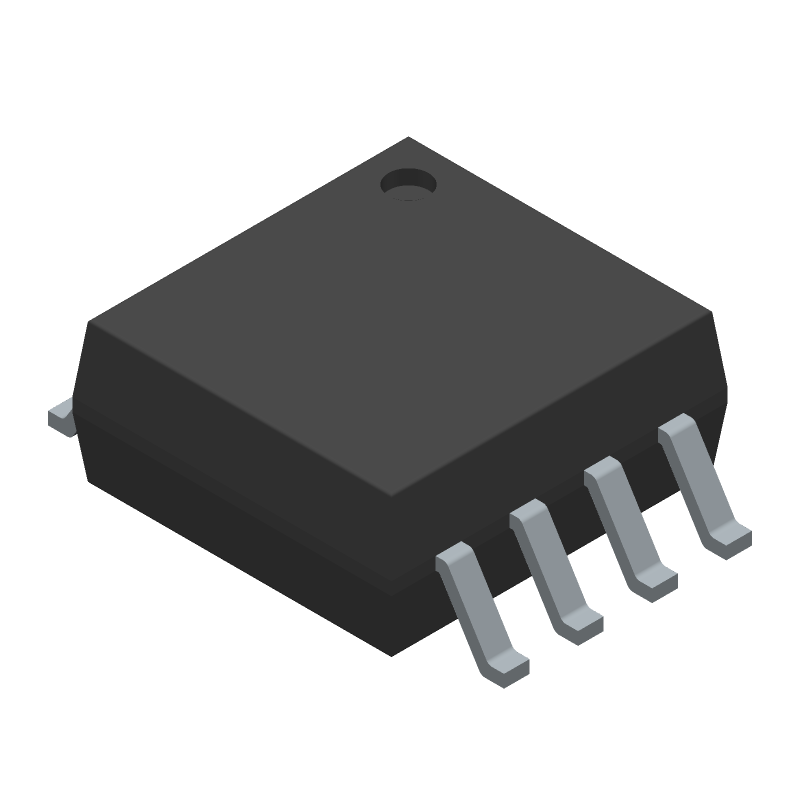

PCA9306DCTR
2-bit bidirectional voltage level translator for I2C and SMBus applications, operating up to 400 kHz. Features 2 channels with 2 inputs and 2 outputs, supporting a supply voltage range of 0V to 5V. Offers a maximum output current of 64mA and a propagation delay of 900ps. Packaged in an 8-pin SSOP, this RoHS compliant component operates from -40°C to 85°C.
Similar Components
CD4011BE
CMOS logic IC featuring four independent 2-input NAND gates. Operates with a supply voltage range of 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. The component boasts a propagation delay of 90ns and is housed in a 14-pin PDIP package with gold contact plating, suitable for through-hole mounting. With a maximum operating temperature of 125°C and RoHS compliance, this integrated circuit is designed for reliable performance.
SN75176BDR
Differential bus transceiver, half-duplex, featuring a single driver and receiver for robust data communication. Operates with a supply voltage of 5V (4.75V to 5.25V) and supports data rates up to 10Mbps. This integrated circuit is housed in an 8-SOIC package, with a maximum operating temperature of 70°C. RoHS compliant and lead-free, it offers an output current of 60mA and an operating supply current of 70mA.
LM358D
Dual operational amplifier featuring a 700kHz bandwidth and 100dB voltage gain. This general-purpose op-amp offers a 0.3V/µs slew rate and operates with a wide supply voltage range from 3V to 32V. Designed for surface mounting, it comes in an 8-SOIC package with a 65dB common mode rejection ratio. The component boasts a 250nA input bias current and 7mV input offset voltage, with a typical operating supply current of 1mA.
TL072CD
Dual low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This general-purpose op-amp offers a 13V/µs slew rate and 106.02dB voltage gain. It operates with dual supply voltages ranging from 3.5V to 18V, with a maximum dual supply voltage of 18V. The component boasts a low input bias current of 200pA and an input offset voltage of 3mV. Housed in a lead-free 8-SOIC package (D), it operates across a wide temperature range of -40°C to 85°C.
LMC6482AIM
Dual operational amplifier featuring rail-to-rail input and output capabilities. Achieves ultra-low input bias current of 0.02pA and a low input offset voltage of 110µV. Offers a 1.5MHz bandwidth and 1.3V/µs slew rate. Operates from 3V to 15.5V supply voltages with a typical 1.3mA supply current. Housed in an 8-SOIC surface mount package.
TPA3116D2DAD
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
About PCA9306DCTR
The Texas Instruments PCA9306DCTR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2-bit bidirectional voltage level translator for I2C and SMBus applications, operating up to 400 kHz. Features 2 channels with 2 inputs and 2 outputs, supporting a supply voltage range of 0V to 5V. Offers a maximum output current of 64mA and a propagation delay of 900ps. Packaged in an 8-pin SSOP, this RoHS compliant component operates from -40°C to 85°C.. Key parameters include Channel Type: Bidirectional, Lead Free: Lead Free, Logic Function: Translator, Max Operating Temperature: 85°C, and Max Supply Voltage: 5V. PCA9306DCTR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PCA9306DCTR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Lead Free | Lead Free |
| Logic Function | Translator |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 0V |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Output Current | 64mA |
| Output Type | I2C |
| Package/Case | SSOP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 900ps |
| Quest | 24413$0.8—$0.5——View offer |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 2,67525—$0.6665——ReelView offer |
| Thickness | 1.29mm |
| Turn-On Delay Time | 1.2ns |
| Weight | 0.000825oz |
