INA126PA
Single-channel instrumentation amplifier featuring a 200kHz bandwidth and 80dB voltage gain. Offers a high Common Mode Rejection Ratio of 74dB and Power Supply Rejection Ratio of 106dB. Operates with dual supply voltages from ±1.35V to ±18V, or single supply from 2.7V to 36V, with a low operating supply current of 175µA. Input bias current is 50nA, and input offset voltage is 500µV. Packaged in an 8-pin PDIP with through-hole termination, this RoHS compliant component is suitable for a wide temperature range of -55°C to 125°C.
Similar Components
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
CD4029
CMOS 4-bit bidirectional asynchronous binary/decade UP/Down counter. Features positive edge clock triggering, asynchronous reset, and a maximum operating frequency of 11MHz. Operates from a 3V to 18V supply voltage range with a wide temperature range of -55°C to 125°C. Packaged in a 16-pin PDIP for through-hole mounting.
LM555CN/NOPB
Timer IC, Single, 100kHz, 4.5-16V, 0-70°C, PDIP
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
OPA2134
Precision dual operational amplifier featuring 8MHz gain bandwidth product and 20V/µs slew rate. Offers low noise and distortion with 500µV input offset voltage and 5pA input bias current. Operates with dual supply voltages from 2.5V to 36V, supporting up to 18V dual supply. Delivers 35mA output current per channel and 120dB voltage gain, with 86dB common mode rejection ratio. Packaged in an 8-SOIC (D) case, this RoHS compliant component operates from -40°C to 85°C.

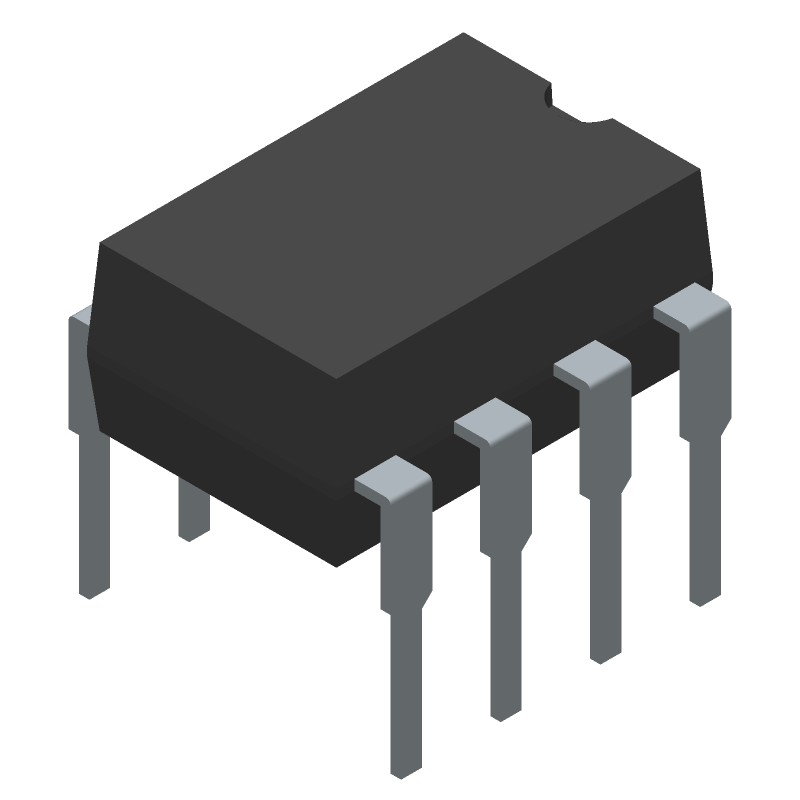

About INA126PA
The Texas Instruments INA126PA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-channel instrumentation amplifier featuring a 200kHz bandwidth and 80dB voltage gain. Offers a high Common Mode Rejection Ratio of 74dB and Power Supply Rejection Ratio of 106dB. Operates with dual supply voltages from ±1.35V to ±18V, or single supply from 2.7V to 36V, with a low operating supply current of 175µA. Input bias current is 50nA, and input offset voltage is 500µV. Packaged in an 8-pin PDIP with through-hole termination, this RoHS compliant component is suitable for a wide temperature range of -55°C to 125°C.. Key parameters include -3db Bandwidth: 200kHz, Bandwidth: 200kHz, Common Mode Rejection Ratio: 74dB, Dual Supply Voltage: 15V, and Gain Bandwidth Product: 200kHz. INA126PA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about INA126PA specifications
Click to ask a quick question:
Parameters
| -3db Bandwidth | 200kHz |
| Bandwidth | 200kHz |
| Common Mode Rejection Ratio | 74dB |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 200kHz |
| Height | 4.57mm |
| Input Bias Current | 50nA |
| Input Offset Voltage (Vos) | 500uV |
| Input Resistance | 1GR |
| Input Voltage Noise Density | 35nV/sqrt Hz |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 18V |
| Max Operating Temperature | 125°C |
| Max Supply Current | 200uA |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 1.35V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2.7V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Operating Supply Current | 175uA |
| Output Current per Channel | 10mA |
| Package/Case | P |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 106dB |
| Quiescent Current | 175uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
| Supply Current | 200uA |
| Termination | Through Hole |
| Voltage Gain | 80dB |
| Weight | 0.018455oz |
| Width | 6.35mm |
