INA240A1PWR

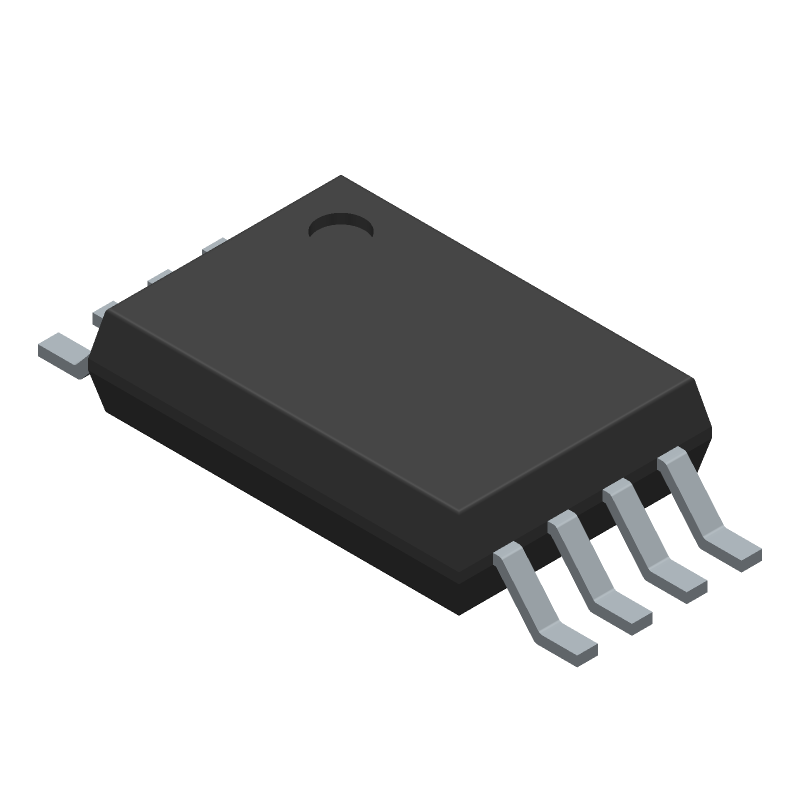

Bidirectional current sense amplifier, operating from 2.7V to 5.5V supply, features a wide input common-mode voltage range of -4V to 80V. This ultra-precise amplifier offers enhanced Pulse Width Modulation (PWM) rejection. Housed in an 8-terminal TSSOP package, it operates across an automotive temperature grade from -40°C to 125°C.
Similar Components
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
OPA333AIDBVT
Precision zero-drift CMOS operational amplifier featuring a 350kHz bandwidth and 17µA operating supply current. This single-channel op amp offers a low input offset voltage of 10µV and high CMRR of 106dB, operating from a minimum supply voltage of 1.8V up to 5.5V. Designed for precision applications, it boasts a 120dB PSRR and a 0.16V/µs slew rate, packaged in a compact SOT-23 for efficient integration.
OPA2134PA
Dual operational amplifier for audio applications, featuring low distortion and low noise. This FET-input amplifier offers a gain bandwidth product of 8MHz and a high voltage gain of 120dB. It operates with dual supply voltages ranging from ±2.5V to ±18V, or a single supply from 5V to 36V. Key specifications include a 35mA output current per channel, 100pA input bias current, and a slew rate of 20V/µs. Packaged in an 8-PDIP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
LM567CM/NOPB
Tone Decoder IC, 0.5MHz, 4.75-9V, SOIC
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4001BE
CMOS NOR gate IC featuring four independent 2-input NOR elements. This integrated circuit utilizes push-pull output stages and operates within a wide temperature range of -55°C to 125°C. Housed in a 14-pin PDIP plastic dual in-line package with through-hole mounting, it offers a 2.54mm pin pitch and conforms to the MS-001AA Jedec standard.
About INA240A1PWR
The Texas Instruments INA240A1PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Bidirectional current sense amplifier, operating from 2.7V to 5.5V supply, features a wide input common-mode voltage range of -4V to 80V. This ultra-precise amplifier offers enhanced Pulse Width Modulation (PWM) rejection. Housed in an 8-terminal TSSOP package, it operates across an automotive temperature grade from -40°C to 125°C.. Key parameters include JEDEC Package Code: R-PDSO-G8, Lead Free: Yes, Length: 4.4, Max Operating Temperature: 125, and Military Spec: False. INA240A1PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about INA240A1PWR specifications
Click to ask a quick question:
Parameters
| JEDEC Package Code | R-PDSO-G8 |
| Lead Free | Yes |
| Length | 4.4 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Quest | 694——$2.52——View offer |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 5.5 |
| Supply Voltage-Min (Vsup) | 2.7 |
| Supply Voltage-Nom (Vsup) | 5 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Width | 3 |
