LM324DR

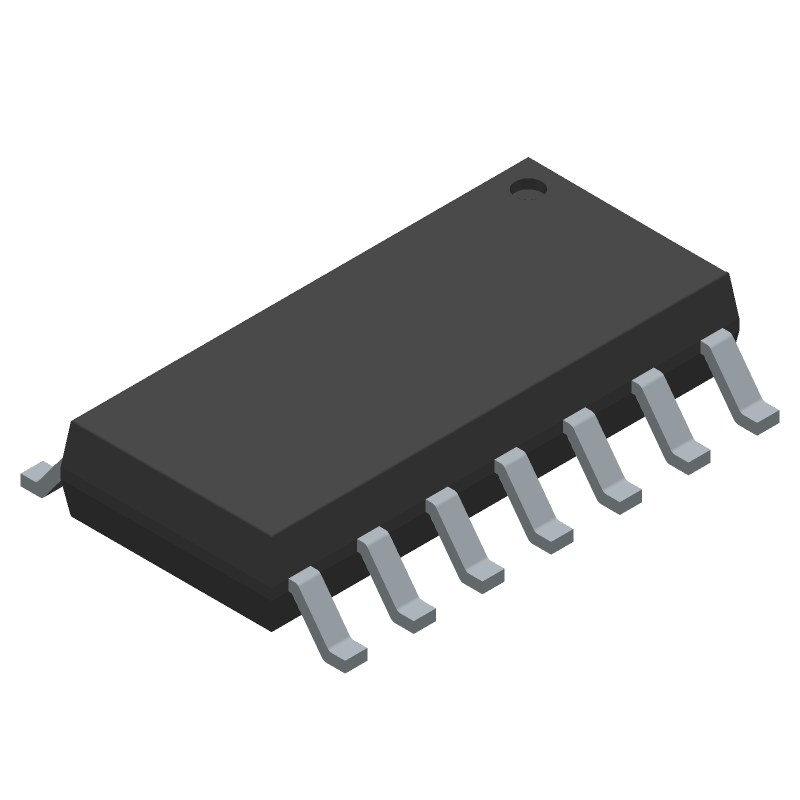

Four-channel general-purpose operational amplifier featuring a 1.2MHz bandwidth and 100dB voltage gain. This surface mount device operates from a 3V to 32V supply range, with a typical 1.4mA operating supply current. It offers a 65dB common mode rejection ratio and a 0.5V/µs slew rate, packaged in a 14-SOIC for tape and reel distribution.
Similar Components
CD4029
CMOS 4-bit bidirectional asynchronous binary/decade UP/Down counter. Features positive edge clock triggering, asynchronous reset, and a maximum operating frequency of 11MHz. Operates from a 3V to 18V supply voltage range with a wide temperature range of -55°C to 125°C. Packaged in a 16-pin PDIP for through-hole mounting.
CD4017BE
The CD4017BE is a 10-bit counter IC from Texas Instruments, packaged in a DIP with a through-hole mount. It features a positive edge trigger type and operates over a temperature range of -55°C to 125°C. This lead-free device is RoHS compliant and suitable for use in synchronous applications.
OPA2134
Precision dual operational amplifier featuring 8MHz gain bandwidth product and 20V/µs slew rate. Offers low noise and distortion with 500µV input offset voltage and 5pA input bias current. Operates with dual supply voltages from 2.5V to 36V, supporting up to 18V dual supply. Delivers 35mA output current per channel and 120dB voltage gain, with 86dB common mode rejection ratio. Packaged in an 8-SOIC (D) case, this RoHS compliant component operates from -40°C to 85°C.
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
INA219AIDR
Bidirectional current and power monitor IC featuring zero-drift technology for high accuracy. Achieves 1% accuracy with a low input offset voltage of 10µV and 100dB common mode rejection ratio. Operates from a 3V to 5.5V supply, consuming 1mA operating supply current. Packaged in a lead-free SOIC with dimensions of 4.9mm x 3.91mm x 1.75mm, suitable for operation between -40°C and 125°C.
LM358
Dual, 30-V, 700-kHz operational amplifier
About LM324DR
The Texas Instruments LM324DR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Four-channel general-purpose operational amplifier featuring a 1.2MHz bandwidth and 100dB voltage gain. This surface mount device operates from a 3V to 32V supply range, with a typical 1.4mA operating supply current. It offers a 65dB common mode rejection ratio and a 0.5V/µs slew rate, packaged in a 14-SOIC for tape and reel distribution.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 1.2MHz, Common Mode Rejection Ratio: 65dB, Gain Bandwidth Product: 1.2MHz, and Input Bias Current: 250nA. LM324DR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM324DR specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.2MHz |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 16V |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 32V |
| Min Dual Supply Voltage | 1.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 16V |
| Output Current | 30mA |
| Output Current per Channel | 40mA |
| Package/Case | SOIC |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 0.5V/µs |
| Supply Current | 3mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1.2MHz |
| Voltage Gain | 100dB |
