UA741
The uA741 is a general-purpose operational amplifier featuring offset-voltage null capability. The high common-mode...
Similar Components
NE555
The NE555 is a versatile timer IC used for precise timing, delays, and oscillations. Known for simple, reliable operation in mono-stable, astable modes using external R/C components, and drives loads up to 200mA, bridging analog/digital worlds with TTL compatibility, though modern CMOS versions (like TS555) offer lower power.
MMBT3904-1AM(RANGE:100-300)
NPN bipolar junction transistor in a SOT-23 package, featuring a 40V collector-emitter breakdown voltage and a 200mA maximum collector current. This surface mount device offers a minimum DC current gain (hFE) of 100 and a transition frequency of 270MHz. It operates within a temperature range of -65°C to 150°C and has a maximum power dissipation of 350mW. Compliant with RoHS and REACH SVHC standards, this component is lead-free.
L293B
Four-channel push-pull driver IC for brushed DC motors. Features a parallel interface and operates from a 4.5V to 36V supply voltage, with a typical operating voltage of 24V. Delivers up to 2A maximum output current per channel. Packaged in a DIP through-hole mount, measuring 20mm in length, 7.1mm in width, and 5.1mm in height. RoHS compliant and lead-free.
TDA7297
2-Channel Stereo Audio Amplifier IC, Class-AB, delivering 15W per channel. Features a 15-pin MULTIWATT V package with through-hole mounting. Operates with a single supply voltage ranging from 6.5V to 18V, with a typical operating voltage of 15V. Offers a gain of 32dB and a Power Supply Rejection Ratio (PSRR) of 56dB. Maximum output current is 2A, with a quiescent current of 50mA. RoHS compliant.
TDA7388
Audio Amp Speaker 4-CH Stereo 26W Class-AB Automotive 25-Pin(25+Tab) FLEXIWATT(Vertical) Tube
TIP127
PNP Complementary Power Darlington Transistor in TO-220 package. Features a 100V Collector-Emitter Voltage (VCEO) and a 5A Max Collector Current. Offers a minimum DC current gain (hFE) of 1000 and a maximum power dissipation of 65W. Designed for through-hole mounting with a lead-free, RoHS-compliant construction. Operating temperature range from -65°C to 150°C.
About UA741

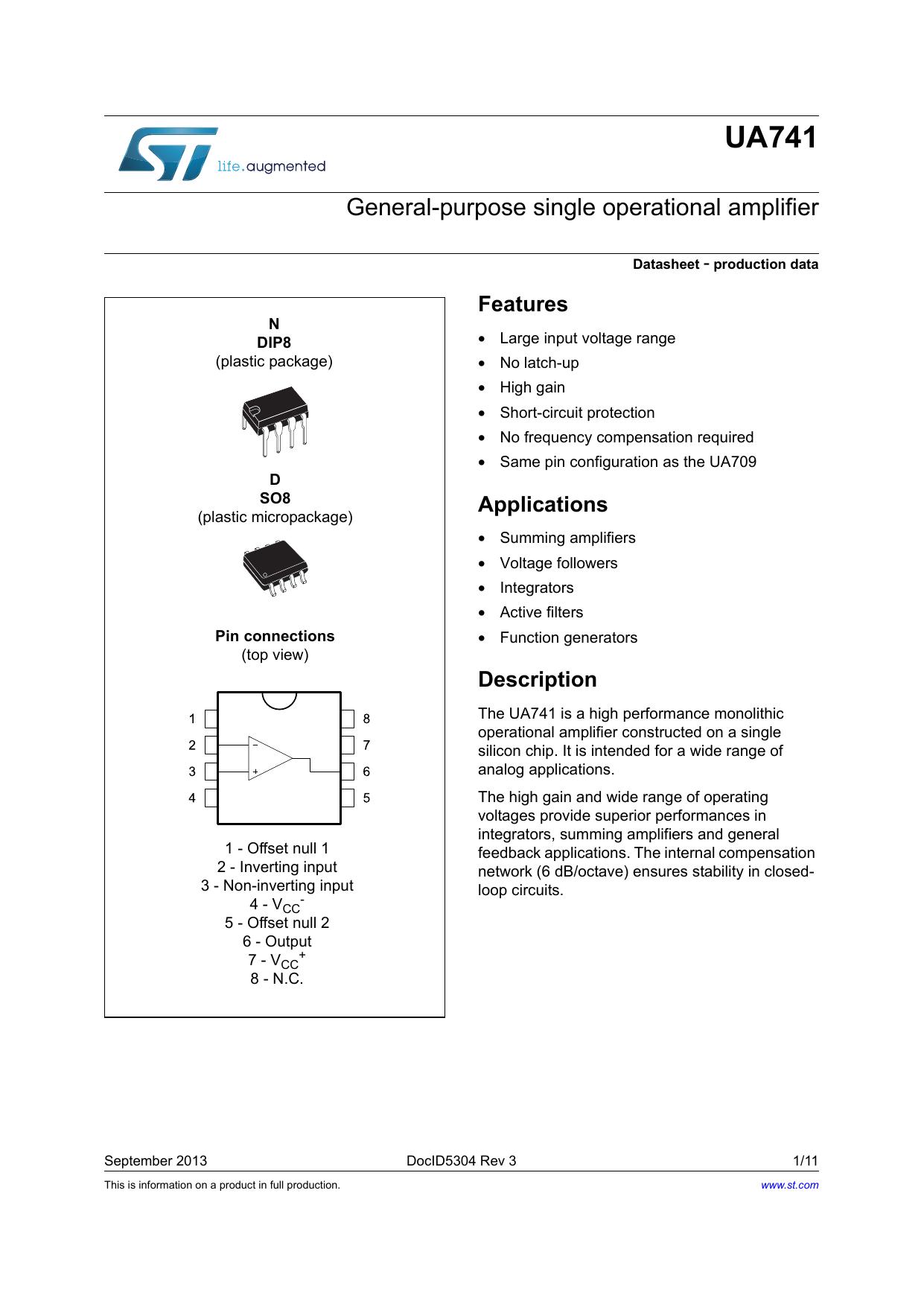

The Stmicroelectronics UA741 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The uA741 is a general-purpose operational amplifier featuring offset-voltage null capability. The high common-mode.... Key parameters include RoHS: Not Compliant. UA741 is manufactured by Stmicroelectronics as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Stmicroelectronics
- Category
- Semiconductors
Ask AI Assistant
Ask questions about UA741 specifications
Click to ask a quick question:
Parameters
| RoHS | Not Compliant |
