DRV8301DCAR

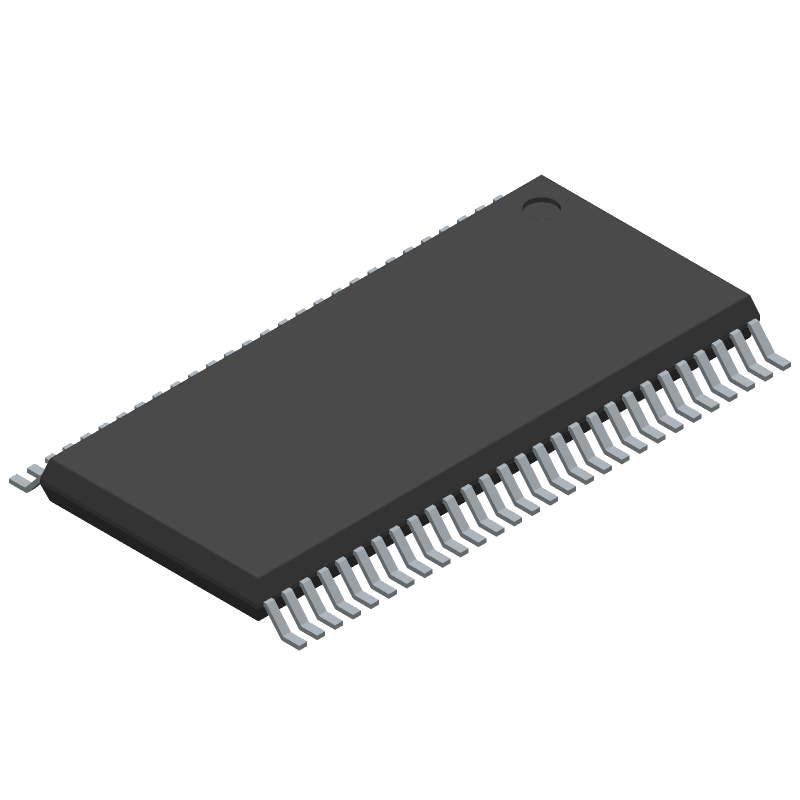

Brushless DC motor predriver IC featuring a 3-phase output, designed for surface mount applications in a 56-pin HTSSOP package. Operates with a supply voltage range of 8V to 60V, supporting a maximum output current of 1.7A. Features an SPI interface for control and communication. This component is RoHS compliant and operates within a temperature range of -40°C to 125°C. Supplied in tape and reel packaging.
Similar Components
CD4511BF3A
4-Input 7-Output CMOS Decoder/Latch, 3V-18V, -55°C-125°C, DIP-16
TL072
The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/µs), and common-mode input to the positive supply. High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to +125°C range enable the TL07xH devices for use in the most rugged and demanding applications.
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
OPA333AIDBVT
Precision zero-drift CMOS operational amplifier featuring a 350kHz bandwidth and 17µA operating supply current. This single-channel op amp offers a low input offset voltage of 10µV and high CMRR of 106dB, operating from a minimum supply voltage of 1.8V up to 5.5V. Designed for precision applications, it boasts a 120dB PSRR and a 0.16V/µs slew rate, packaged in a compact SOT-23 for efficient integration.
OP07CDR
Single operational amplifier featuring a low input offset voltage of 150µV and a low offset voltage of 0.25mV. This general-purpose amplifier offers a 600kHz bandwidth and a gain bandwidth product of 600kHz. It operates with a dual supply voltage range of 3V to 18V, providing a typical supply current of 5mA and an output current per channel of 10mA. The amplifier boasts a high common mode rejection ratio of 100dB and a slew rate of 0.3V/µs. Packaged in an 8-SOIC (D) case, this RoHS compliant component is suitable for operation between 0°C and 70°C.
ULN2003A
Seven-channel NPN Darlington transistor array, DIP package, designed for through-hole mounting. Features a collector-emitter breakdown voltage of 50V, maximum collector current of 500mA per channel, and a collector-emitter saturation voltage of 1.1V. Operates within a temperature range of -40°C to 85°C with a maximum power dissipation of 2.25W. RoHS compliant and lead-free.
About DRV8301DCAR
The Texas Instruments DRV8301DCAR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Brushless DC motor predriver IC featuring a 3-phase output, designed for surface mount applications in a 56-pin HTSSOP package. Operates with a supply voltage range of 8V to 60V, supporting a maximum output current of 1.7A. Features an SPI interface for control and communication. This component is RoHS compliant and operates within a temperature range of -40°C to 125°C. Supplied in tape and reel packaging.. Key parameters include Interface: SPI, Lead Free: Lead Free, Max Operating Temperature: 125°C, Max Supply Voltage: 60V, and Min Operating Temperature: -40°C. DRV8301DCAR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8301DCAR specifications
Click to ask a quick question:
Parameters
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 60V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 1.7A |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quest | 53—$7.946$6.9925——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
