BSC050N04LSG

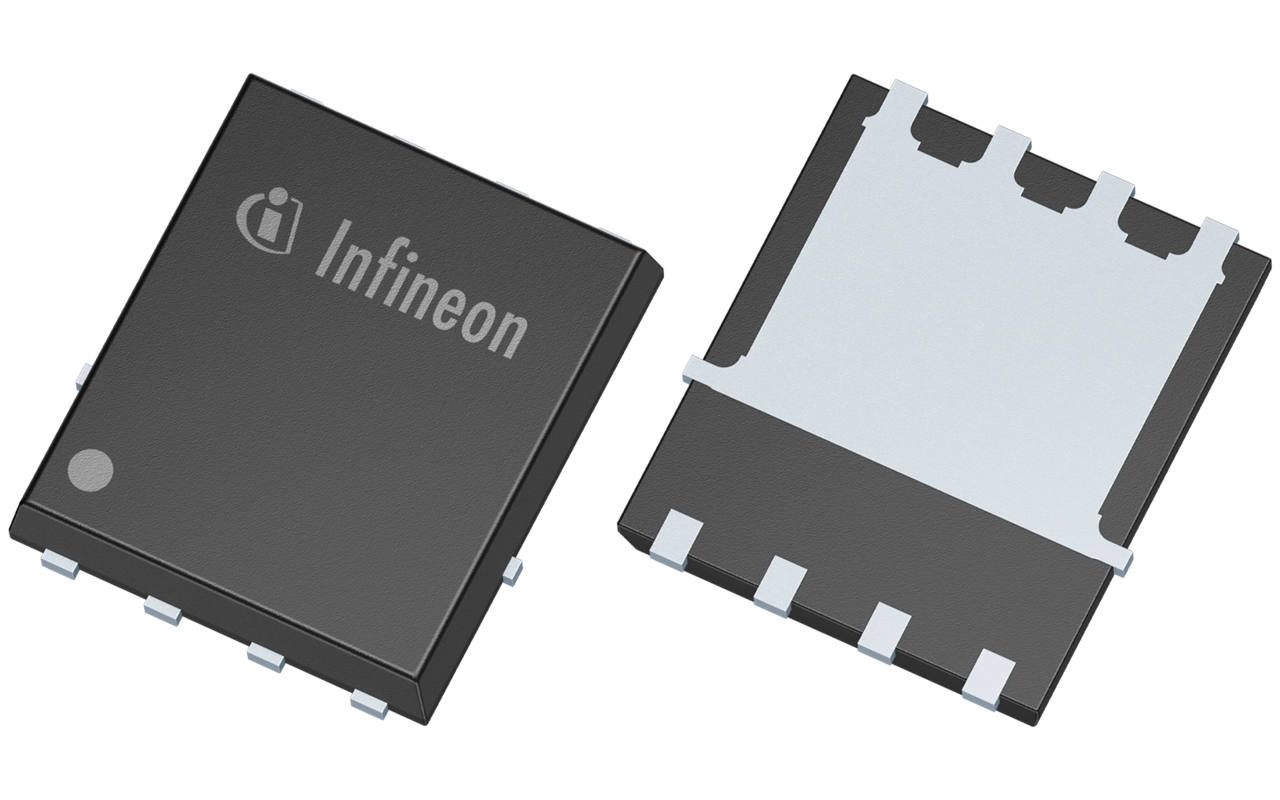

The BSC050N04LSG is a 40V N-Channel MOSFET with a maximum continuous drain current of 85A. It features a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. The device is packaged in a SMALL OUTLINE, R-PDSO-F5 package and is RoHS compliant. It has a maximum power dissipation of 57W and a threshold voltage of 1.2V.
Similar Components
IR2130PBF
Half Bridge Based MOSFET Driver, 0.5A, MOS, PDIP28, LEAD FREE, PLASTIC, MS-011AB, DIP-28
IRFB7430PBF
N-channel enhancement mode power MOSFET featuring HEXFET process technology. This single-element silicon transistor offers a maximum drain-source voltage of 40V and a continuous drain current of 409A. Housed in a TO-220AB package with 3 through-hole pins and a tab, it boasts a low drain-source on-resistance of 1.3 mOhm at 10V. Operating temperature range is -55°C to 175°C, with a maximum power dissipation of 375W.
BSC0904NSI
Power Field-Effect Transistor, 20A I(D), 30V, 0.0052ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC, TDSON-8
IR2101PBF
Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDIP8, LEAD FREE, PLASTIC, MS-001AB, DIP-8
IR2104S
Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO8, MS-012AA, SOIC-8
BTS7960
The BTS7960P is a TO-220-7 packaged DMOS logic driver IC from Infineon. It features fault protection against over temperature and short circuit conditions. The device operates over a temperature range of -40°C to 150°C and is suitable for through hole mounting. The BTS7960P is not RoHS compliant and contains lead.
About BSC050N04LSG
The Infineon BSC050N04LSG Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The BSC050N04LSG is a 40V N-Channel MOSFET with a maximum continuous drain current of 85A. It features a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. The device is packaged in a SMALL OUTLINE, R-PDSO-F5 package and is RoHS compliant. It has a maximum power dissipation of 57W and a threshold voltage of 1.2V.. Key parameters include Continuous Drain Current (ID): 85A, Drain to Source Voltage (Vdss): 40V, Fall Time: 4.2ns, Gate to Source Voltage (Vgs): 20V, and Halogen Free: Halogen Free. BSC050N04LSG is manufactured by Infineon as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Infineon
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BSC050N04LSG specifications
Click to ask a quick question:
Parameters
| Continuous Drain Current (ID) | 85A |
| Drain to Source Voltage (Vdss) | 40V |
| Fall Time | 4.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 1.1mm |
| Input Capacitance | 3.7nF |
| Length | 5.35mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 57W |
| Min Operating Temperature | -55°C |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 5mR |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 1.2V |
| Turn-Off Delay Time | 26ns |
| Turn-On Delay Time | 6.4ns |
| Width | 6.1mm |
