TL082CD

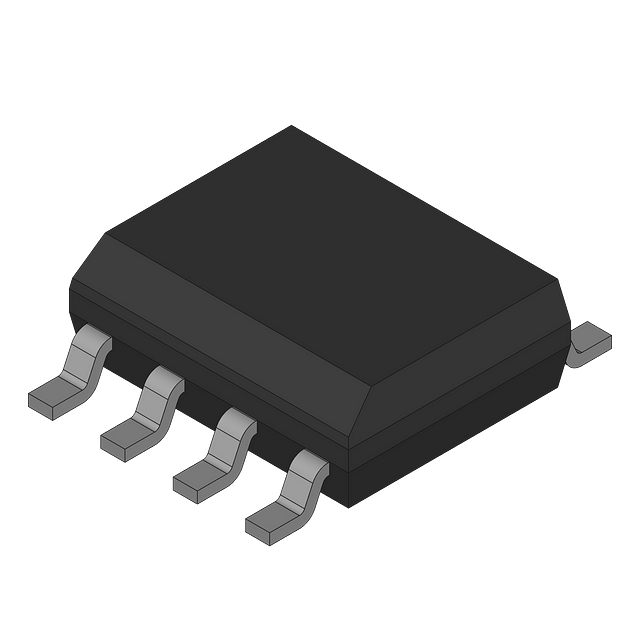

Dual JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology amplifier offers a 70dB common mode rejection ratio and a voltage gain of 106.02dB. Operates with dual supply voltages from ±3.5V to ±18V, consuming 1.4mA supply current. Packaged in an 8-SOIC (D) case with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H), it functions across a -40°C to 85°C temperature range and is RoHS compliant.
Similar Components
DRV8833CRTET
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
LMC555
Single timer IC, surface mount, MSOP package. Features a 3MHz frequency, 1.5V to 15V supply voltage range, and 150µA operating supply current. Offers 100mA output current with a 100ns propagation delay and turn-on delay time. Operates from -40°C to 125°C with 555mW power dissipation. RoHS compliant and lead-free.
NE5534
Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose, bipolar amplifier offers a 100dB voltage gain and a 38mA output current. Designed for dual supply operation from ±5V to ±15V, it boasts a 70dB common-mode rejection ratio and a 500µV input offset voltage. Packaged in an 8-SOIC case, this RoHS compliant component operates within a 0°C to 70°C temperature range.
LM567
Surface mount tone decoder IC featuring a 0.5MHz operating frequency and a 4.75V to 9V supply voltage range. This integrated circuit offers a 12mA operating supply current and a maximum power dissipation of 1.1W. Packaged in an 8-pin SOIC with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height, it operates within a temperature range of 0°C to 70°C. The component is lead-free and RoHS compliant.
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
INA2126UAE4
Dual instrumentation amplifier with a 9kHz bandwidth and 200kHz -3dB bandwidth. Features a 74dB Common Mode Rejection Ratio, 500µV input offset voltage, and 50nA input bias current. Operates with dual supply voltages from ±1.35V to ±18V or a single supply from 2.7V to 36V. Offers 80dB voltage gain, 0.4V/µs slew rate, and 35nV/√Hz input voltage noise density. Packaged in a D surface-mount case, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
About TL082CD
The Texas Instruments TL082CD Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology amplifier offers a 70dB common mode rejection ratio and a voltage gain of 106.02dB. Operates with dual supply voltages from ±3.5V to ±18V, consuming 1.4mA supply current. Packaged in an 8-SOIC (D) case with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H), it functions across a -40°C to 85°C temperature range and is RoHS compliant.. Key parameters include Bandwidth: 3MHz, Common Mode Rejection Ratio: 70dB, Dual Supply Voltage: 9V, Gain Bandwidth Product: 3MHz, and Height: 1.58mm. TL082CD is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TL082CD specifications
Click to ask a quick question:
Parameters
| Bandwidth | 3MHz |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 3MHz |
| Height | 1.58mm |
| Input Bias Current | 400pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 15mV |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | -18V |
| Package/Case | D |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Dissipation | 680mW |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 1.4mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
| Width | 3.91mm |
