TLV71333PDBVR

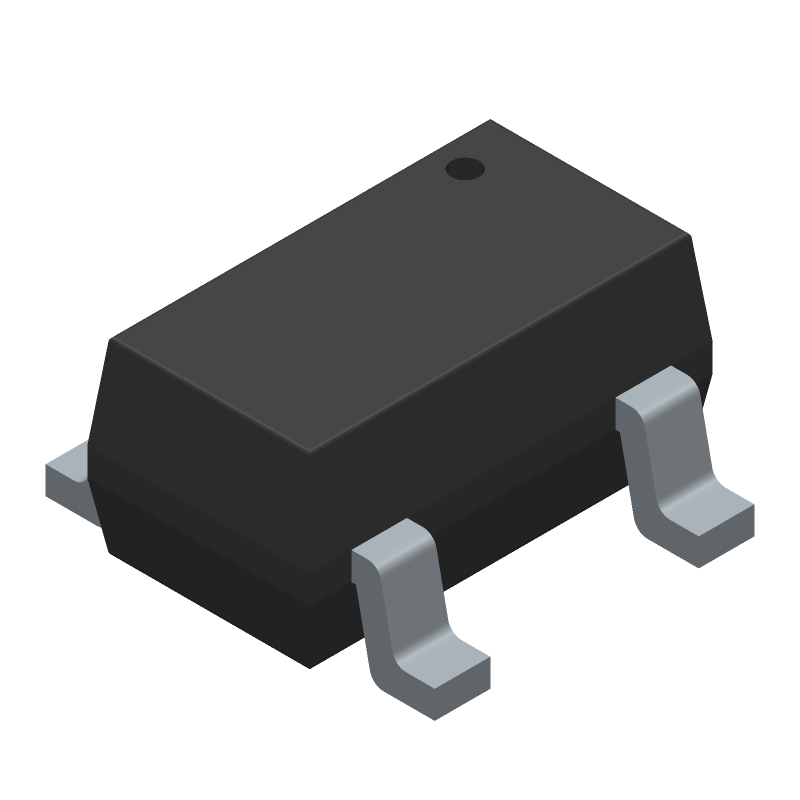

Capacitor-free, 150mA positive linear voltage regulator with a fixed 3.3V output and 1% accuracy. Features a low 230mV dropout voltage, 5.5V maximum input, and 75µA quiescent current. Operates across a -40°C to 125°C temperature range, with active output discharge and enable functionality. Packaged in a 5-SOT-23 surface mount configuration, this RoHS compliant component is supplied on tape and reel.
Similar Components
LM7815CT/NOPB
15V 1A Positive Linear Voltage Regulator, TO-220
TPS7A4700RGWT
Positive adjustable LDO regulator with 1A maximum output current, offering an output voltage range of 1.4V to 20.5V. Features include ±1% accuracy, low dropout voltage (0.216V typical at 0.5A), and excellent line/load regulation. Operates from a 3V to 36V input, with typical PSRR of 78 dB and low output noise of 4.67 uVrms. Packaged in a 20-pin VQFN EP (5.15x5.15mm) for surface mounting, with integrated current limit and thermal shutdown protection.
LM2677S-ADJ/NOPB
5A Step-Down DC-DC Controller, Adj Output, 40V In, TO-263
LM338
Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 40V and a minimum output voltage of 1.24V, adjustable up to 32V. Offers a low dropout voltage of 3mV and a quiescent current of 3mA. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates from 0°C to 125°C with a maximum power dissipation of 25W.
uA7805
3 Pin 1.5A Fixed 5V Positive Voltage Regulator 3-TO-220 -40 to 125
TPS61040DBVR
Boost DC-DC converter with adjustable output voltage from 1.8V to 28V. Features a 1MHz operating frequency, 86% efficiency, and supports input voltages from 1.8V to 6V. Delivers up to 400mA output current with a high-level output current of 90mA. Packaged in a 5-pin SOT-23, this RoHS compliant component operates from -40°C to 85°C.
About TLV71333PDBVR
The Texas Instruments TLV71333PDBVR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Capacitor-free, 150mA positive linear voltage regulator with a fixed 3.3V output and 1% accuracy. Features a low 230mV dropout voltage, 5.5V maximum input, and 75µA quiescent current. Operates across a -40°C to 125°C temperature range, with active output discharge and enable functionality. Packaged in a 5-SOT-23 surface mount configuration, this RoHS compliant component is supplied on tape and reel.. Key parameters include Accuracy: 1%, Dropout Voltage: 230mV, Lead Free: Lead Free, Max Input Voltage: 5.5V, and Max Operating Temperature: 125°C. TLV71333PDBVR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TLV71333PDBVR specifications
Click to ask a quick question:
Parameters
| Accuracy | 1% |
| Dropout Voltage | 230mV |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Min Input Voltage | 1.4V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 1% |
| Package/Case | SOT-23-5 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| Quiescent Current | 75uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
