LM339DR

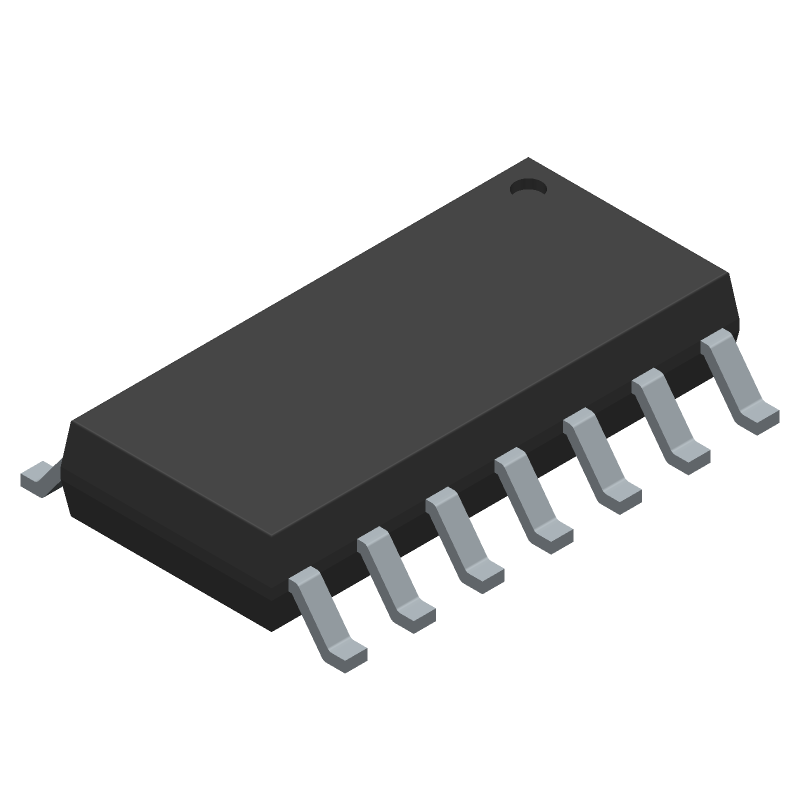

Quad differential comparator IC featuring four independent comparators with TTL output compatibility. Operates from a 1V to 30V supply range, offering a maximum supply current of 500µA. Key specifications include a 5mV input offset voltage and 250nA input bias current. This surface mount component is packaged in a 14-SOIC case and operates within a 0°C to 70°C temperature range. RoHS compliant and lead-free.
Similar Components
DRV8833CRTET
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
MAX232
Dual EIA-232 driver and receiver in a 16-PDIP through-hole package. Features 2 drivers and 2 receivers for full-duplex communication, supporting data rates up to 120Kbps. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a wide temperature range of -40°C to 85°C. Includes 8 I/Os with 500mV receiver hysteresis and a propagation delay of 0.5us. This RoHS compliant component is lead-free.
TL072CD
Dual low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This general-purpose op-amp offers a 13V/µs slew rate and 106.02dB voltage gain. It operates with dual supply voltages ranging from 3.5V to 18V, with a maximum dual supply voltage of 18V. The component boasts a low input bias current of 200pA and an input offset voltage of 3mV. Housed in a lead-free 8-SOIC package (D), it operates across a wide temperature range of -40°C to 85°C.
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
CD4543
CMOS BCD-to-Seven-Segment Latch/Decoder/Driver for Liquid-Crystal Displays. Features 4 input lines, 7 output lines, and a 400ns propagation delay. Operates with a minimum supply voltage of 3V and a maximum of 18V, supporting a bandwidth of 8MHz. This demultiplexer and decoder IC is designed for LCD displays and operates across a temperature range of -55°C to 125°C. Packaged in a 16-PDIP with a non-inverting polarity.
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
About LM339DR
The Texas Instruments LM339DR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad differential comparator IC featuring four independent comparators with TTL output compatibility. Operates from a 1V to 30V supply range, offering a maximum supply current of 500µA. Key specifications include a 5mV input offset voltage and 250nA input bias current. This surface mount component is packaged in a 14-SOIC case and operates within a 0°C to 70°C temperature range. RoHS compliant and lead-free.. Key parameters include Input Bias Current: 250nA, Input Offset Voltage (Vos): 5mV, Lead Free: Lead Free, Max Dual Supply Voltage: 15V, and Max Input Current: 250nA. LM339DR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LM339DR specifications
Click to ask a quick question:
Parameters
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Max Input Current | 250nA |
| Max Operating Temperature | 70°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 30V |
| Min Dual Supply Voltage | 1V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Compatibility | CMOS |
| Output Current | 20mA |
| Output Current per Channel | 6mA |
| Output Type | TTL |
| Package/Case | SOIC |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quest | 5,982267———$0.3—View offer |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 250125——$0.1542—ReelView offer |
| Supply Current | 500uA |
| Technology | BIPOLAR |
| TME | 2,5011$0.24$0.125$0.123—pcsView offer |
| Voltage Gain | 106.02dB |
| Weight | 0.004318oz |
