ADS1115IDGSR
16-bit delta-sigma analog-to-digital converter (ADC) with a sampling rate of 860 S/s. Features 4 analog inputs, a programmable gain amplifier (PGA), internal voltage reference, oscillator, and comparator. Operates with a supply voltage range of 2V to 5.5V and a nominal supply current of 150µA. Housed in a 10-VSSOP package with gold contact plating, offering a wide operating temperature range from -40°C to 125°C. RoHS compliant and lead-free.
Similar Components
LM386N-3
Single-channel audio power amplifier IC featuring 1W output power and 700mW maximum output power into an 8-ohm load. Offers a voltage gain of 46dB and a bandwidth of 300kHz. Operates from a single supply voltage range of 4V to 12V, with a typical supply current of 4mA. Packaged in an 8-pin DIP (PDIP8) configuration.
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
SN65HVD3082EP
RS-485 Transceiver, Half-Duplex, 200Kbps, 5V
LM3915N-1/NOPB
Dot/Bar Display Driver IC, 10-Seg, 3-25V, 30mA, PDIP
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
NE5534
Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose, bipolar amplifier offers a 100dB voltage gain and a 38mA output current. Designed for dual supply operation from ±5V to ±15V, it boasts a 70dB common-mode rejection ratio and a 500µV input offset voltage. Packaged in an 8-SOIC case, this RoHS compliant component operates within a 0°C to 70°C temperature range.
About ADS1115IDGSR

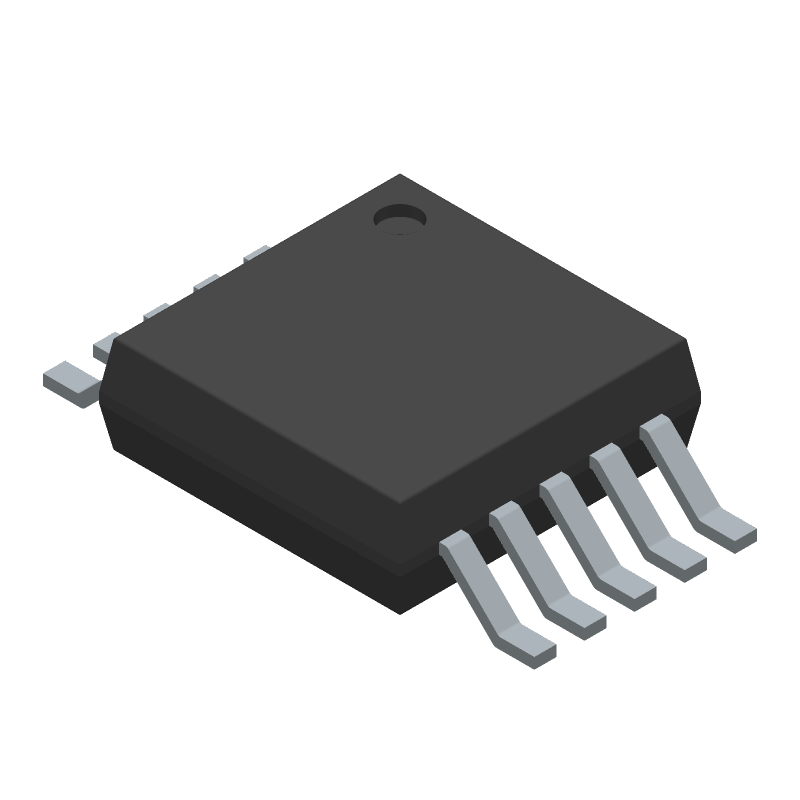

The Texas Instruments ADS1115IDGSR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 16-bit delta-sigma analog-to-digital converter (ADC) with a sampling rate of 860 S/s. Features 4 analog inputs, a programmable gain amplifier (PGA), internal voltage reference, oscillator, and comparator. Operates with a supply voltage range of 2V to 5.5V and a nominal supply current of 150µA. Housed in a 10-VSSOP package with gold contact plating, offering a wide operating temperature range from -40°C to 125°C. RoHS compliant and lead-free.. Key parameters include Contact Plating: Gold, Conversion Rate: 0.86KS/s, Height: 1.07mm, Integral Nonlinearity (INL): 1LSB, and Interface: I2C. ADS1115IDGSR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about ADS1115IDGSR specifications
Click to ask a quick question:
Parameters
| Contact Plating | Gold |
| Conversion Rate | 0.86KS/s |
| Height | 1.07mm |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Max Supply Voltage (DC) | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Min Supply Voltage (DC) | 2V |
| Nominal Supply Current | 150uA |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of Converters | 1 |
| Number of Inputs | 4 |
| Package/Case | VSSOP |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Dissipation | 900uW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Sampling Rate | 860S/s |
| Schukat | 2,4801$1.7769$1.4538———View offer |
| Supply Type | Single |
| Thickness | 1.02mm |
| Width | 3mm |
