MSP430G2553IPW28R

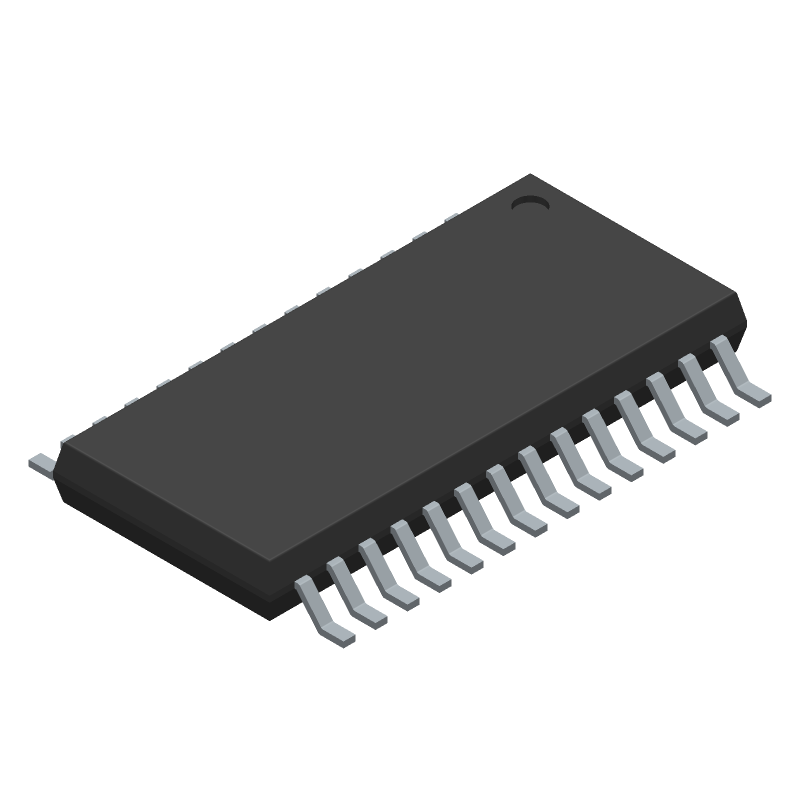

16-bit microcontroller featuring a 16MHz MSP430 core, 16KB FLASH memory, and 512B SRAM. Includes an integrated 10-bit Analog-to-Digital Converter with 8 channels, a comparator, and multiple communication interfaces: I2C, SPI, UART, and USART. Offers 24 programmable I/O pins, two timers/counters, and peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 28-TSSOP, this lead-free component operates from -40°C to 85°C with supply voltages between 1.8V and 3.6V.
Similar Components
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
About MSP430G2553IPW28R
The Texas Instruments MSP430G2553IPW28R Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 16-bit microcontroller featuring a 16MHz MSP430 core, 16KB FLASH memory, and 512B SRAM. Includes an integrated 10-bit Analog-to-Digital Converter with 8 channels, a comparator, and multiple communication interfaces: I2C, SPI, UART, and USART. Offers 24 programmable I/O pins, two timers/counters, and peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 28-TSSOP, this lead-free component operates from -40°C to 85°C with supply voltages between 1.8V and 3.6V.. Key parameters include Core Architecture: MSP430, Data Bus Width: 16b, Frequency: 16MHz, Interface: I2C, SPI, IrDA, UART, USART, SCI, LIN, and Lead Free: Lead Free. MSP430G2553IPW28R is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about MSP430G2553IPW28R specifications
Click to ask a quick question:
Parameters
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 16MHz |
| Interface | I2C, SPI, IrDA, UART, USART, SCI, LIN |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 8 |
| Number of A/D Converters | 8 |
| Number of Bits | 16 |
| Number of GPIO | 24 |
| Number of I/Os | 24 |
| Number of Programmable I/O | 24 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | MSP430G2xx |
| Watchdog Timer | Yes |
