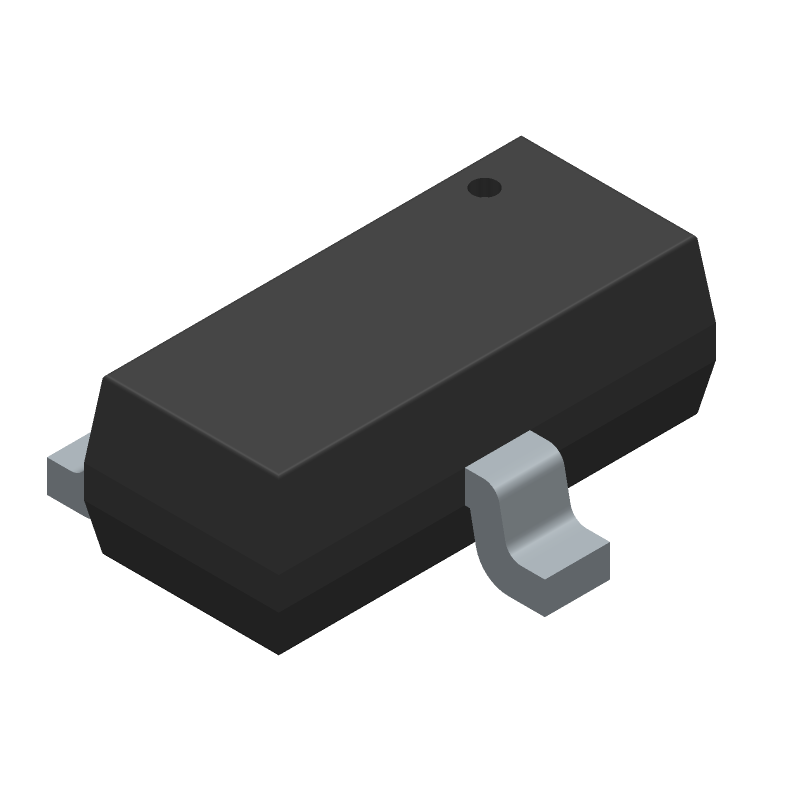

BSS138L
Single N-channel logic-level power MOSFET featuring 50V drain-source voltage and 200mA continuous drain current. This 3-terminal device offers a low on-resistance of 3.5 Ohms and is housed in a TO-236AB JEDEC package. Designed with one active element, it is supplied on a 3000-piece reel for high-volume applications.
Similar Components
FAN7380MX
Dual-channel, half-bridge gate driver IC for power management applications. Features independent channels with a maximum output current of 180mA and a maximum supply voltage of 20V. Operates within a temperature range of -40°C to 125°C, with propagation delays of 200ns and fall times of 160ns. Packaged in SOIC for surface mounting, supplied in a 3000-piece tape and reel. RoHS compliant and lead-free.
MMSZ5257B
Diode Zener Single 33V 5% 500mW 2-Pin SOD-123 T/R
MMBT3906
PNP Bipolar Junction Transistor in SOT-23 package. Features a 40V collector-emitter breakdown voltage and a maximum collector current of 200mA. Offers a minimum DC current gain (hFE) of 100 and a transition frequency of 250MHz. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 350mW. Surface mountable and RoHS compliant.
MBRS340T3G
Surface mount Schottky power rectifier with a maximum repetitive peak reverse voltage of 40V and a continuous forward current of 3.0A. This dual-terminal, single-element silicon rectifier operates across a wide temperature range from -65°C to 150°C. Designed for general-purpose rectification, it is supplied on a 2500-piece reel.
MMBD4148SE
Ultra-fast general-purpose rectifier diode with a 4ns reverse recovery time. Features a 200mA average rectified current and 100V repetitive reverse voltage. Surface mountable in a SOT-23 package, this RoHS compliant component offers a 2A maximum surge current and 350mW power dissipation. Operating temperature range is -55°C to 150°C.
FGA40N65SMD
Insulated Gate Bipolar Transistor (IGBT) with 650V Collector Emitter Breakdown Voltage and 40A continuous collector current. Features a low 2.5V Collector Emitter Saturation Voltage and 349W maximum power dissipation. Operates across a wide temperature range from -55°C to 175°C. Includes a 42ns reverse recovery time and 12ns turn-on delay. Packaged in a rail/tube for through-hole mounting, with 450 units per package.
About BSS138L
The Onsemi BSS138L Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single N-channel logic-level power MOSFET featuring 50V drain-source voltage and 200mA continuous drain current. This 3-terminal device offers a low on-resistance of 3.5 Ohms and is housed in a TO-236AB JEDEC package. Designed with one active element, it is supplied on a 3000-piece reel for high-volume applications.. Key parameters include Eccn Code: EAR99, HTS Code: 8541.21.00.95, JEDEC Package Code: TO-236AB, Lead Free: Yes, and Military Spec: False. BSS138L is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BSS138L specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| HTS Code | 8541.21.00.95 |
| JEDEC Package Code | TO-236AB |
| Lead Free | Yes |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Quest | 15782——$0.1225——View offer |
| REACH | Compliant |
| Terminal Position | DUAL |
| TME | 9,4101$0.17$0.123—$0.0602pcsView offer |
