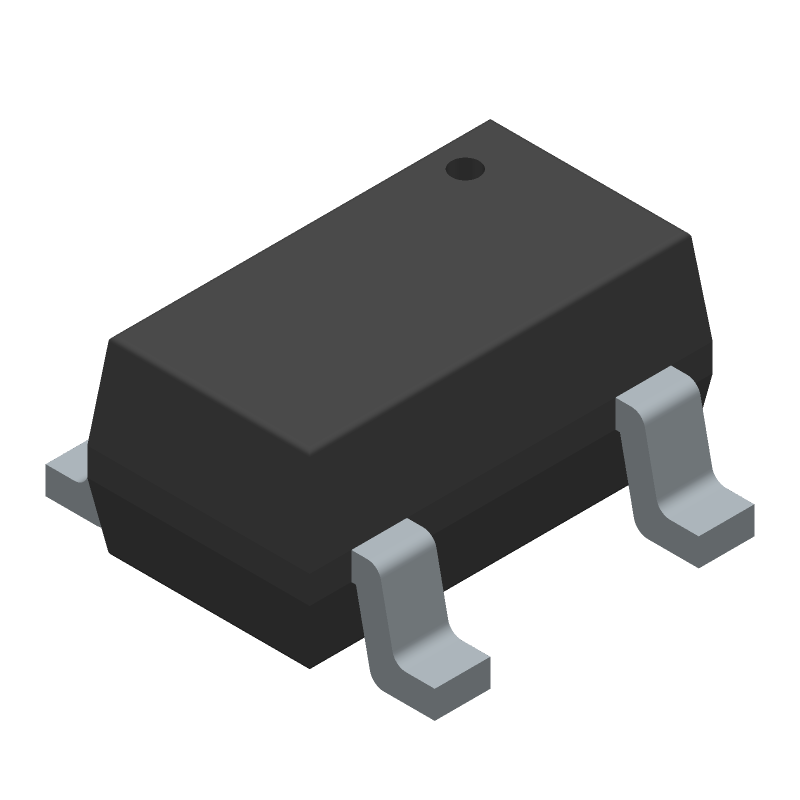

UCC27517DBVR
Single-channel gate driver IC featuring 4-A peak output current and a 5-V under-voltage lockout (UVLO) for reliable operation. Offers a 13-ns propagation delay and 11-ns fall time for efficient switching. Designed for surface mounting in a compact SOT-23-5 package, operating from a 4.5-V to 18-V supply range. This RoHS compliant component supports a wide temperature range of -40°C to 140°C.
Similar Components
SN65HVD3082
Half-duplex RS-485 transceiver with a 200Kbps data rate. Features a single driver and receiver, operating from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage and 900uA supply current. Encased in an 8-PDIP package, this lead-free component operates within a temperature range of -40°C to 85°C.
OPA333AIDBVT
Precision zero-drift CMOS operational amplifier featuring a 350kHz bandwidth and 17µA operating supply current. This single-channel op amp offers a low input offset voltage of 10µV and high CMRR of 106dB, operating from a minimum supply voltage of 1.8V up to 5.5V. Designed for precision applications, it boasts a 120dB PSRR and a 0.16V/µs slew rate, packaged in a compact SOT-23 for efficient integration.
NE5534P
Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and a 38mA output current per channel. Designed for dual supply operation from ±5V to ±15V, it boasts a 70dB common mode rejection ratio and a 4mV input offset voltage. Packaged in an 8-PDIP, this bipolar IC operates within a 0°C to 70°C temperature range and is RoHS compliant.
CD4051BM96
16-pin SOIC analog multiplexer, featuring an 8:1 channel configuration and logic-level conversion. Operates across a wide supply voltage range from 3V to 20V, with a maximum input voltage of 20.5V and a minimum of -0.5V. This component supports a broad operating temperature range of -55°C to 125°C, suitable for military applications. The device offers a single function with dual terminal positioning and a JEDEC package code of R-PDSO-G16.
LM3310SQ/NOPB
Boost DC/DC Controller, 2.5-7V In, 20V Out, 2A, 93% Eff, WQFN
NE555D
Standard Timer Single 0°C 70°C 8-Pin SOIC Tube
About UCC27517DBVR
The Texas Instruments UCC27517DBVR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-channel gate driver IC featuring 4-A peak output current and a 5-V under-voltage lockout (UVLO) for reliable operation. Offers a 13-ns propagation delay and 11-ns fall time for efficient switching. Designed for surface mounting in a compact SOT-23-5 package, operating from a 4.5-V to 18-V supply range. This RoHS compliant component supports a wide temperature range of -40°C to 140°C.. Key parameters include Channel Type: Single, Fall Time: 11ns, Height: 1.45mm, Lead Free: Lead Free, and Length: 2.9mm. UCC27517DBVR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about UCC27517DBVR specifications
Click to ask a quick question:
Parameters
| Channel Type | Single |
| Fall Time | 11ns |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 140°C |
| Max Output Current | 4A |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 4A |
| Package/Case | SOT-23-5 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 30ns |
| Quest | 1,06819——$2.6334——View offer |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Thickness | 1.2mm |
| Turn-On Delay Time | 30ns |
| Width | 1.6mm |
