TLV70233DBVR

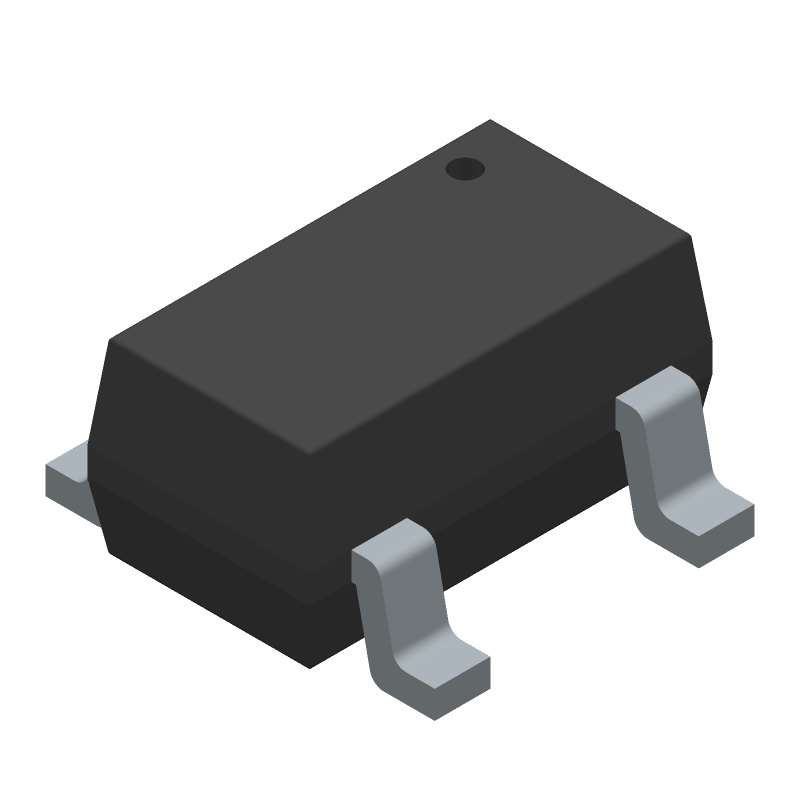

3.3V fixed output, positive linear voltage regulator with 300mA output current. Features 220mV dropout voltage and 68dB high PSRR. Operates from 2V to 5.5V input voltage with a maximum supply current of 370uA. Offers 0.5% output voltage accuracy and a wide operating temperature range of -40°C to 125°C. Packaged in a compact SOT-23-5, this RoHS compliant component is supplied on tape and reel.
Similar Components
TPS7A4700RGWT
Positive adjustable LDO regulator with 1A maximum output current, offering an output voltage range of 1.4V to 20.5V. Features include ±1% accuracy, low dropout voltage (0.216V typical at 0.5A), and excellent line/load regulation. Operates from a 3V to 36V input, with typical PSRR of 78 dB and low output noise of 4.67 uVrms. Packaged in a 20-pin VQFN EP (5.15x5.15mm) for surface mounting, with integrated current limit and thermal shutdown protection.
TPS54331DR
3A, 570kHz step-down converter with adjustable output voltage from 800mV to 25V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 3A. Operates with a quiescent current of 110uA and includes Eco-mode for efficiency. Packaged in an 8-SOIC (D) case with dimensions of 5mm x 4mm x 1.58mm, this RoHS compliant component supports an operating temperature range of -40°C to 150°C.
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
TPS5430QDDARQ1
3A Buck Converter, 5.5-36V In, 31V Out, 500kHz, 95% Eff, HSOP
TPS5430
Automotive 3A DC/DC buck converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, 500kHz fixed frequency operation, and up to 95% efficiency. This surface mount component is housed in an 8-SO PowerPAD package, operating from -40°C to 125°C. It offers a single adjustable output and is RoHS compliant.
LM1117
Adjustable positive linear voltage regulator, 800mA output current, 1.2V dropout voltage, and 1% output voltage accuracy. Features a maximum input voltage of 15V and an adjustable output voltage range from 1.25V to 13.8V. This surface mount component is housed in a TO-252 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
About TLV70233DBVR
The Texas Instruments TLV70233DBVR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 3.3V fixed output, positive linear voltage regulator with 300mA output current. Features 220mV dropout voltage and 68dB high PSRR. Operates from 2V to 5.5V input voltage with a maximum supply current of 370uA. Offers 0.5% output voltage accuracy and a wide operating temperature range of -40°C to 125°C. Packaged in a compact SOT-23-5, this RoHS compliant component is supplied on tape and reel.. Key parameters include Accuracy: 2%, Dropout Voltage: 220mV, Height: 1.45mm, Lead Free: Lead Free, and Length: 2.9mm. TLV70233DBVR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TLV70233DBVR specifications
Click to ask a quick question:
Parameters
| Accuracy | 2% |
| Dropout Voltage | 220mV |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 300mA |
| Max Output Voltage | 3.3V |
| Max Power Dissipation | 500mW |
| Max Supply Current | 370uA |
| Max Supply Voltage | 5.5V |
| Min Current Limit | 320mA |
| Min Input Voltage | 2V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.3V |
| Min Supply Voltage | 3.56V |
| Nominal Output Voltage | 3.3V |
| Nominal Supply Current | 35uA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 0.5% |
| Package/Case | SOT-23-5 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 500mW |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 30uA |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Thickness | 1.2mm |
| TME | 2,6851$0.27$0.22$0.195$0.139pcsView offer |
| Width | 1.6mm |
