INA3221AIRGVR

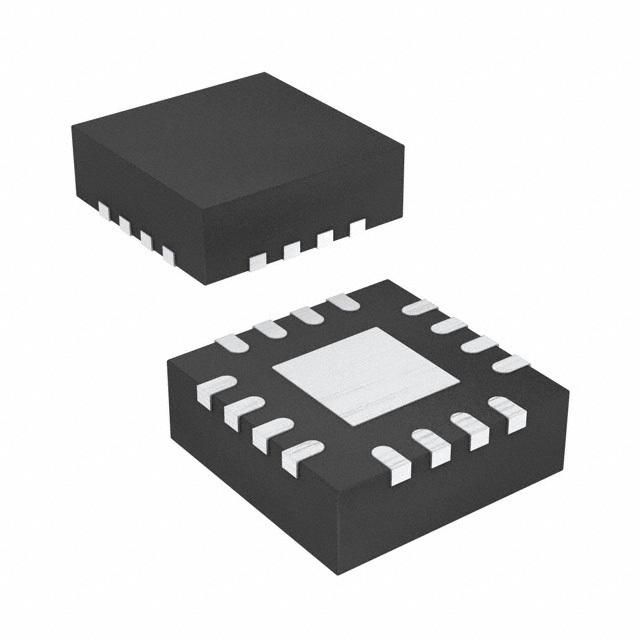

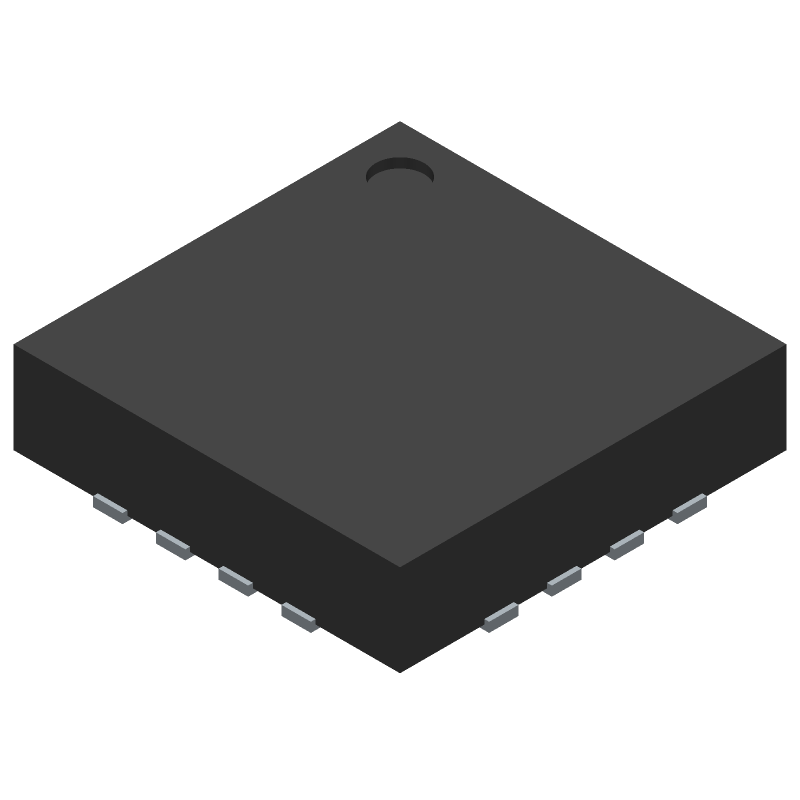

High-precision, 1-channel supervisory circuit for monitoring voltages from 2.7V to 5.5V. Features 0.25% accuracy, 80µV input offset voltage, and 110dB common mode rejection ratio. Operates across a -40°C to 125°C temperature range with a 350µA quiescent current. Packaged in a 16-pin VQFN, supplied on tape and reel.
Similar Components
INA219
High-precision current and voltage monitoring IC with 0.5% accuracy. Features a 3V to 5.5V operating supply voltage range and a maximum input voltage of 26V. This single-amplifier device offers a 100dB Common Mode Rejection Ratio and a low input offset voltage of 40uV. Packaged in an 8-pin SOT-23-8, it operates from -40°C to 125°C and is RoHS compliant.
INA219BIDCNT
3V-5.5V 26V Max Supervisory IC, 0.5% Acc, SOT-23-8
INA226
Current shunt and power monitor measures shunt voltage and bus supply voltage through an I2C- or SMBus-compatible interface. The device senses bus voltages from 0 V to 36 V and operates from a 2.7 V to 5.5 V supply. It provides 16-bit resolution with programmable calibration, conversion time, averaging, and alert-limit functions. The monitor supports high-side or low-side sensing, 16 programmable addresses, and operation from -40 °C to 125 °C in a 10-pin VSSOP package.
About INA3221AIRGVR
The Texas Instruments INA3221AIRGVR Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-precision, 1-channel supervisory circuit for monitoring voltages from 2.7V to 5.5V. Features 0.25% accuracy, 80µV input offset voltage, and 110dB common mode rejection ratio. Operates across a -40°C to 125°C temperature range with a 350µA quiescent current. Packaged in a 16-pin VQFN, supplied on tape and reel.. Key parameters include Accuracy: 0.25%, Common Mode Rejection Ratio: 110dB, Gain Bandwidth Product: 7kHz, Input Offset Voltage (Vos): 80uV, and Lead Free: Lead Free. INA3221AIRGVR is manufactured by Texas Instruments as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about INA3221AIRGVR specifications
Click to ask a quick question:
Parameters
| Accuracy | 0.25% |
| Common Mode Rejection Ratio | 110dB |
| Gain Bandwidth Product | 7kHz |
| Input Offset Voltage (Vos) | 80uV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package/Case | VQFN |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 96.48dB |
| Quiescent Current | 350uA |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 350uA |
| TME | —1$3.31——$2.92pcsView offer |
