BQ24725ARGRR

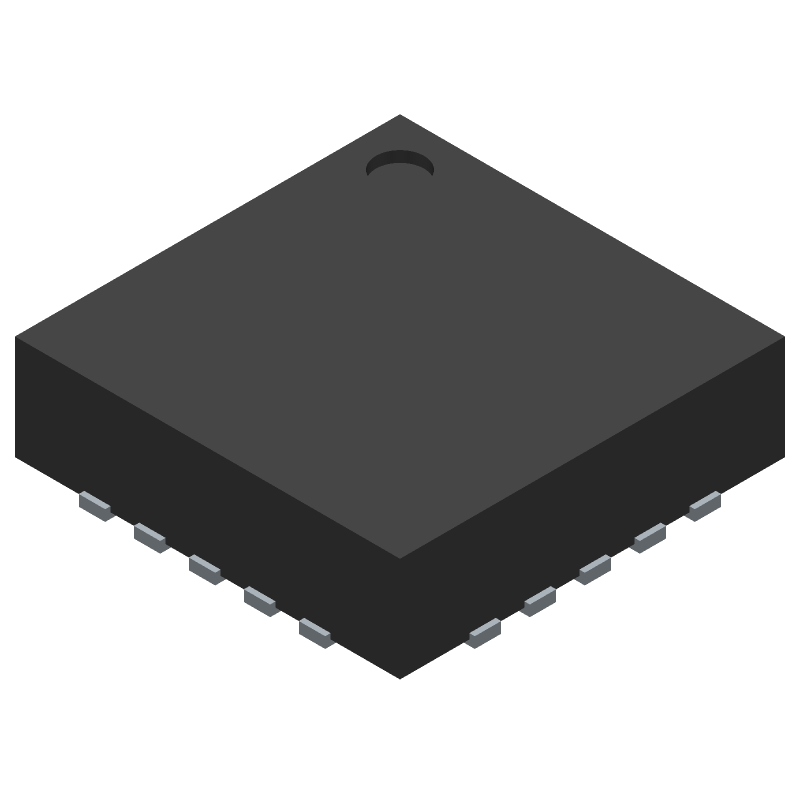

The BQ24725ARGRR is a 19.2V 8A I2C power management IC from Texas Instruments. It features a VQFN-20 package and operates over a temperature range of 0°C to 125°C. The device provides fault protection against over current, over voltage, and short circuit conditions. It is lead free and RoHS compliant.
Similar Components
LM7815
Positive fixed 15V linear voltage regulator, delivering 1A output current with 2% accuracy. Features a 2V dropout voltage and a maximum input voltage of 35V, operating from 17.7V minimum input. This through-hole component is housed in a TO-220 package, suitable for applications with ambient temperatures from 0°C to 125°C. Offers 70dB power supply rejection ratio and 8mA quiescent current.
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
LM7905CT
Negative linear voltage regulator, fixed -5V output, 1.5A output current. Features 4% output voltage accuracy and a 1.1V dropout voltage. Operates with input voltages from -25V to -10V, with a maximum operating temperature of 125°C. Packaged in a TO-220 through-hole mount.
TPS61040DBVR
Boost DC-DC converter with adjustable output voltage from 1.8V to 28V. Features a 1MHz operating frequency, 86% efficiency, and supports input voltages from 1.8V to 6V. Delivers up to 400mA output current with a high-level output current of 90mA. Packaged in a 5-pin SOT-23, this RoHS compliant component operates from -40°C to 85°C.
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
LM1117
Adjustable positive linear voltage regulator, 800mA output current, 1.2V dropout voltage, and 1% output voltage accuracy. Features a maximum input voltage of 15V and an adjustable output voltage range from 1.25V to 13.8V. This surface mount component is housed in a TO-252 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
About BQ24725ARGRR
The Texas Instruments BQ24725ARGRR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The BQ24725ARGRR is a 19.2V 8A I2C power management IC from Texas Instruments. It features a VQFN-20 package and operates over a temperature range of 0°C to 125°C. The device provides fault protection against over current, over voltage, and short circuit conditions. It is lead free and RoHS compliant.. Key parameters include Battery Chemistry: LITHIUM-ION, Battery Pack Voltage: 19.2V, Contact Plating: Gold, Fault Protection: Over Current, Over Voltage, Short Circuit, and Interface: I2C. BQ24725ARGRR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about BQ24725ARGRR specifications
Click to ask a quick question:
Parameters
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 19.2V |
| Contact Plating | Gold |
| Fault Protection | Over Current, Over Voltage, Short Circuit |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 24V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Number of Cells | 1234 |
| Output Current | 8A |
| Output Voltage | 19V |
| Package/Case | VQFN EP |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
