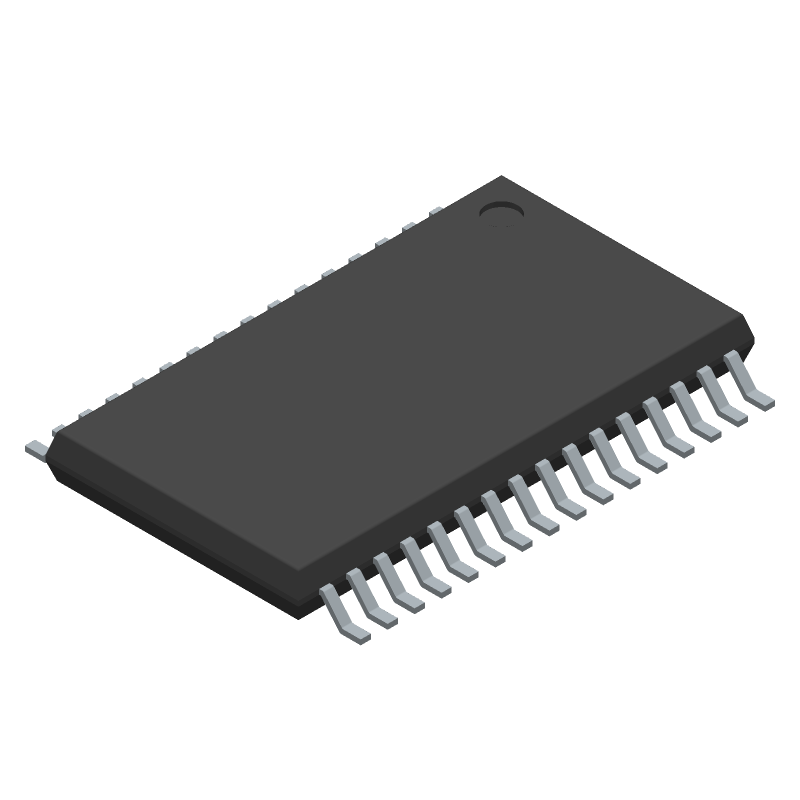

TPA3116D2DADR
High-fidelity Class-D audio amplifier IC delivering 50W stereo or 100W mono output. Operates with a wide supply voltage range of 4.5V to 26V. Features integrated SpeakerGuard™ technology for speaker protection. Surface mountable in a 32-HTSSOP package, suitable for operation from -40°C to 85°C. Lead-free and RoHS compliant, supplied on tape and reel.
Similar Components
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4071BE
CMOS OR Gate IC, 4-Element, 2-IN, 14-Pin PDIP
CD4011BE
CMOS logic IC featuring four independent 2-input NAND gates. Operates with a supply voltage range of 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. The component boasts a propagation delay of 90ns and is housed in a 14-pin PDIP package with gold contact plating, suitable for through-hole mounting. With a maximum operating temperature of 125°C and RoHS compliance, this integrated circuit is designed for reliable performance.
LM380
Mono audio amplifier IC delivering 2.5W output power into an 8-ohm load. Features a voltage gain of 34dB and a bandwidth of 100kHz. Operates from a single supply voltage between 10V and 22V. Packaged in an 8-pin PDIP for through-hole mounting. RoHS compliant and lead-free.
CD4029BE
4-Bit Binary/Decade Counter IC, CMOS, 11MHz, 18V, DIP
LM386N-4
1W, 1-channel audio amplifier IC featuring a 46dB voltage gain and 300kHz bandwidth. Designed for single supply operation with a voltage range of 5V to 18V, it delivers 1W output power into a 32 Ohm load. This power amplifier IC is housed in a PDIP-8 package and offers a low input bias current of 250nA. Maximum power dissipation is 1.25W, with an operating temperature range of 0°C to 70°C.
About TPA3116D2DADR
The Texas Instruments TPA3116D2DADR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-fidelity Class-D audio amplifier IC delivering 50W stereo or 100W mono output. Operates with a wide supply voltage range of 4.5V to 26V. Features integrated SpeakerGuard™ technology for speaker protection. Surface mountable in a 32-HTSSOP package, suitable for operation from -40°C to 85°C. Lead-free and RoHS compliant, supplied on tape and reel.. Key parameters include Lead Free: Lead Free, Max Operating Temperature: 85°C, Max Output Power: 50W, Max Supply Voltage: 26V, and Min Operating Temperature: -40°C. TPA3116D2DADR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TPA3116D2DADR specifications
Click to ask a quick question:
Parameters
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Output Power | 50W |
| Max Supply Voltage | 26V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Output Power | 50W |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | SpeakerGuard™ |
| Voltage Gain | 36dB |
