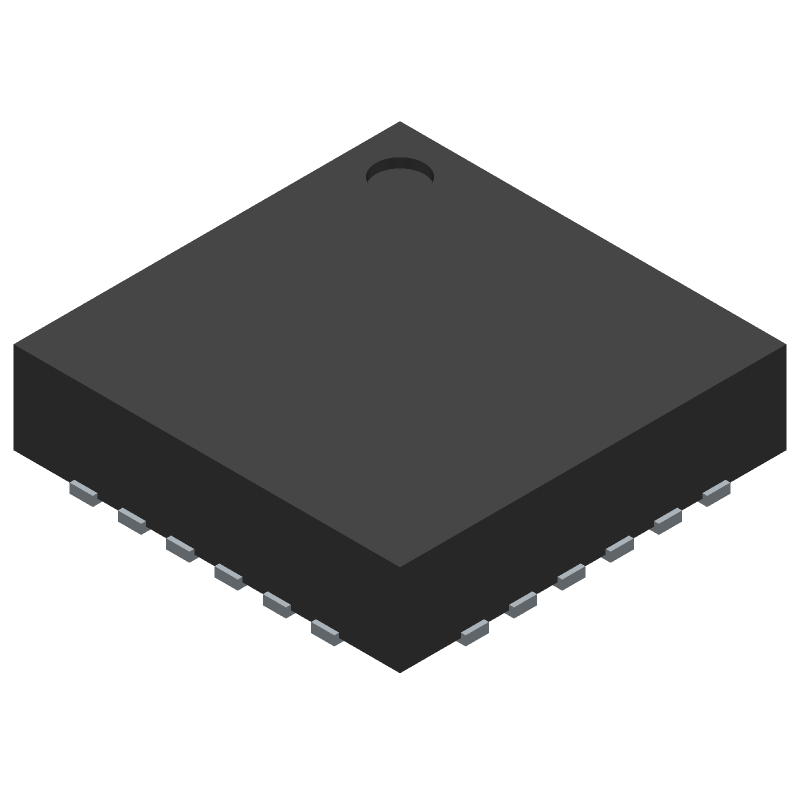

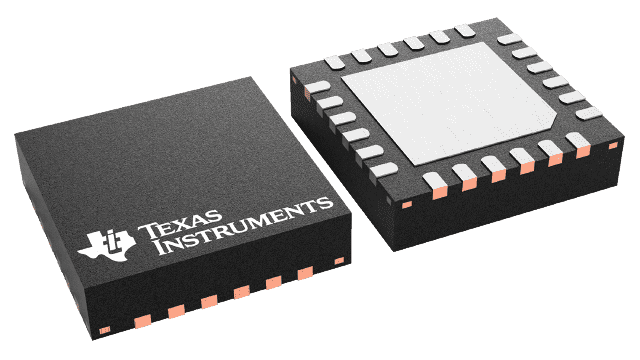

BQ24295RGER
The BQ24295RGER is a power management IC with a maximum operating temperature of -40°C to 85°C and a maximum supply voltage of 6.2V. It features I2C and USB interfaces and is packaged in a VQFN-24 package. The device provides fault protection against over current, over voltage, and over temperature conditions. It is lead free and RoHS compliant, with a maximum charge current of 3A and an output voltage of 5.5V.
Similar Components
TPS5450DDAR
5A, 500kHz step-down DC/DC converter with adjustable output voltage from 1.22V to 31V. Features a wide input voltage range of 5.5V to 36V and a maximum output current of 5A. Operates efficiently up to 90% and is housed in a compact 8-pin HSOP PowerPAD package for surface mounting. This RoHS compliant component offers a broad operating temperature range of -40°C to 125°C.
LM2677S-ADJ/NOPB
5A Step-Down DC-DC Controller, Adj Output, 40V In, TO-263
LM2596
12V fixed output, 3A step-down regulator with a 4.5V to 40V input range. This power management IC features a low component count and 90% efficiency. Packaged in a TO-263 surface mount case, it operates from -40°C to 125°C. The regulator offers a positive, single output configuration.
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
TPS5430
Automotive 3A DC/DC buck converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, 500kHz fixed frequency operation, and up to 95% efficiency. This surface mount component is housed in an 8-SO PowerPAD package, operating from -40°C to 125°C. It offers a single adjustable output and is RoHS compliant.
TPS61040DBVR
Boost DC-DC converter with adjustable output voltage from 1.8V to 28V. Features a 1MHz operating frequency, 86% efficiency, and supports input voltages from 1.8V to 6V. Delivers up to 400mA output current with a high-level output current of 90mA. Packaged in a 5-pin SOT-23, this RoHS compliant component operates from -40°C to 85°C.
About BQ24295RGER
The Texas Instruments BQ24295RGER Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The BQ24295RGER is a power management IC with a maximum operating temperature of -40°C to 85°C and a maximum supply voltage of 6.2V. It features I2C and USB interfaces and is packaged in a VQFN-24 package. The device provides fault protection against over current, over voltage, and over temperature conditions. It is lead free and RoHS compliant, with a maximum charge current of 3A and an output voltage of 5.5V.. Key parameters include Battery Pack Voltage: 4.4V, Contact Plating: Gold, Fault Protection: Over Current, Over Voltage, Over Temperature, Interface: I2C, USB, and Lead Free: Lead Free. BQ24295RGER is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about BQ24295RGER specifications
Click to ask a quick question:
Parameters
| Battery Pack Voltage | 4.4V |
| Contact Plating | Gold |
| Fault Protection | Over Current, Over Voltage, Over Temperature |
| Interface | I2C, USB |
| Lead Free | Lead Free |
| Max Charge Current | 3A |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 6.2V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 3A |
| Output Voltage | 5.5V |
| Package/Case | VQFN |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Weight | 0.001926oz |
