TPS62130RGTR

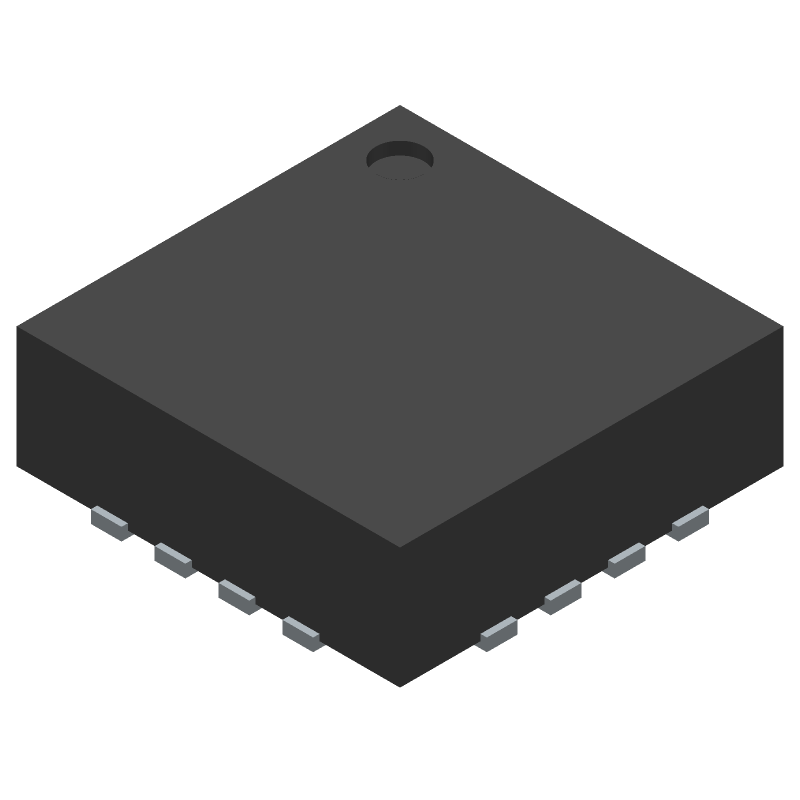

3A Step-Down Converter, featuring DCS-Control™ technology, operates from a 3V to 17V input range with a maximum output current of 3A. This power management IC offers an adjustable output voltage from 900mV up to 6V. The synchronous rectifier design ensures high efficiency. Packaged in a compact 3x3mm QFN with a height of 1mm, it operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
Similar Components
MC33063
1.5-A boost, buck, inverting switching regulator, operation from -40°C to 85°C 8-SOIC -40 to 85
LM2576S-ADJ/NOPB
Adjustable DC-DC Conv, 3A, 40V In, 37V Out, TO-263
TL431AIDBZR
Adjustable precision shunt regulator, SOT-23 package, offering an output voltage range from 2.495V to 36V with a 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates across a wide temperature range of -40°C to 125°C. This RoHS compliant component requires a minimum cathode current of 700µA.
TPS54331DR
3A, 570kHz step-down converter with adjustable output voltage from 800mV to 25V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 3A. Operates with a quiescent current of 110uA and includes Eco-mode for efficiency. Packaged in an 8-SOIC (D) case with dimensions of 5mm x 4mm x 1.58mm, this RoHS compliant component supports an operating temperature range of -40°C to 150°C.
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
LM7815
Positive fixed 15V linear voltage regulator, delivering 1A output current with 2% accuracy. Features a 2V dropout voltage and a maximum input voltage of 35V, operating from 17.7V minimum input. This through-hole component is housed in a TO-220 package, suitable for applications with ambient temperatures from 0°C to 125°C. Offers 70dB power supply rejection ratio and 8mA quiescent current.
About TPS62130RGTR
The Texas Instruments TPS62130RGTR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 3A Step-Down Converter, featuring DCS-Control™ technology, operates from a 3V to 17V input range with a maximum output current of 3A. This power management IC offers an adjustable output voltage from 900mV up to 6V. The synchronous rectifier design ensures high efficiency. Packaged in a compact 3x3mm QFN with a height of 1mm, it operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.. Key parameters include Height: 1mm, Lead Free: Lead Free, Length: 3mm, Max Input Voltage: 17V, and Max Operating Temperature: 125°C. TPS62130RGTR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS62130RGTR specifications
Click to ask a quick question:
Parameters
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 17V |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Output Voltage | 6V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 900mV |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 17V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package/Case | QFN |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quest | 2,40011——$4.7784——View offer |
| Quiescent Current | 17uA |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | DCS-Control™ |
| Synchronous Rectifier | Yes |
| Thickness | 900um |
| Width | 3mm |
