TPS563200DDCR

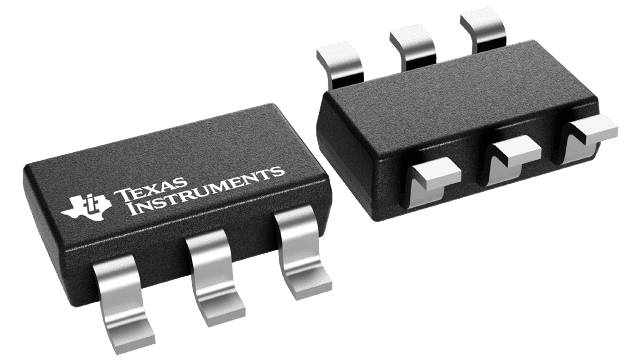

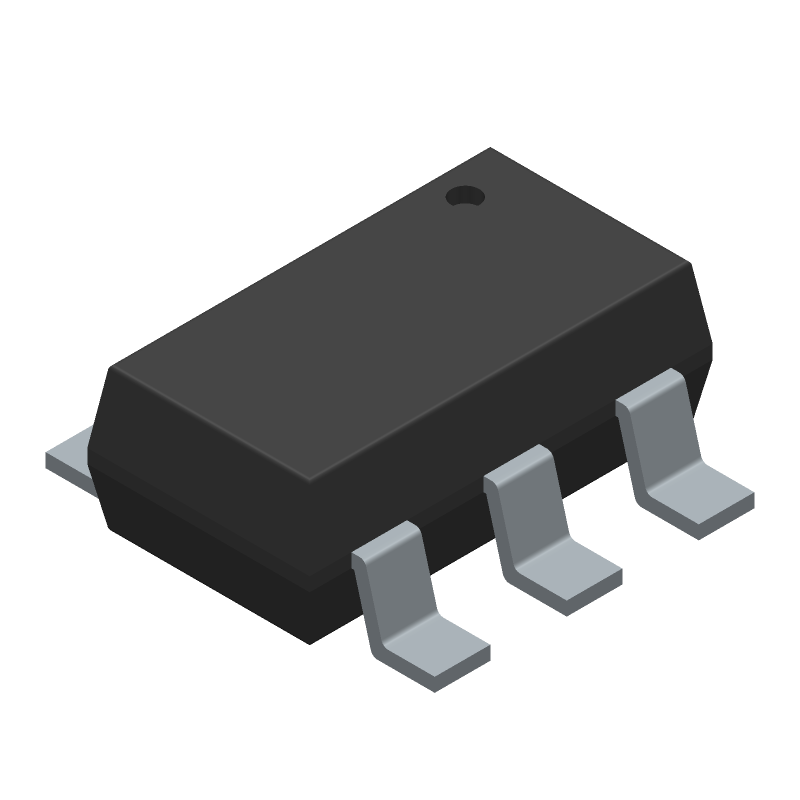

Synchronous step-down regulator with 17V maximum input voltage and 3A maximum output current. Features adjustable output voltage from 760mV to 7V, a single positive output, and operates across a -40°C to 125°C temperature range. This surface mount component is packaged in a SOT-23-6, includes advanced Eco-mode™ technology, and is RoHS compliant.
Similar Components
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
LM1117DT-ADJ/NOPB
800mA Adj LDO, 15V In, 1.2V Dropout, 1% Acc, TO-252
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
LM2587
Adjustable 5A DC-DC boost regulator with a wide input voltage range of 4V to 40V. Features a maximum output voltage of 60V and operates at a 115kHz switching frequency, achieving up to 90% efficiency. This surface mount component, housed in a TO-263 package, supports a maximum output current of 5A and is designed for operation between -40°C and 125°C.
BQ25601RTWR
The BQ25601RTWR is an industrial-grade power management IC with 24 terminals in a quad configuration. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 3.9V and 13.5V. The device is packaged in a 4mm x 4mm HVQCCN package. It is a single-function device with two channels.
LM7815CT/NOPB
15V 1A Positive Linear Voltage Regulator, TO-220
About TPS563200DDCR
The Texas Instruments TPS563200DDCR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Synchronous step-down regulator with 17V maximum input voltage and 3A maximum output current. Features adjustable output voltage from 760mV to 7V, a single positive output, and operates across a -40°C to 125°C temperature range. This surface mount component is packaged in a SOT-23-6, includes advanced Eco-mode™ technology, and is RoHS compliant.. Key parameters include Lead Free: Lead Free, Max Input Voltage: 17V, Max Operating Temperature: 125°C, Max Output Current: 3A, and Max Output Voltage: 7V. TPS563200DDCR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS563200DDCR specifications
Click to ask a quick question:
Parameters
| Lead Free | Lead Free |
| Max Input Voltage | 17V |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Output Voltage | 7V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 760mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 17V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 7V |
| Package/Case | SOT-23-6 |
| Packaging | Tape and Reel |
| Quest | 2,24589———$0.725—View offer |
| Quiescent Current | 190uA |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | D-CAP2™, Eco-Mode™ |
| Synchronous Rectifier | Yes |
