TLV70433DBVR

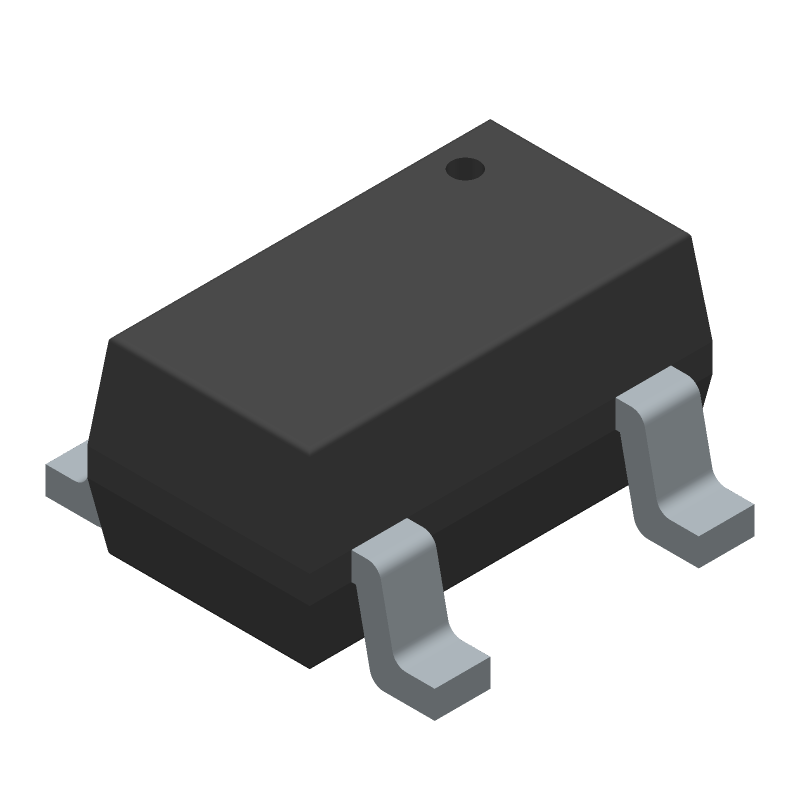

Ultra-low-IQ, positive linear voltage regulator, 150mA output current, 3.3V fixed output voltage. Features a 2.5V to 24V input voltage range and 850mV dropout voltage. Offers 2% accuracy and a quiescent current of 3µA. Packaged in a 5-SOT-23, operating from -40°C to 125°C. RoHS compliant.
Similar Components
TL431ACLP
Adjustable precision shunt regulator, a single-channel integrated circuit, offers a 2.495V reference voltage with 1% tolerance. It operates with a cathode current of 600µA and supports an output current up to 100mA, with a maximum output voltage of 36V. This component features a TO-92 package, a maximum input voltage of 37V, and a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
LM2675
1A, 12V fixed output step-down regulator with a 6.5V to 40V input voltage range. Features 94% efficiency and operates from -40°C to 125°C. Surface mountable in an 8-SOIC package, this power management IC offers low component count and is RoHS compliant.
LM2576S-ADJ/NOPB
Adjustable DC-DC Conv, 3A, 40V In, 37V Out, TO-263
LM1117
Adjustable positive linear voltage regulator, 800mA output current, 1.2V dropout voltage, and 1% output voltage accuracy. Features a maximum input voltage of 15V and an adjustable output voltage range from 1.25V to 13.8V. This surface mount component is housed in a TO-252 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
LM2577
Adjustable DC-DC converter with a 3A maximum output current. Features a wide input voltage range from 3.5V to 40V and an adjustable output voltage from 1.23V up to 60V. This boost converter offers up to 80% efficiency and operates within a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount, it supports a single positive output.
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
About TLV70433DBVR
The Texas Instruments TLV70433DBVR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Ultra-low-IQ, positive linear voltage regulator, 150mA output current, 3.3V fixed output voltage. Features a 2.5V to 24V input voltage range and 850mV dropout voltage. Offers 2% accuracy and a quiescent current of 3µA. Packaged in a 5-SOT-23, operating from -40°C to 125°C. RoHS compliant.. Key parameters include Accuracy: 2%, Dropout Voltage: 850mV, Lead Free: Lead Free, Max Input Voltage: 24V, and Max Operating Temperature: 125°C. TLV70433DBVR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TLV70433DBVR specifications
Click to ask a quick question:
Parameters
| Accuracy | 2% |
| Dropout Voltage | 850mV |
| Lead Free | Lead Free |
| Max Input Voltage | 24V |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Max Output Voltage | 3.3V |
| Max Power Dissipation | 470mW |
| Min Current Limit | 160mA |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.3V |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Adjustable, Fixed |
| Output Voltage | 3.3V |
| Package/Case | SOT-23-5 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
