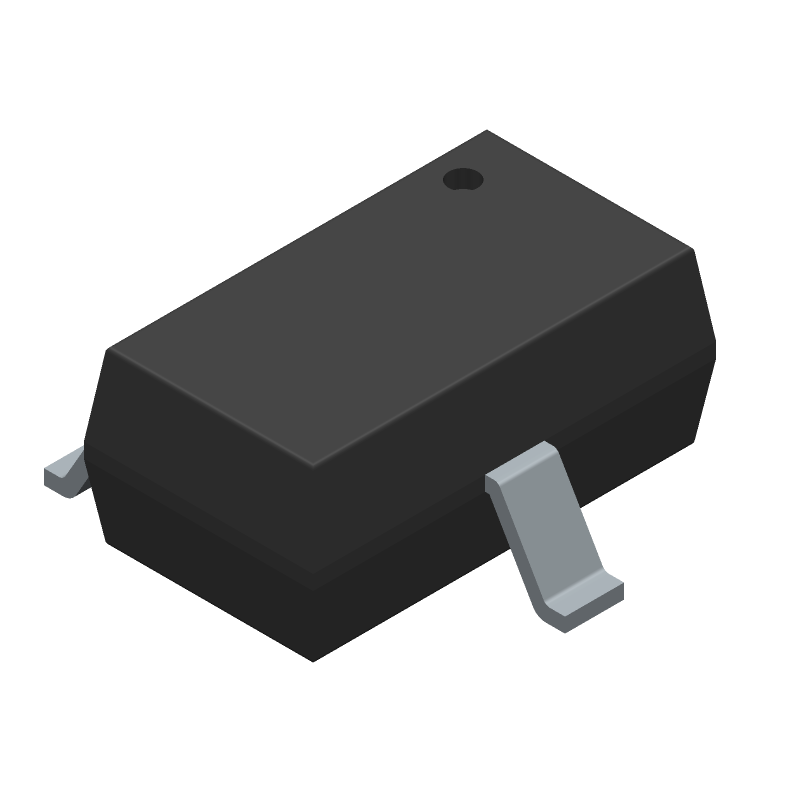

XC6206P332MR
Fixed Positive LDO Regulator, 3.3V, 0.68V Dropout, CMOS, PDSO3, SOT-23, 3 PIN
Similar Components
XC6206P332MR-G
The XC6206P332MR-G is a 3-terminal linear voltage regulator with a nominal output voltage of 3.3V and a maximum output current of 0.2A. It operates from an input voltage range of 1.8V to 6V and has a dropout voltage of 0.68V. The device is packaged in a SOT-23 package, which is antimony and halogen free, RoHS compliant, and has 3 pins. The operating temperature range is not specified in the provided data.
HT7550-A
Analog Circuit
MP4560DN-LF-Z
Switching Regulator, Current-mode, 4.7A, 1300kHz Switching Freq-Max, PDSO8, ROHS COMPLIANT, MS-012BA, SOIC-8
LM7909CT
-9V 1A Negative LDO, TO-220, Through Hole
MP24943DN-LF-Z
Switching Regulator, Current-mode, 8A, PDSO8, ROHS COMPLIANT, MS-012BA, SOIC-8
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
About XC6206P332MR
The Torex XC6206P332MR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fixed Positive LDO Regulator, 3.3V, 0.68V Dropout, CMOS, PDSO3, SOT-23, 3 PIN. Key parameters include Dropout Voltage1-Max: 0.68, Eccn Code: EAR99, HTS Code: 8542.39.00.01, Input Voltage-Max: 6, and Input Voltage-Min: 1.8. XC6206P332MR is manufactured by Torex as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Torex
- Category
- Power Supplies
Ask AI Assistant
Ask questions about XC6206P332MR specifications
Click to ask a quick question:
Parameters
| Dropout Voltage1-Max | 0.68 |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Input Voltage-Max | 6 |
| Input Voltage-Min | 1.8 |
| JEDEC Package Code | R-PDSO-G3 |
| Length | 2.9 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Output Current1-Max | 0.2 |
| Output Voltage1-Max | 3.366 |
| Output Voltage1-Min | 3.234 |
| Output Voltage1-Nom | 3.3 |
| Pin Count | 3 |
| REACH | Compliant |
| RoHS | Yes |
| Terminal Position | DUAL |
| Width | 1.6 |
