SN74LVC8T245PWR

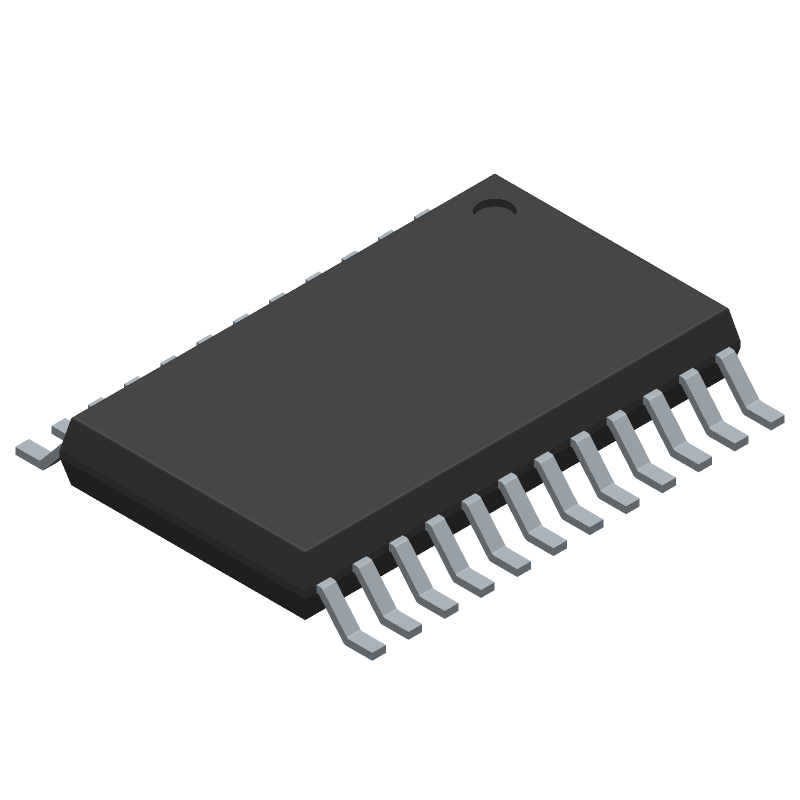

8-bit bidirectional voltage level translator featuring CMOS technology and 3-state outputs. Supports a data rate of 500Mbps with a propagation delay of 32.2ns. Operates with a supply voltage range of 1.65V to 5.5V, ideal for 3.3V systems. Packaged in a 24-pin TSSOP for surface mounting, this RoHS compliant component offers non-inverting logic.
Similar Components
DRV8833PW
The DRV8833PW is a TSSOP-16 packaged motor driver IC with a parallel interface, designed to operate within a temperature range of -40°C to 85°C. It features a maximum output current of 2A and is RoHS compliant. The device is packaged in a lead-free TSSOP-16 package and is available in quantities of 90, packaged in rail/Tube packaging.
LM555
Single channel timer IC with a 100kHz frequency capability, operating from a 4.5V to 16V supply. Features include 200mA output current, 1.18W power dissipation, and a 0°C to 70°C operating temperature range. This lead-free, RoHS compliant component is housed in an 8-pin PDIP through-hole package.
CD4001BE
CMOS NOR gate IC featuring four independent 2-input NOR elements. This integrated circuit utilizes push-pull output stages and operates within a wide temperature range of -55°C to 125°C. Housed in a 14-pin PDIP plastic dual in-line package with through-hole mounting, it offers a 2.54mm pin pitch and conforms to the MS-001AA Jedec standard.
OPA1612AIDR
Dual-channel, mono Class-AB audio amplifier IC featuring a 40MHz bandwidth and 130dB voltage gain. Offers a 27V/µs slew rate and 62mA output current per channel, operating from a 2.25V to 18V dual supply. This lead-free, RoHS compliant component boasts a 110dB common mode rejection ratio and 100µV input offset voltage, ideal for high-fidelity audio applications. Packaged in an 8-pin SOIC for tape and reel distribution.
TL074CN
Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and a 200pA input bias current. Designed for dual supply operation from ±3.5V to ±18V, it boasts a 106dB voltage gain. The component is housed in a 14-PDIP package and operates across a wide temperature range of -40°C to 85°C.
CD40174BM
CMOS Hex D-Type Flip-Flop, 16MHz, 18V, SOIC
About SN74LVC8T245PWR
The Texas Instruments SN74LVC8T245PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-bit bidirectional voltage level translator featuring CMOS technology and 3-state outputs. Supports a data rate of 500Mbps with a propagation delay of 32.2ns. Operates with a supply voltage range of 1.65V to 5.5V, ideal for 3.3V systems. Packaged in a 24-pin TSSOP for surface mounting, this RoHS compliant component offers non-inverting logic.. Key parameters include Channel Type: Bidirectional, Data Rate: 500Mbps, Direction: Bidirectional, Height: 1.05mm, and High Level Output Current: -32mA. SN74LVC8T245PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SN74LVC8T245PWR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Data Rate | 500Mbps |
| Direction | Bidirectional |
| Height | 1.05mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 7.9mm |
| Logic Function | Transceiver, Translator |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 3.3V |
| Output Type | 3-STATE |
| Package/Case | TSSOP |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 32.2ns |
| Quest | 327—$1.65———View offer |
| Quiescent Current | 15uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 32.2ns |
| Weight | 0.003157oz |
| Width | 4.5mm |
